PROCET PT-PSE105GBS-D-10 User Manual

PT-PSE���GBS-D-��
Ｕｓｅｒ Ｍａｎｕａｌ
ＷＷＷ．ＰＲＯＣＥＴＰＯＥ．ＣＯＭ
Ｏｖｅｒｖｉｅｗ
PT-PSE105GBS-D-10 is a single-port media converter with PoE function. The single PoE output
port delivers 1.75A up to 95W(max) power for remote PDs over 4 pairs. Equipped detecting chip
inside which will make the PoE identification handshake with IEEE802.3af/at/bt PDs. Such as PTZ
cameras, wireless APs, base stations, and other PoE-powered devices which need high power
watts. Protecting non-PoE powered devices.
RJ45 port supports 100/1000Mbps, 2.5G/5G/10GbE NBase-T, while the fiber slot only supports
10GE SFP+ of optical module. Enclosed in an IP40 high-impact metal case with a DIN Rail mount
bracket, designed for indoor use but can work outdoors by covering it with a waterproof case. It
works with an input voltage of 50-57Vdc and operates under -40°C to +65°C. For planning
purposes, the effective distance is 100 meters over Cat6 cables.
Ａｐｐｅａｒａｎｃｅ
1 Ｐｒｏｄｕｃｔ Ｄｉａｇｒａｍ
Ｄｅｃｌａｒａｔｉｏｎ
Copyright ©2023 Creative Lianjie Network
Technology Co.Ltd
This document belongs to PROCET company. It is not
allowed to reproduce and modify without the original
author's permission. It is PROCET's policy to improve its
products as new technology components, software , and
firmware at any time. PROCET, therefore, reserves the right
Please follow WEEE (Waste Electrical and Electronic
Equipment) disposal instructions for old electronic
products.Please do not dispose of the old product in your
general household waste bin.
�
�
�
�
�
1．ＤＣ Ｐｏｗｅｒ Ｉｎｄｉｃａｔｏｒ
2．ＰｏＥ Ｏｕｐｕｔ Ｐｏｒｔ
3．ＳＦＰ Ｉｎｐｕｔ Ｐｏｒｔ
4.Ｄａｔａ Ｉｎｄｉｃａｔｏｒ
5.ＰｏＥ Ｌｏａｄ Ｉｎｄｉｃａｔｏｒ
�
6.ＤＣ Ｉｎｐｕｔ ｐｏｒｔ
�
7.ＤＩＮ Ｒａｉｌ Ｍｏｕｎｔｉｎｇ
Ｂｒａｃｋｅｔ
�
8.ＧＮＤ Ｔｅｒｍｉｎａｌ
All rights reserved.
to change specifications without prior notice.
The symbol indicates that the product should not be
discarded as unsorted waste but must be sent to separate
collection facilities for recovery and recycling.
��.� MM
２
��.� MM

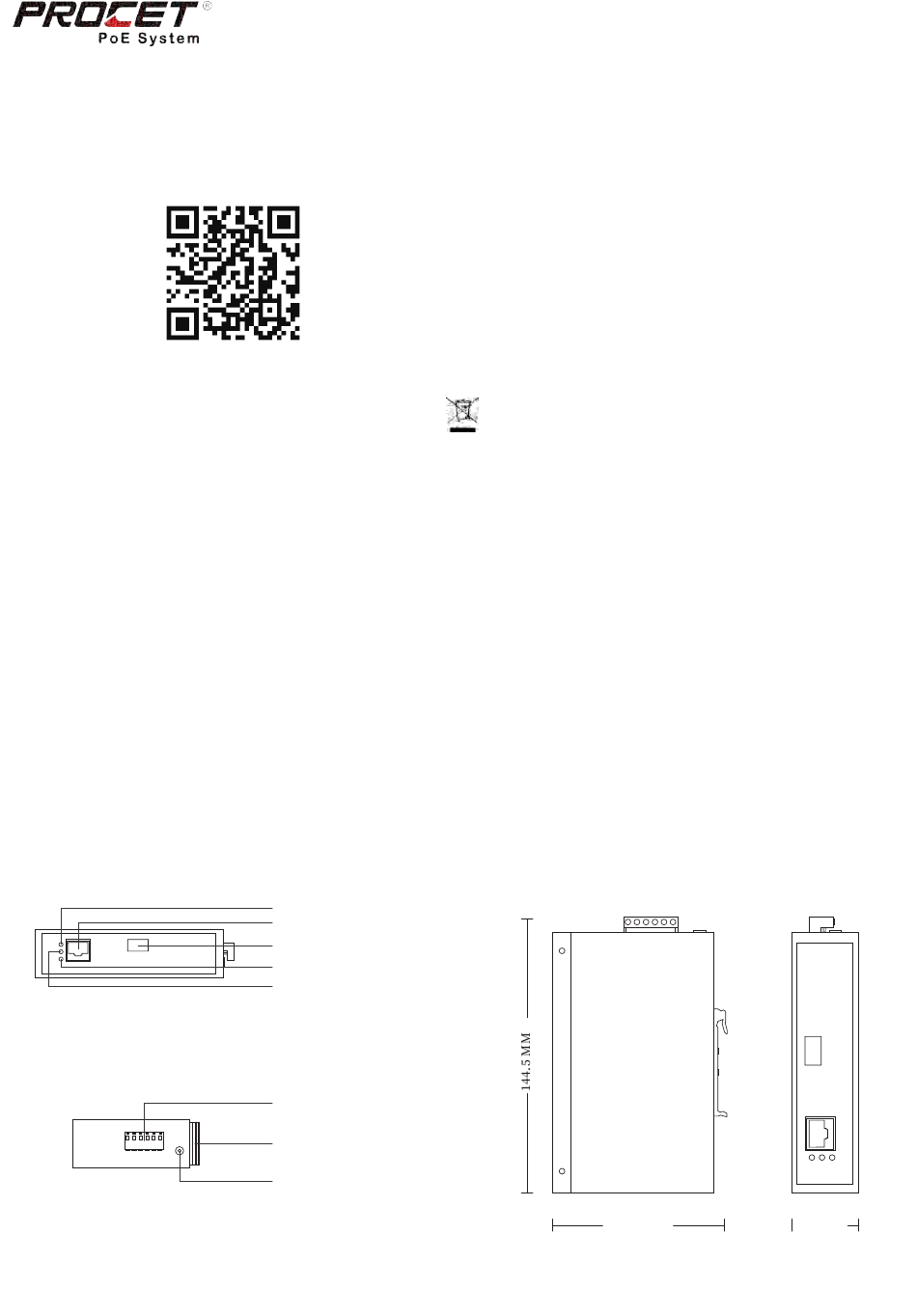

Dimensions
