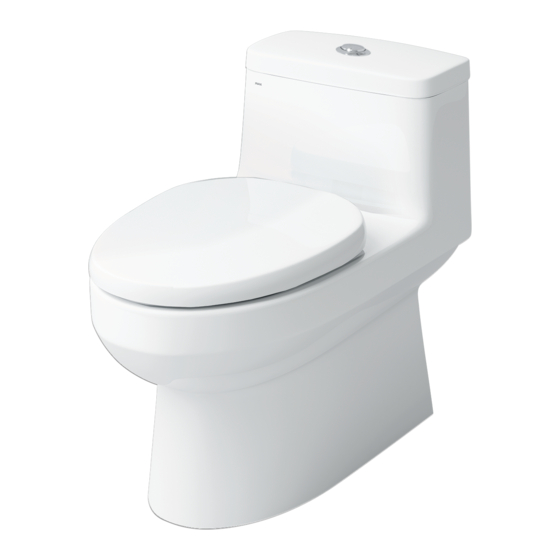

Bàn cầu một khối/ One piece toilet
HƯỚNG DẪN LẮP ĐẶT VÀ SỬ DỤNG/
INSTALLATION MANUAL
AC-939VN
AC-939VN-2
Xin cảm ơn Quý khách hàng đã tin dùng sản phẩm thiết bị vệ sinh INAX. Hãy đọc kỹ hướng dẫn lắp đặt để lắp đặt đúng. Kiểm tra, vận hành
thử sau lắp đặt. Trao hướng dẫn lắp đặt và sử dụng này cho khách hàng và giải thích cho khách hàng phương thức vận hành./
Thank you for selecting INAX sanitary ware. Please read these instructions carefully to ensure this product is installed properly and test
the product after installation. Customers are provided with this installation instruction and explanation of how the product works.
x1
x1
x1
A-703-8
741
Chi tiết phụ kiện/ Detail parts
Chi tiết phụ kiện/ Detail parts
AC-939VN
Nội địa/ Domestic
Xuất khẩu/ Export
Van khóa
Van khóa chữ T/
Angle valve
T-valve

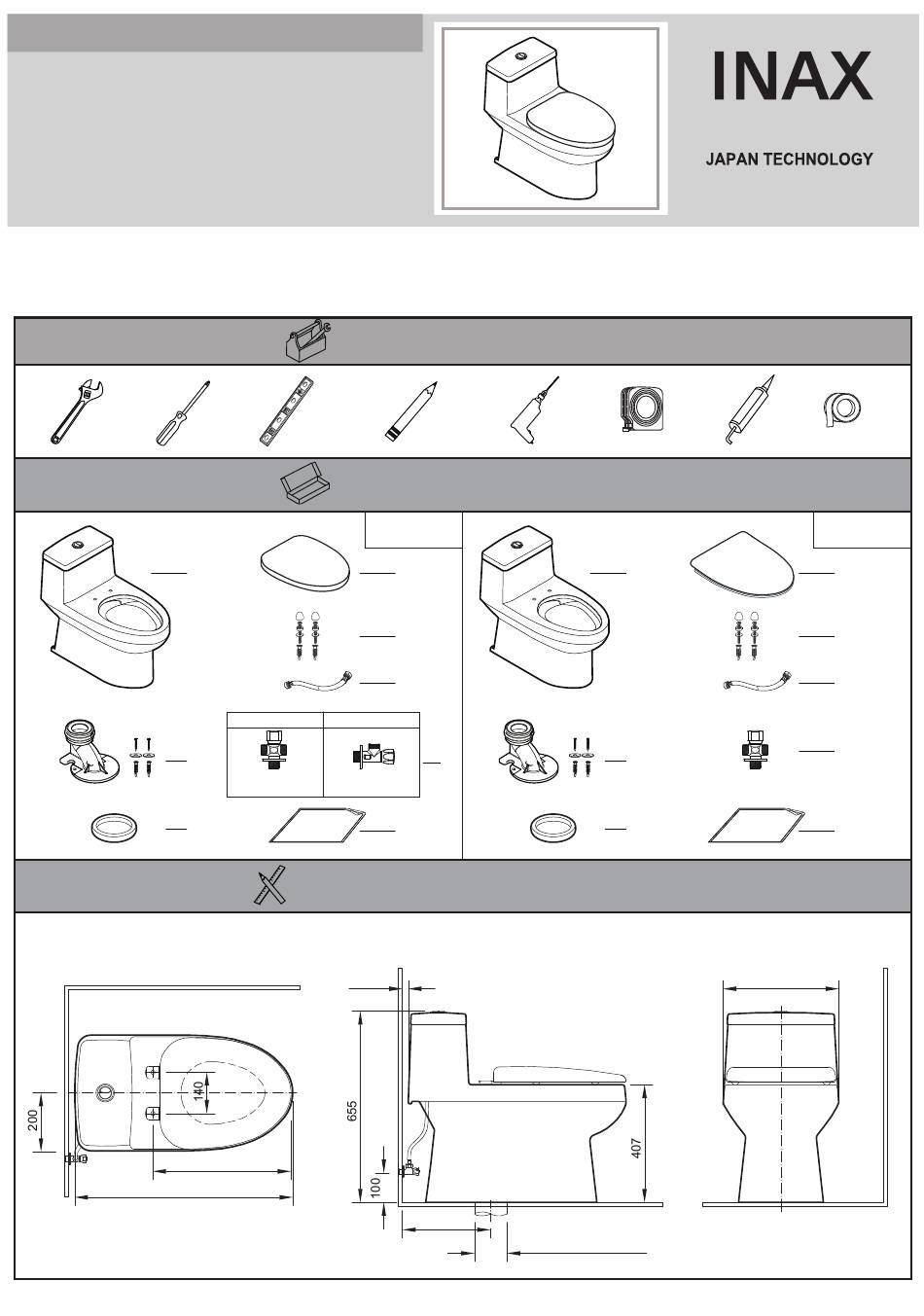

Bản vẽ lắp đặt / Installation drawing
24
470
x1
x1
x1
x1
x1
A-703-8
300
Ống thải chờ Ø110
Drainage pine Ø110
- 1 -
ISO 9001:2015
ISO 14001:2015
x1
x1
x1
393
AC-939VN-2
x1
x1
x1
x1
x1
Đơn vị : mm
Unit: mm
