Carrier 58VCA Service And Maintenance Instructions

HEATING & COOLING
58VCA
58VUA
Variable-Speed Gas-Fired Condensing Furnaces
Service and Maintenance Instructions
For Sizes 060-100. Series 100
NOTE;
Read the entire instruction manual before starting the
installation.
SAFETY CONSIDERATIONS
Installing and servicing heating equipment can be hazardous
due to gas and electrical components. Only trained and qualified
personnel should install, repair, or service heating equipment.
Untrained personnel can perform basic maintenance functions
such as cleaning and replacing air filters. All other operations must
be performed by trained service personnel. When working on
heating equipment, observe precautions in the literature, tags, and
labels attached to or shipped with the unit and other safety
precautions that may apply.
Follow all safety codes, including NFPA 54/ANSI Z223.1-1988,
National Fuel Gas Code. Wear safety glasses and work gloves.
Have a fire extinguisher available during start-up and adjustment
procedures and service calls.
Recognize safety information. This is the safety-alert symbol ^ .
When you see this symbol on the unit and in instructions or
manuals, be alert to the potential for personal injury.
Understand the signal word —DANGER, WARNING, or CAU¬
TION. These words are used with the safety-alert symbol. DAN¬
GER identifies the most serious hazards which
will
result in severe
personal injury or death. WARNING signifies hazards that
could
result in personal injury or death. CAUTION is used to identify
unsafe practices, which
would
result in minor personal injury or
product and property damage.
CARE AND MAINTENANCE
For continuing high performance and to minimize possible equip¬
ment failure, it is essential that maintenance be performed annually
on this equipment. Consult your local dealer for maintenance and
the availability of a maintenance contract.

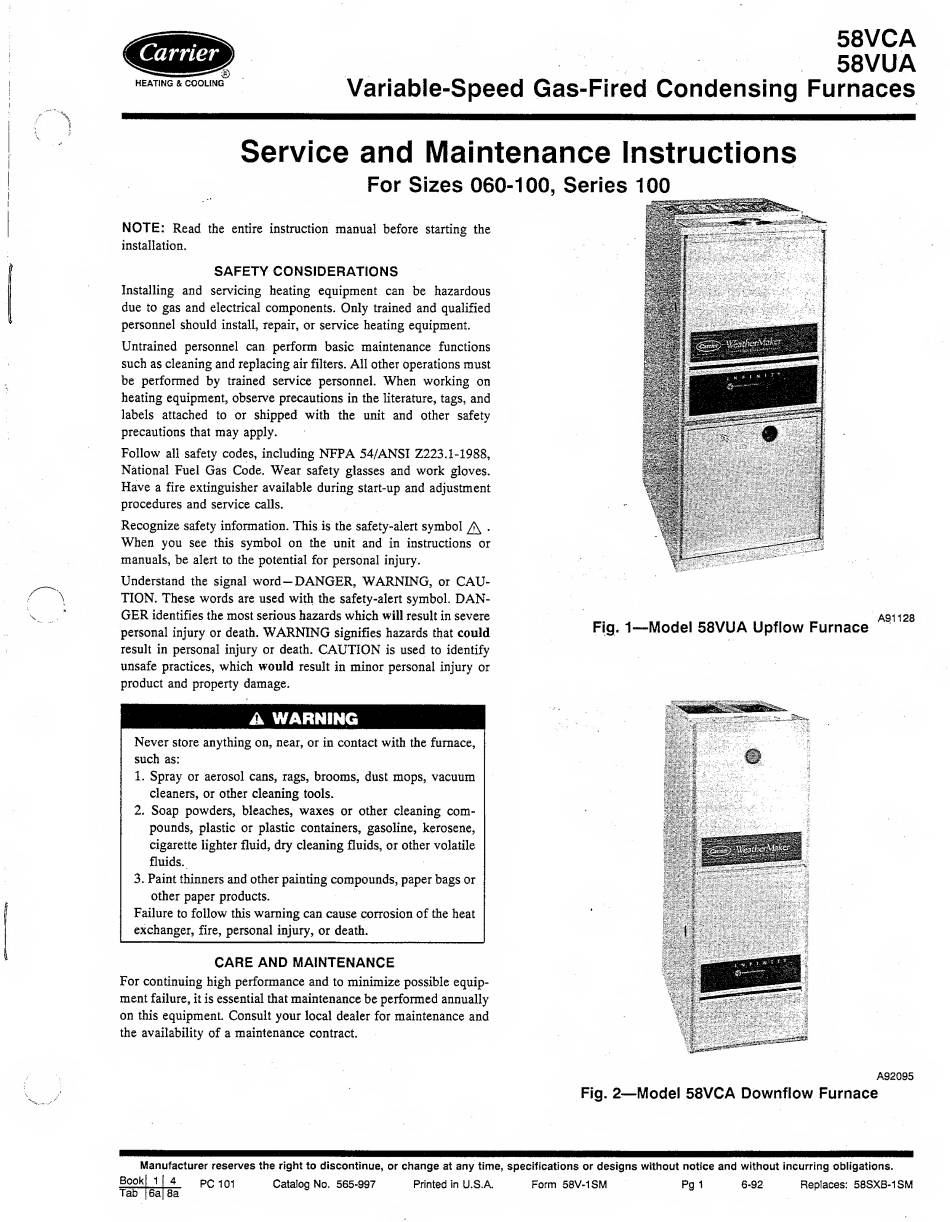

Fig. 1—Model 58VUA Upflow Furnace
A92095
Fig. 2—Model 58VCA Downflow Furnace
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
PC 101 Catalog No. 565-997 Printed in U.S.A. Form 58V-1SM Pg 1 6-92 Replaces: 58SXB-1SM
