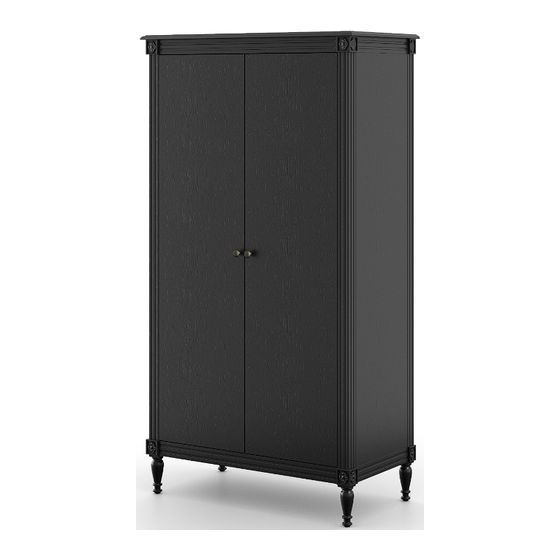

Casterton Wardrobe - Assembly Instruction
Product size
H185 x L52 x W100cm
If you require any advice during assembly,please call our customer service team on
01243 380600
Please retain these assembly instructions for future use
&
1
www.featherandblack.com
Produced in Viet Nam for Feather
Black
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for feather&black Casterton Wardrobe
Summary of Contents for feather&black Casterton Wardrobe
- Page 1 & feather black Casterton Wardrobe - Assembly Instruction Product size H185 x L52 x W100cm If you require any advice during assembly,please call our customer service team on 01243 380600 Please retain these assembly instructions for future use & www.featherandblack.com...
-
Page 2: Before You Start
& feather black Casterton Wardrobe - Assembly Instruction Before you start Thank you for purchasing this Casterton 5 Drawer Number of people required to assemble Chest. One people to assemble the product and two people to lift in to position. - Page 3 & feather black Casterton Wardrobe - Assembly Instruction Components supplied (not actual size) Qty : x 1 pc (5) : Back panel Qty : x 1 pc (1) : Top Qty : x 1 pc Qty : x 2 pcs...
- Page 4 & feather black Casterton Wardrobe - Assembly Instruction Fixtures and fittings supplied (not actual size) (C) : Allen Key (A) : Allen Bolt (B) : Allen Bolt M6x30mm M6x20mm Qty : x 1 Qty : x 10 Qty : x 14 (D) : Flat Washer Bolt Ø4 x 20mm...
- Page 5 & feather black Casterton Wardrobe - Assembly Instruction Step 1: Use bolt (A) to fix the Right side panel (3) and Left side panel (2) onto the Base (4) by using Allen Key (C). & www.featherandblack.com Produced in Viet Nam for Feather...
- Page 6 & feather black Casterton Wardrobe - Assembly Instruction Step 2: Use bolt (A) to fix the Top (1) onto Right side panel (3) and Left side panel (2) by using Allen Key (C). Step 3: Insert the Hanging rail (7) in Wardrobe.
- Page 7 & feather black Casterton Wardrobe - Assembly Instruction Step 4: Use bolt (B) to insert the Back panel (5) in Wardrobe by using Allen Key (C). & www.featherandblack.com Produced in Viet Nam for Feather Black...
- Page 8 & feather black Casterton Wardrobe - Assembly Instruction & www.featherandblack.com Produced in Viet Nam for Feather Black...
- Page 9 & feather black Casterton Wardrobe - Assembly Instruction & www.featherandblack.com Produced in Viet Nam for Feather Black...
- Page 10 & feather black Casterton Wardrobe - Assembly Instruction Step 8: & www.featherandblack.com Produced in Viet Nam for Feather Black...
- Page 11 & feather black Casterton Wardrobe - Assembly Instruction Step 9: Wall & www.featherandblack.com Produced in Viet Nam for Feather Black...
