*Upflow Discharge
*Air Handler is factory ready for Upflow & Horizontal Right Discharge Application for 3*4*5 as shown.
*Air Handler is factory ready for Upflow & Horizontal Left Discharge Application for 2 as shown.

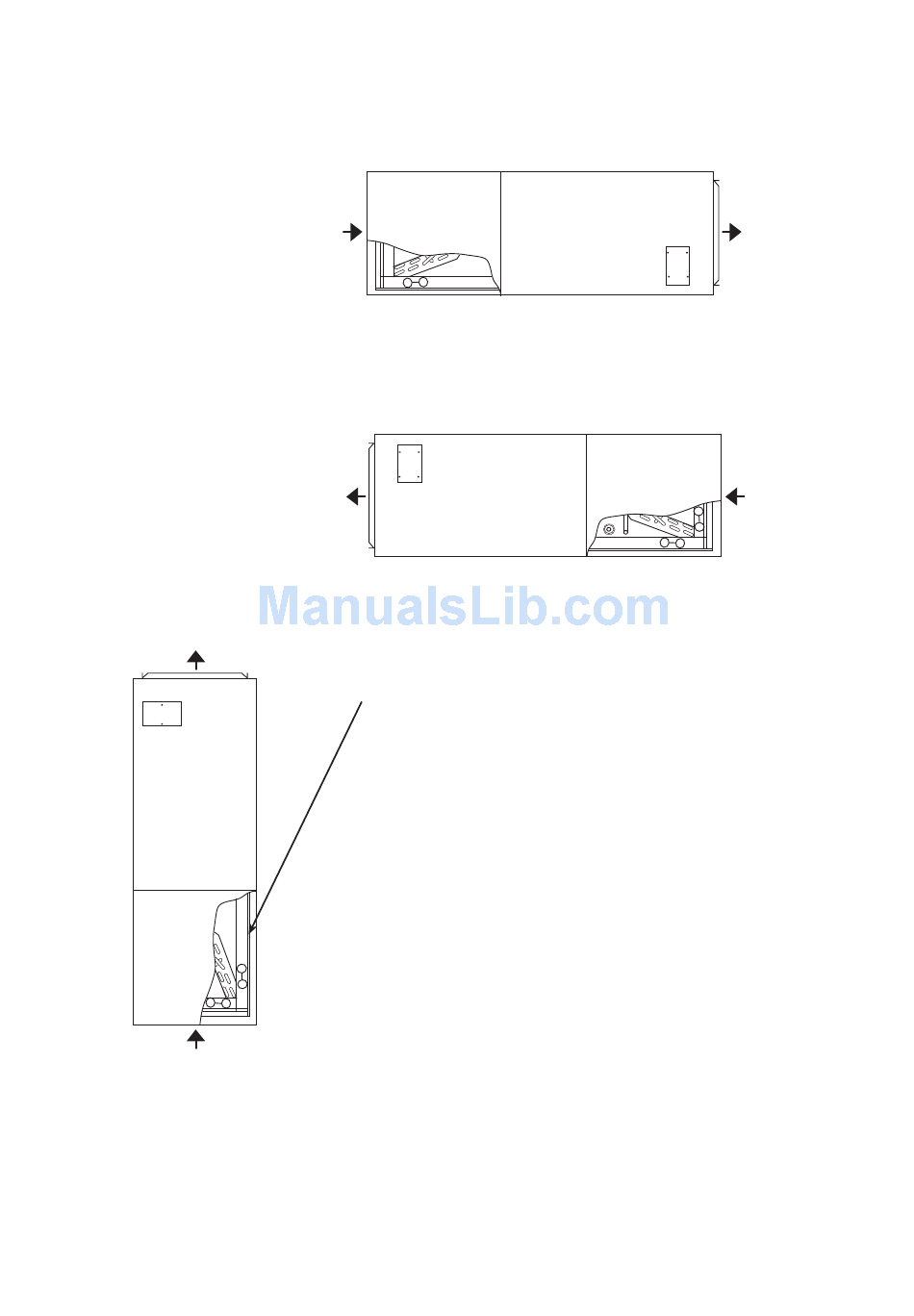

AIR FLOW ORIENTATION

*Horizontal Right Discharge
Tube and Drain conn. front
Horizontal Left Discharge
Tube and Drain conn. front
(see page 6)
Important:
Remove the horizontal pan when
unit is installed in unconditioned
i.e. (Garage, Attic ) application,
or downflow applications, and
install insulation kit on vertical
( donut shape ) drain pan.
7
