Summary of Contents for Fire Boltt BSW046

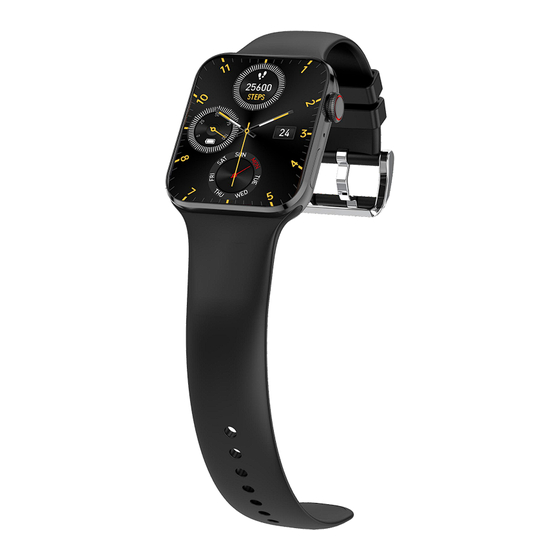

- Page 1 BSW046 Smart Watch User Manual...
- Page 3 Downloading and connecting of smart watch with Da Fit APP 1.Download and install Da Fit APP. 2.Scan QR code with mobile phone to down- load APP. 3.For IOS system, select APP Store,search for Da Fit App. Da Fit Android system, select Google Play to download and install Da Fit App.
- Page 4 Connect smart watch with Da Fit APP Fulfill your data when first Click “To ADD” to search use Da Fit App Click on your device in the Successfully connected with APP If watch is connected with APP successfully, the Bluetooth icon in control center will light up...
- Page 5 Bluetooth Calling Function As BSW046 is a Bluetooth Calling watch,the user can make phone calls by using the watch. User does not have to take the phone out to dial number or receive a call.And user can also check the calling record and contacts from the watch.You just need to keep the connection...
- Page 6 After connecting with APP, it will remind you to connect phone BT call function by connecting mobile phone bluetooth in phone setting menu Please check your iOS After connecting with iOS bluetooth setting list to bluetooth,it will show search and connect “Audio-FireBoltt 046”...
- Page 7 Then try to connect with phone bluetooth as above steps For Android If the watch connected with After click to pair,then APP successfully,APP will you will see the device display “Pair with Audio- name “Audio-Fire Fire Boltt046 ?” Please Boltt046” is in phone pair it bluetooth list Step 2: Go back to watch and enter Phone...
- Page 8 Phone Call Interface Dial Pad Make a call Check phone call records Call Records Set phone contacts via APP Phone contacts in watch...
- Page 9 BSW046 Featured Functions BSW046 is a special smart watch with many featured functions such as 100+ In-built Sports Mode,10 In-built Watch Faces,Always-on Screen,Voice Assistant,Split Screen,3 in 1 Music Player and Add Components. Please check the following steps to check how to use the featured functions of BSW046.
- Page 10 Dance(8 Sport Modes) Square Dancing,Belly Dance,Ballet,Zumba, Latin Dance,Street Dance,Folk Dance,Jazz Dance. Combat Sports(11 Sport Modes) Boxing,Wrestling,Martial Arts,Tai Chi,Muay Thai,Judo,Taekwondo,Karate,Kickboxing, Fencing,Kendo. Ball Sports(13 Sport Modes) Volleyball,Softball,Hockey,Table Tennis,Cricket, Handball,Squash,Billiards,Shuttlecock,Beach Soccer,Beach Volleyball,Sepak Takraw,Bowling. Winter Sports(8 Sport Modes) Ice Skating,Curling,Other Winter Sports, Snowmobile,Ice Hockey,Bobsleigh,Sledding, Skiing.
- Page 11 Add Sports Modes icon Add Sports Modes to Popular Part B - 10 In-built Sports Mode Press the screen for 3 seconds at the main interface or tap watch face function icon at all functions interface to enter into Watch Face Mode,there are 10 watch faces in-built for your selection.You can download the Watchface to watch and DIY watchface from...
- Page 12 Part C - Always-on Screen Swipe down from main interface to enter into “Control Center” and tap “Setting” icon to enter into setting list.And tap “Always-on Screen” to enter into “Always-on Screen” interface to set always-on screen function. If you turn on “Always-on” screen,there are two kinds of clock styles for your selection,Analog Clock and Digital Clock.
- Page 13 Date,Weather and enter into Steps function, Heart Rate Monitoring,Spo2,Sleep Date,Blood Pressure,Exercises Mode from here. Part F - 3 in 1 Music Player BSW046 smart watch supports Mobile music player,Local music player,TWS earbuds connection.You can select to play phone musics,local musics or connect with TWS earbuds to play local musics.
- Page 14 Tap menu icon to Watch Music 3 test musics select music play Mode in watch Mode playlist TWS mode Device List Device connected Searching device Adjust volume By tapping volume icon Part G - Add Components Swipe left from main interface to “Add Components”...
- Page 15 2. Light up button-Light up watch display. Part B - Charging Watch Battery And Heart Rate Sensor Protector BSW046 charger is a 4-pin magnetic charger. If you need to charge smart watch,please the 4-pin charger on the charging port of the smart watch.
-
Page 16: Functions Navigation
The battery life time depends on your usage of the smart watch.The below life time is only for your reference. There is a heart rate sensor protector on the heart rate sensor lens,you can take if off for better use. Functions Navigation The screen can be navigated by swiping left/right or swiping up/down. - Page 17 Part A - Control Center Swipe down to view watch control center. ● Bluetooth Reminder ● Vibration Setting ● Flash Light ● Theater Mode ● Brightness Setting ● Weather ● Settings Bluetooth Reminder: Instruct the bluetooth connection status. Do not disturb.If turn on,phone calls and notifications will silent.
- Page 18 Steps - You can check your activity data including steps data,calories data.7 days data will be remained.And swipe up to check more data. Sleep Monitoring - You need to wear the watch while sleeping.It will provide the hours slept and quality of sleep stats.Swipe up to check more data.
- Page 19 Blood Pressure Monitoring - The watch can test your blood-pressure.You can also tap on the page to start measuring.7 latest values will be remained.Swipe up to check more data. Spo2 Monitoring - The watch can test your Spo2 date.You can also tap on the page to start measuring.7 latest values will be remained.Swipe up to check more data.
- Page 20 Voice Assistant - Tap “Click” to use phone Voice Assistant.Please ensure the watch is connecting with phone bluetooth,before using Voice Assistant function. Weather Forecast - You can know the current weather and the forecast for tomorrow, this information is synced from your APP. Scroll up to see the forecast weather.
- Page 21 Part C - Main Functions You can add other main functions to the main function interfaces.The main functions includes: Breathing,Stopclock,Alarm,Shutter,Exercise Record,Flashlight,Calculator,Period,Timer, Message,Music Player. Breathing - Enter into breathing to take breath- ing and relax. Stopclock - This helps to track the time frame for any given activity.
- Page 22 Alarm - Set alarms and let your watch vibrate to remind you of the alarm. Shutter - After watch connecting with APP.Tap the shutter icon to remote control the camera of your phone to take photos. Exercise Record - You can check the exercise records in Exercise Record Mode.
- Page 23 Calculator - This new feature lets you access the calculator on the watch itself. Period - If you set Lady Period on Da Fit APP, watch will remind you to drink water based on what you set via Da Fit APP. Timer - This sets a preset timer for the user to track and given time line.
- Page 24 Music Player - BSW046 smart watch supports Mobile music player,Local music player,TWS earbuds connection.You can select to play phone musics,local musics or connect with TWS earbuds to play local musics. Settings - Swipe down from main interface to enter into Control Center and tap “Setting”...
- Page 25 Low Power Mode Setting Tap “Low Power Mode” to open or close Low Power Mode. Theater Mode If you tap to turn on the Theater Mode,the brightness will dim and vibration will shut. Phone Mode Setting Tap “Phone” to open or close bluetooth phone call function.
- Page 26 System Setting Tap “System” to restart watch,shut down watch or reset watch data. About Tap “About” to check watch version and QR Code. Watch Status Reminders Sedentary Reminder If you set Sedentary function on Da Fit APP, watch will remind you to move if you have not moved up for a long time.
- Page 27 Wearing Reminder Watch will remind to wear the watch well, when you do testings. Gold Achieved Reminder Watch will remind you the goal you set via Da Fit APP has been finished.
