Fire Boltt BSW029 User Manual

Hide thumbs Also See for BSW029:

Advertisement

Quick Links

Download this manual
BSW029
Smart Watch
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the BSW029 and is the answer not in the manual?

Questions and answers

Related Manuals for Fire Boltt BSW029

Summary of Contents for Fire Boltt BSW029

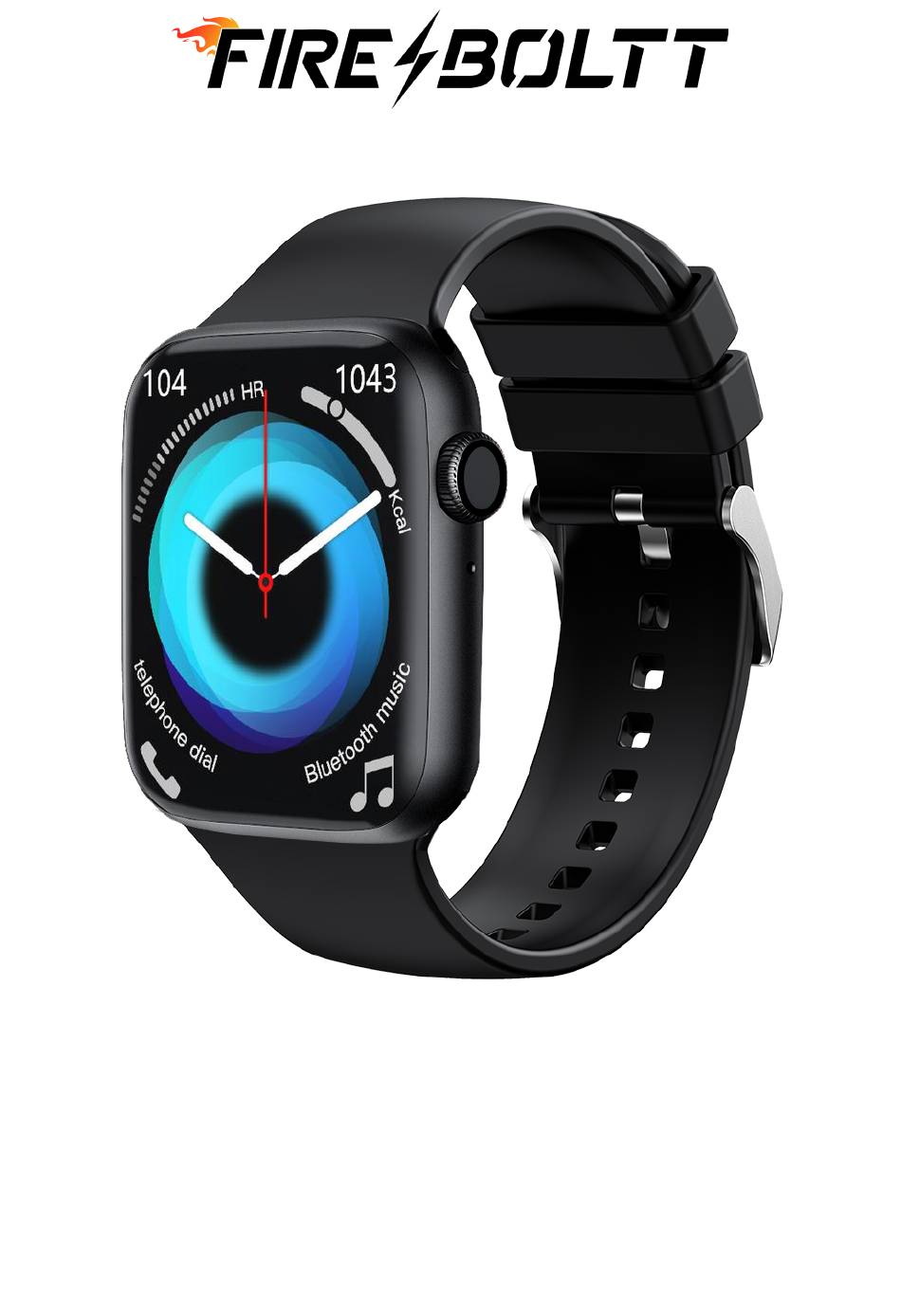

  • Page 1 BSW029 Smart Watch User Manual...
  • Page 2 Downloading and connecting of smart watch with Da Fit APP Download and install Da Fit APP Scan QR code with mobile phone to download APP. For IOS system, select APP Store, search for Da Fit App. Android system, select Google Play to download and install Da Fit App.
  • Page 3 Click on your device in the device list scanned. Connect it directly to Android system. The IOS system will show a Bluetooth pairing request and you can click on Bluetooth "Pairing" to confirm.
  • Page 4 Successfully connected...
  • Page 5 For both android & iOS click on Notifications Tab in the Dafit app Enable all the notifications for the ease of use...
  • Page 6 BLUETOOTH CALLING FUNCTION This watch comes with a special feature of Bluetooth calling. The user can make calls without having to open the phone. You can also view the call history of the watch. You need to keep the connection between the watch and the phone stable when using the Phone Call function.
  • Page 7 For iOS Switch on the bluetooth in the phone bluetooth settings and you shall see the available device as "AUDIO_BSW029" It shall show Connected...
  • Page 8 For Android Accept the Bluetooth Pairing Request Once accepted you can see the following screens saying - "Connected for calls"...
  • Page 9 Step 2: Go to the watch and swipe left to the features page and locate the dial pad function When you click on the dial pad you shall get this screen on your watch. Once you dial the number the call button on the right corner shall appear.
  • Page 10 Part B - How to disconnect To disconnect the bluetooth calling the user simply has to go to the phone's bluetooth setting and "unpair" the AUDIO_BSW029 device Part C - Add contacts You can add upto 8 contacts - Add the contacts from the Dafit App.
  • Page 11 Select the contacts you want to add The contacts will get added.
  • Page 12 Part D - Switch between Phone / Watch Switch Between Watch / Phone During an Active Call : If your watch is connected to the Phone via Bluetooth, all calls will come on the watch by default. If you want to change the call to the phone, during an active call, simply click on Handset earpiece icon to select it.
  • Page 13 Part E - Battery Advisory Battery The battery lasts for 3 to 5 days with bluetooth calling mode enabled. If the bluetooth calling mode is disabled then the battery can last for 7 days. On standby the battery can stay for as long as 15 days. Advisory- To conserve battery, It is advised to turn off the bluetooth when not in use.

  • Page 14: Functions Navigation

    Functions Navigation The screen can be navigated by sliding left/right or sliding up/down Control Center Swipe Swipe Down Swipe Swipe Left Left Swipe Swipe Right Right Split Screen Browser Smart Component Swipe Page Swipe Down Notifications...
  • Page 15 Watch Face Functions Navigation and Button Instructions The watch features a full touch control screen with a reflective display and one rotating button Functions Navigation The screen can be navigated by sliding left/right or sliding up/down By default, the watch face page displays, and on the watch face page, you can: Slide down to view watch settings.
  • Page 16 Slide right to view Split Screen Browser Slide left to view Steps, Heart Rate, Exercise, Phone...
  • Page 17 Touch Button Operations Short press from the side button To return to the watch face page from the first-level menu entry in the unlocked status Long press from the side button To turn on the watch in the power off status...
  • Page 18 Set Your Pin-Lock Swipe down into control center tap the lock icon to switch the Pin-Lock and set the Pin Unlock via Pin-Lock Swipe the Screen in any direction in the locked status to get the pin-lock page to be able to unlock the watch...
  • Page 19 Watch Wearing and Charging It is recommended to wear the watch with a moderate tightness at a distance two fingers far from your wrist to ensure that the optical heart rate monitor works properly Tip - Please wear the device a bit little tighter when using the heart rate monitor &...
  • Page 20 Use of Functions The watch has a lot of functions, these can be accessed by swiping up to the menu from the split screen. A short brief of the functions are as below: Steps- The watch automatically tracks the step taken on the screen.
  • Page 21 Oxygen Tracking (SPO2) - Tap the SPO2 page to start measuring. On the SPO2 page you can see the previous data. The value is only for reference, not for medical use Heart Rate - The watch will record your heart rate all day. You can also tap on the page to start measuring Dial Pad - The watch supports bluetooth calling i.e it enables you to make calls from the watch...
  • Page 22 Exercise - This feature comprises of 28 exercise modes. Track your fitness goals in a tap. You can view the following activities: Walking, Running, Cycling, Skipping, Badminton, Basketball, Football, Swimming, etc Contact- This function helps you to see the contacts saved in the watch Messages - This function helps you to keep a track of all notifications and messages from all social portals...
  • Page 23 Call Reset - This function helps to clean the call log in one touch Call Record- This function shows you the your call records in the watch About - This helps to know the device firmware an the app QR Code Menu Style - Choose how you want to access the menu - grid view or list view...
  • Page 24 AI Voice - Click the icon to wake up the phone smart assistant, and you can control the smartphone smart assistant through the watch voice Stopwatch - You can begin and close any time line and stop the watch. Timer - A countdown timer lets you count the time forward and allows the user to set goals and finish a particular event on time.
  • Page 25 Weather - You can know the current weather and the forecast for next 5 days, this information is synced from your app. Scroll Up to see the forecast weather. It will not be updated if the phone is disconnected for a long time. Camera - You can remote control the camera of your phone once the watch is connected with your device.
  • Page 26 Games - You can now even play games on your wrist. This feature allows you to play wonderful games. Find- You can now find your phone if the watch is connected to it via bluetooth Alarm - You can set 3 Alarm Clocks on the Da Fit App under the home screen, you can open and close it on the watch...
  • Page 27 Brightness - This function allows you to choose to adjust the brightness of the screen Reset - This will help to reset the watch by deleting all the existing stored memory or statistics Power Off - This will power off the device...

  • Page 28: Other Settings

    Replace the Watch Face on the App: Tap the Watch face settings entry in the "Profile" -> "BSW029" page, and then download and sync watch faces on the Watch Face Store. After that, the replacement is done...
  • Page 29 Such background processes could disconnect the watch and the App, and as a result no reminder will be received. See "Profile" -> "BSW029" -> "Run in background" settings for different mobile phone systems View Notifications When the watch receives a notification alert, it will vibrate to remind you and automatically display the notification content.
  • Page 30 In addition, when a weather alert is received, the watch will receive the alert as well. You may toggle on the weather alert switch in the "Profile" -> "BSW029" ->"Others" -> " Weather" page on the Da Fit App Watch Status Reminder...
  • Page 31 Idle alerts When you are sitting for a long time, the watch will vibrate to remind you to get up for a while. Before using this function, you need to enable Idle alerts by tapping "Profile" -> "Others"-> "Reminder to Move" and setting time for Sedentary alerts on the Da Fit App Goal Notifications When the number of steps reaches the set goal, the watch will...
  • Page 32 Watch Alarm Alert When the alarm on the mobile phone rings, the watch will vibrate and brigthen to remind you that the alarm is ringing. Before using this function, you need to enable Watch alarm alert by tapping "Profile" -> "Alarm" and setting the alarm fix time on the Da Fit App...

  • Page 33: Introduction To The Workout Function

    Introduction to the Workout Function Start Workouts There is one approach to starting a workout: Select a workout type in the Activity entry and enable it; The watch currently supports 28 workout modes: Walking, Running, Cycling, Skipping, Badminton, Basketball, Football, Swimming, Climbing, Tennis, Rugby, Golf, Yoga, Workout, Dancing, Baseball, Elliptical, Indoor Cycling, Free Training, Rowing, Outdoor Running, Skiing, Bowling, Dumbbell, Sit-Ups, On...
