Summary of Contents for Fire Boltt BSW053

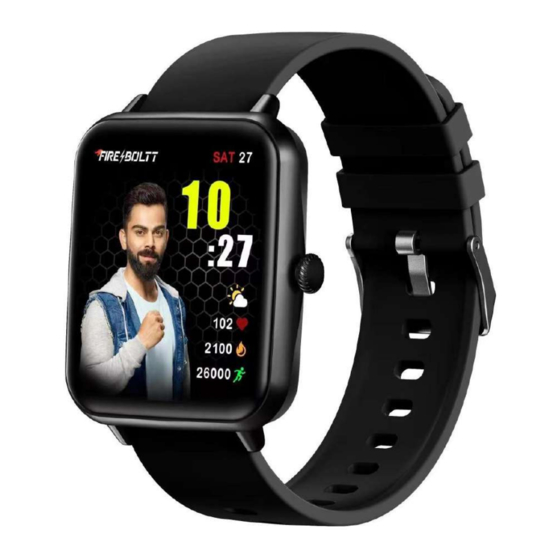

- Page 1 BSW053 Smart Watch User Manual...
- Page 2 Downloading and connecting of smart watch with Da Fit APP Download and install Da Fit APP Scan QR code with mobile phone to download APP. For IOS system, select APP Store, search for Da Fit App. Android system, select Google Play to download and install Da Fit App.
- Page 3 Click on your device in the device list scanned. Connect it directly to Android system. The IOS system will show a Bluetooth pairing request and you can click on Bluetooth "Pairing" to confirm.
- Page 4 Successfully connected...
- Page 5 For both android & iOS click on Notifications Tab in the Dafit app Enable all the notifications for the ease of use...
- Page 6 BLUETOOTH CALLING FUNCTION This watch comes with a special feature of Bluetooth calling. The user can make calls without having to open the phone. You can also view the call history of the watch. You need to keep the connection between the watch and the phone stable when using the Phone Call function.
- Page 7 For iOS Switch on the bluetooth in the phone bluetooth settings and you shall see the available device as "Audio_FB BSW053" It shall show Connected...
- Page 8 For Android Accept the Bluetooth Pairing Request...
- Page 9 Once accepted you can see the following screens saying - "Connected for calls"...
- Page 10 Step 2: Go to the watch and swipe left to the features page and locate the phone function After successfully connecting the bluetooth you will get this screen. Upon clicking on the Recent Call you can see the recent calls of your device When you click on the dial pad you shall get this screen on your watch.
- Page 11 + & - sign on the watch and disconnect the call. Part B - How to disconnect To disconnect the bluetooth calling the user simply has to go to the phone's bluetooth setting and "unpair" the Audio_FB BSW053 device...
- Page 12 Part C - Add contacts You can add upto 8 contacts - Add the contacts from the Dafit App. Go to "Favourite Contacts" and add contacts. The selected contacts will get synced to your watch. Click on Favorite Contact to add the contacts...
- Page 13 Select the contacts you want to add The contacts will get added.
- Page 14 Part D - Switch between Phone / Watch Switch Between Watch / Phone During an Active Call : If your watch is connected to the Phone via Bluetooth, all calls will come on the watch by default. If you want to change the call to the phone, during an active call, simply click on Handset earpiece icon to select it.
- Page 15 Part E - Battery Advisory Battery The battery lasts for 2 to 3 days with bluetooth calling mode enabled. On standby the battery can stay for as long as 5-7days. Advisory- To conserve battery, It is advised to turn off the bluetooth when not in use.
-
Page 16: Functions Navigation
Functions Navigation The screen can be navigated by sliding left/right or sliding up/down Control Center Swipe Swipe Down Swipe Swipe Left Left Swipe Swipe Right Right Smart Menu Smart Component Swipe Page Swipe Down List Menu... - Page 17 Watch Face Functions Navigation and Button Instructions The watch features a full touch control screen with a reflective display and one button Functions Navigation The screen can be navigated by sliding left/right or sliding up/down By default, the watch face page displays, and on the watch face page, you can: Slide down to view watch settings.
- Page 18 Slide right to view Smart Menu Slide left to view Smart Components. User can Add, Remove Component of their choice. User can add 10 components...
- Page 19 Touch Button Operations Short press from the side button To unlock the screen in the lock screen status To return to the watch face page from the first-level menu entry in the unlocked status Long press from the side button To turn on the watch in the power off status...
- Page 20 Watch Wearing and Charging It is recommended to wear the watch with a moderate tightness at a distance two fingers far from your wrist to ensure that the optical heart rate monitor works properly Tip - Please wear the device a bit little tighter when using the heart rate monitor &...
- Page 21 Use of Functions The watch has a lot of functions, these can be accessed by swiping up to the menu. A short brief of the functions are as below: Steps- The watch automatically tracks the step taken on the screen. Note: Your movement stats reset to 0 at midnight.
- Page 22 Oxygen Tracking (SPO2) - Tap the SPO2 page to start measuring. On the SPO2 page you can see the previous data. The value is only for reference, not for medical use Heart Rate - The watch will record your heart rate all day. You can also tap on the page to start measuring Phone - The watch supports bluetooth calling i.e it enables you to make calls from the watch and even talk through the...
- Page 23 Exercise - This feature comprises of 100+ exercise modes. Track your fitness goals in a tap. You can view the following activities: Walking, Running, Cycling, Skipping, Badminton, Basketball, Football, Kabbadi, Cricket etc Breathe - This function helps you to focus on your breathing activity Messages - This function helps you to check all notifications and messages...
- Page 24 Stopwatch- You can begin and close any time line and stop the watch. Timer - A countdown timer lets you count the time forward and allows the user to set goals and finish a particular event on time. Alarm - You can set 3 Alarm Clocks on the Da Fit App under the home screen, you can open and close it on the watch...
- Page 25 Weather - You can know the current weather and the forecast for next 6 days, this information is synced from your app. Scroll Up to see the forecast weather. It will not be updated if the phone is disconnected for a long time. Shutter - You can remote control the camera of your phone once the watch is connected with your device.
- Page 26 Flashlight - Make way through the darkness by using the inbuilt flashlight function Setting - Check out other features through this tab.
-
Page 27: Other Settings
Replace the Watch Face on the App: Tap the Watch face settings entry in the "Profile" -> "FB BSW053" page, and then download and sync watch faces on the Watch Face Store. After that, the replacement is done... - Page 28 Such background processes could disconnect the watch and the App, and as a result no reminder will be received. See "Profile" -> "FB BSW053" -> "Run in background" settings for different mobile phone systems...
- Page 29 In addition, when a weather alert is received, the watch will receive the alert as well. You may toggle on the weather alert switch in the "Profile" -> "FB BSW053" ->"Others" -> " Weather" page on the Da Fit App...
- Page 30 Vibration: Select if you want the watch to vibrate for notifications Low Power Mode: This will help to keep the watch with a less power consumption mode DND: This feature lets you turn off vibrations and turns down the brightness...
- Page 31 Phone Call: This enable you to one click activate bluetooth calling mode Phone Reset: This will help to reset the bluetooth calling function System Menu: This helps to Restart, Power Off, Reset About: This helps to know the device firmware...
- Page 32 Watch Status Reminder Incoming Call When the watch receives incoming calls in no bluetooth calling mode, it will ring and vibrate to remind you, also you can silent or reject the call. Idle alerts When you are sitting for a long time, the watch will vibrate to remind you to get up for a while.
- Page 33 Watch Alarm Alert When the alarm on the mobile phone rings, the watch will vibrate and brigthen to remind you that the alarm is ringing. Before using this function, you need to enable Watch alarm alert by tapping "Profile" -> "Alarm" and setting the alarm fix time on the Da Fit App Exercise Under the exercise tab, you get an option to choose and add all...
- Page 34 Introduction to the Exercise Function Start Exercise There is one approach to starting a sport: Select a exercise type in the Activity entry and enable it; The watch currently supports following 100+ kinds workout modes: Walking, Running, Cycling, Skipping, Badminton, Basketball, Football, Tennis, Climbing, Rugby, Golf, Yoga, Workout, Dancing, Baseball, Elliptical Machine, Indoor Cycling, Free, Rowling, Trail Running, Skiing, Bowling, Dumbbells, Sit-Ups,...
