SSV Works SWITCH WORKS 240-TTU3-SWE12 Quick Start Manual

Alpha12 switcher box mounting kit for 2022-up toyota tundra (gen 3)
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com
|
Phone: 818-991-1778
WARRANTY INFORMATION:
ALL SWITCH Works Electronics are covered by a limited 1 year warranty against defects
in material or workmanship. Contact SSV Works for further warranty information.
|
Fax: 866-293-6751
240-TTU3-SWE12
2022-Up Toyota Tundra (Gen 3)
Alpha12 Switcher Box
Please read and understand these
!
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
Mounting Kit
BY

Advertisement

loading
Need help?

Need help?

Do you have a question about the SWITCH WORKS 240-TTU3-SWE12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SSV Works SWITCH WORKS 240-TTU3-SWE12

Summary of Contents for SSV Works SWITCH WORKS 240-TTU3-SWE12

  • Page 1 240-TTU3-SWE12 2022-Up Toyota Tundra (Gen 3) Alpha12 Switcher Box Mounting Kit SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030 www.SSVworks.com Phone: 818-991-1778 Fax: 866-293-6751 Please read and understand these WARRANTY INFORMATION: ALL SWITCH Works Electronics are covered by a limited 1 year warranty against defects instructions completely before in material or workmanship.
  • Page 2 PARTS CONTENTS Toyota Tundra Toyota Tundra Overhead Mounting Toyota Tundra ALPHA12 Overhead Fascia [B-D3306] Bracket [B-D3307] Brain Mount Bracket [B-MB3365] #7-19x3/4” Phillips Screw (x7) M5x10 Pan Head Screw (x4) 4-40x.375 Thread Cutting Screw (x4) [B-S1656] [BS1158] [B-S3262] Zip tie and zip tie panel tree snap. M6x12mm Hex Head Bolt 4-Pin Extension Cable, 6 ft.

  • Page 3: Warranty Information

    All SSV Works Non-Electronic Parts are covered by a limited lifetime warranty against instructions completely before defects in material or workmanship. All SSV Works Electronics are covered by a limited installation to avoid possible injury, or 1 year warranty against defects in material or workmanship. Labor for replacement of defective components is not covered.
  • Page 4 E. Mark the drill guides and drill 3 holes using a 3mm drill bit. F. Drill a 16mm hole for the controller cable connector. Set aside the G. Assemble the Tundra fascia to the mounting bracket using the console for now. supplied (4) #7-19x3/4”...

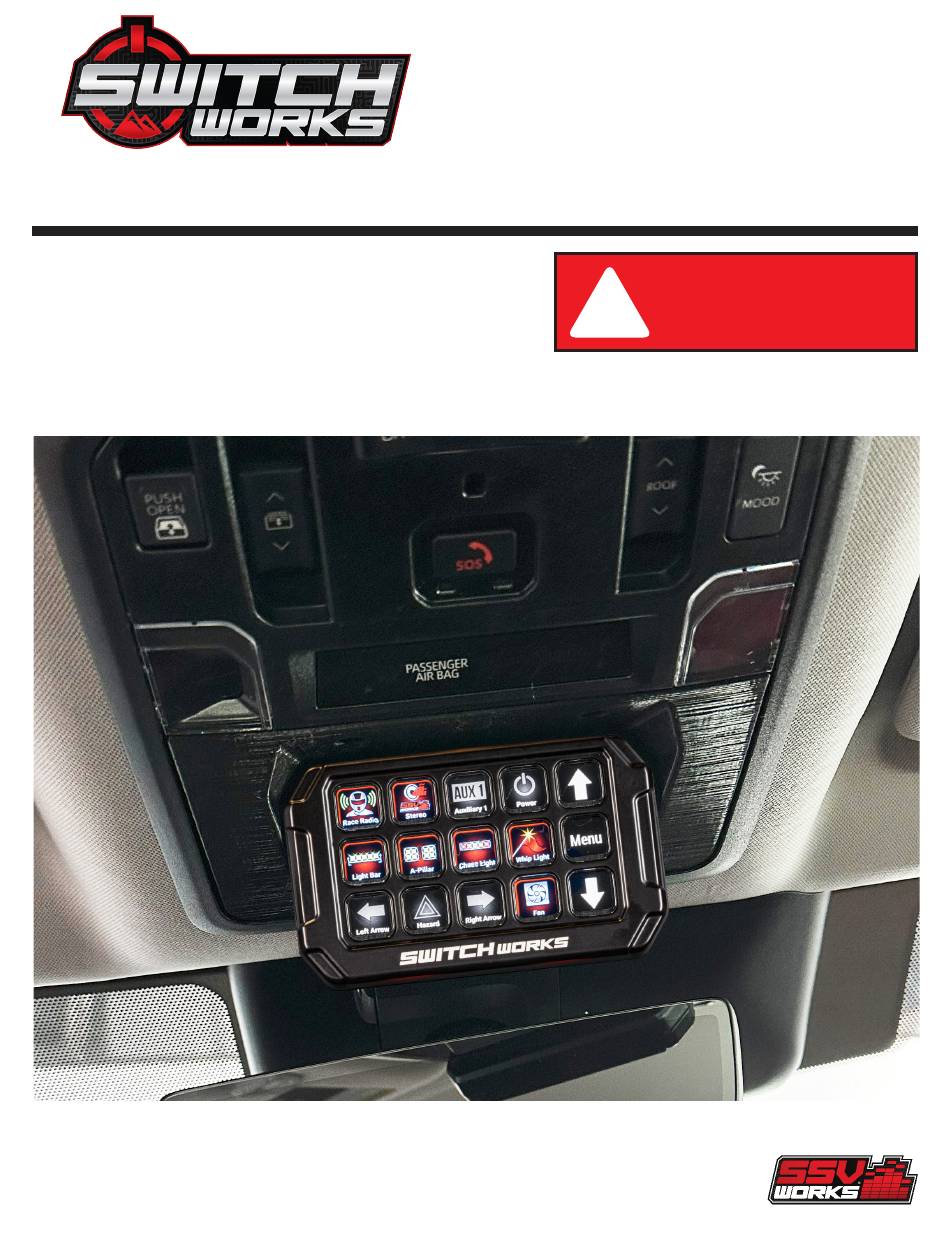

  • Page 5 I. Picture above shows the orientation of the ALPHA12 controller to the J. Insert the cable through the hole drilled on the overhead console fascia. Completed installation of the Gen 3 Toyota Tundra SWE12 and place the controller and bracket in the sunglass holder cavity. 15-Button Controller.
