me&co ECONO 1200 Assembly Instructions

ECONO 1200 DESK
Parts List (4 parts)

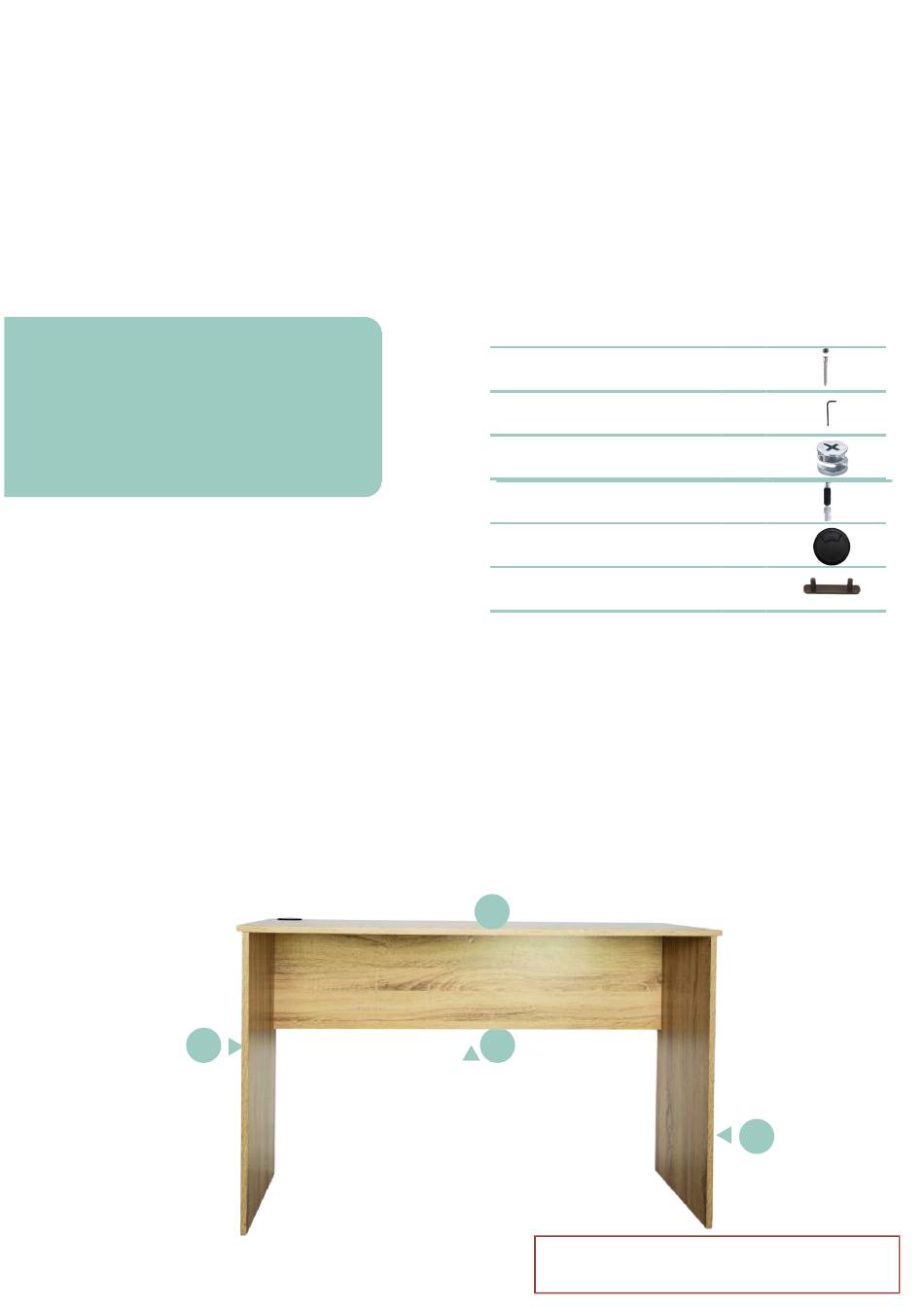

1. Side Left
2. Side Right
3. Top Panel
4. Cleat (front of unit)
Make sure you have all the parts listed and organize
them by type and size. You will also need a Phillips
or star screwdriver
Main Assembly
▶ Place Top Panel (3) upside down on a soft surface (blanket,
etc.) Screw 5 x Cam Pins (D) into 5 small holes using a Phillips
screwdriver.
▶ Prepare the Cleat (4) and Side Panels (1 & 2) by inserting the
Cams (C) in the large holes. Make sure arrow on cam faces the
nearest side.
▶ Fit the Cleat (4) between Side Panels (1 & 2) ensuring the
dowels fit into the holes, secure it using Confirmat screws (A).
▶ Attach the Prepared Cleat and Side Panels on the Top panel
and tighten using the Cam Pins (D)
▶ Fit cable outlet (E) onto the Top Panel (3)
mecofurniture.co.za
x 1
x 1
x 1
x 1
1
ASSEMBLY
INSTRUCTIONS
Hardware
Confirmat Screws (use
A
the supplied Allen Key)
Allen Key
B
C Cams
Cam Pins
D
Cable Outlet
E
Glides -
F
Attached no action needed
3
4
CLEANING INSTRUCTIONS
NB: Clean with a damp cloth only.
Excessive water will cause damage, voiding the warranty.
x 4
x 1
x 5
x 5
x 1
x 4
2 2
