7starlake CPT400-RS User Manual

Edge ai gpu computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CPT400-RS
Edge AI GPU Computer
User's Manual
Revision Date: Jun. 25. 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPT400-RS and is the answer not in the manual?

Questions and answers

Related Manuals for 7starlake CPT400-RS

Summary of Contents for 7starlake CPT400-RS

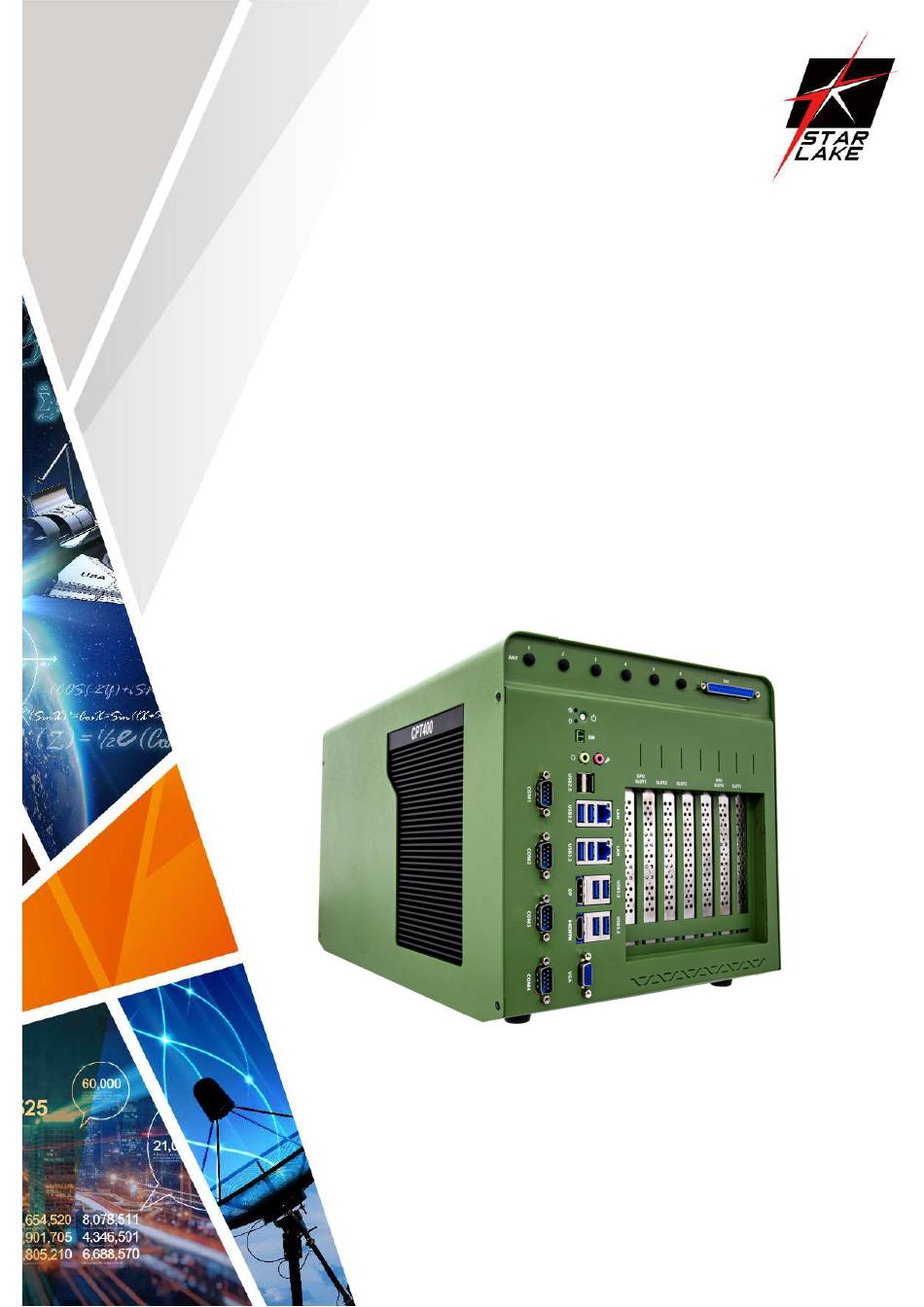

  • Page 1 CPT400-RS Edge AI GPU Computer User’s Manual Revision Date: Jun. 25. 2024...
  • Page 2 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Safety Information Electrical safety  To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.  When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected.
  • Page 3 2024/06/25 First release Packing List Item Description Q’ty CPT400-RS system Driver CD Wall Mount Brackets 2 pin Terminal Block Male Connector 4 pin Terminal Block Power Connector GPU Power Cable kit If any of the above items is damaged or missing, please contact your local distributor.

  • Page 4: Table Of Contents

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Table Content SAFETY INFORMATION ..............................1 ................................1 LECTRICAL SAFETY ................................1 PERATION SAFETY ..................................1 TATEMENT REVISION HISTORY ..............................2 PACKING LIST ................................2 TABLE CONTENT ................................. 3 CHAPTER 1: PRODUCT INTRODUCTION .......................... 5 1.1 K...
  • Page 5 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 4.5.1 HDD Security ..............................41 4.5.2 Secure Boot ..............................42 4.6 B .................................. 48 4.6.1 (List Boot Device Type) Drive BBS Priorities ....................51 4.7 S & E ................................52 4.8 E .................................

  • Page 6: Chapter 1: Product Introduction

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Chapter 1: Product Introduction 1.1 Key Features System 13th/12th Gen Intel® Raptor Lake-S/Alder Lake-S Core i9/i7/i5/i3/Celeron/Pentium (Up to 125W) Chipset Intel® R680E Memory type DDR5 4800MHz, 2 x 262-pin SO-DIMM, Max. 64GB(Non-ECC/ECC) Storage Device 2 x 2.5"...
  • Page 7 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 3 X RS232 + 1 X RS232/ 422/ 485 6 x SMA hole with rubber cap 1 x DB37 connector for 32 bit DIO AUDIO 1 X Mic-in / 1 X Line-out 4 X USB3.2 Gen2...

  • Page 8: Block Diagram

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 1.2 Block Diagram 1.3 Front I/O Placement...

  • Page 9: Rear I/O Placement

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 1.4 Rear I/O Placement 1.5 CPU List E Core P Core CPU Name Cache Boost Clock Cores Therads Boost Clock Boost Clock 13th Generation Intel® Raptor Lake-S Intel® Core™ i9-13900 1.50GHz 2.00GHz 5.60GHz...

  • Page 10: Gpu List

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 1.6 GPU List GPU Name Display Memory CUDA NVIDIA A40 48GB 3 x DP1.4a 48GB GDDR6 10,752 300W *with optional fan duct kit NVIDIA RTX 6000 Ada Gen. 4 x DP1.4a 24GB GDDR6...

  • Page 11: Chapter 2: Connectors Pin Define

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Chapter 2: Connectors Pin Define 2.1 External Connector Pin Definition DC input power connector at DC_P1 & DC_P2 location V_IN_A input PWR range from +12V~48V 12V max PWR = 600W 48V max PWR = 1500W...
  • Page 12 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Pin Signal EXT_PWRBT_ON/OFF 32-bit GPIO in DB37 DB37 Default GPIO Type USBM_GPIOA0 Output Low USBM_GPIOA1 Output Low USBM_GPIOA2 Output Low USBM_GPIOA3 Output Low USBM_GPIOA5 Output Low USBM_GPIOA6 Output Low USBM_GPIOA7 Output Low...
  • Page 13 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 DB37 Default GPIO Type USBM_GPIOC5 Multi Function for UART0_RX USBM_GPIOC6 Input USBM_GPIOC7 Output low for Power LED USBM_GPIOD0 Input USBM_GPIOD1 Input USBM_GPIOD2 Input USBM_GPIOD3 Input USBM_GPIOD4 Input USBM_GPIOD5 Input USBM_GPIOD6 Input USBM_GPIOD7...
  • Page 14 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 PWR RS232 RS232 RS422 RS485 5V/12V...

  • Page 15: Chapter 3: System Setup

    User’s Manual Revision Date: Jun. 25. 2024 Chapter 3: SYSTEM SETUP This chapter provides information about how to set up the CPT400-RS GPU Computing System hardware installation. 3.1 CPU, Memory, and M.2 M Key Module Installation Please follow the instructions to install CPU & memory as below.
  • Page 16 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 - Remove black mylar and CPU socket cover, and follow CPU direction to install CPU. - Assemble SO-DIMM DDR5 memory to slots...

  • Page 17: B Key/E Key/Mpcie Module Installation

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 - Assemble M.2 M key/B-M key module to M.2 M key slot 3.2 M.2 B Key/E Key/mPCIe Module Installation - Loosen 7 screws and move chassis cover as below direction...
  • Page 18 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 - Assemble M.2 B key/E key/mPCIe module as below location on the bottom of main board...

  • Page 19: Pcie Card Installation

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 3.3 PCIe Card Installation - Loosen 4 screws to release PCIe card holder bracket - Loosen 1 screw for PCIe door plate which will be used for expansion card and assemble with...

  • Page 20: Chapter 4: Ami Bios Utility

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Chapter 4: AMI BIOS UTILITY This chapter provides users with detailed descriptions on how to set up a basic system configuration through the AMI BIOS setup utility. 4.1 Starting To enter the setup screens, perform the following steps: ...

  • Page 21: Main Page

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 4.3 Main Page The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. Field Name BIOS Vender Default Value American Megatrends Comment This field is not selectable. There is no help text associated with it.
  • Page 22 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Default Value Display build date of the BIOS Comment This field is not selectable. There is no help text associated with it. Field Name ME FW Version Default Value ME Firmware Version.
  • Page 23 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Comment This field is not selectable. There is no help text associated with it. Field Name Serial ATA Port 3 Value Display the installed SATA device model/size of port 3. Comment This field is not selectable. There is no help text associated with it.

  • Page 24: Advanced Page

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 ss : 0-59 Help Set the Time. Use Tab to switch between Time elements. 4.4 Advanced Page The Advanced Menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
  • Page 25 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Help VMD setup menu Comment Press Enter when selected to go into the associated Sub-Menu. Field Name Trusted Computing Help Trusted Computing Settings Comment Press Enter when selected to go into the associated Sub-Menu.

  • Page 26: Onboard Device

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 4.4.1 Onboard Device Field Name Turbo Mode Default Value [256M] Possible Value 128M 256M Help Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device. Field Name State After G3...
  • Page 27 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 32M/F7 Help Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. Field Name DVT Total Gfx Mem Default Value [256M] Possible Value 128M 256M Help Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device.

  • Page 28: Cpu Configuration

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Help Mini Pcie SIM card Switch function MPE SIM1_ MPE2 SIM2 MP1->MPE SIM1 MP2->MPE SIM2 MPE SIM2_ MPE2 SIM1 MP1->MPE SIM2 MP2->MPE SIM1 4.4.2 CPU Configuration Field Name Default Value Displays CPU Signature Comment This field is not selectable.

  • Page 29: Vmd Setup Menu

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Field Name Default Value L3 Cache Size Comment This field is not selectable. There is no help text associated with it. Field Name SMX/TXT Default Value SMX/TXT Supported or Not Comment This field is not selectable. There is no help text associated with it.

  • Page 30: Trusted Computing

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 4.4.4 Trusted Computing Field Name FW Version Default Value TPM module version Comment This field is not selectable. There is no help text associated with it. Field Name Vender Default Value TPM module version Comment This field is not selectable.

  • Page 31: Super Io Configuration

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Field Name Pending operation Default Value [None] Possible Value None TPM Clear Help Schedule an Operation for the Security Device. NOTE: Your Computer will reboot during restart in order to change State of Security Device.
  • Page 32 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Field Name Serial Port 4 Configuration Help Set Parameters of Serial Port 4 (COMD) Comment Press Enter when selected to go into the associated Sub-Menu. 4.2.5.1 Serial Port 1 Configuration Field Name...
  • Page 33 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Possible Value Auto IO=3F8h; IRQ=4; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; Help Select an optimal settings for Super IO Device 4.2.5.2 Serial Port 2 Configuration Field Name Serial Port Default Value...
  • Page 34 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Field Name Change Settings Default Value [AUTO] Possible Value Auto IO=2F8h; IRQ=3; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; Help Select an optimal settings for Super IO Device 4.2.5.3 Serial Port 3 Configuration...
  • Page 35 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Field Name Device Settings Default Value Device Super IO COM3 Address and IRQ. Comment This field is not selectable. There is no help text associated with it. Field Name Change Settings Default Value...
  • Page 36 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Possible Value Disabled Enabled Help Enable or Disable Serial Port(COM) Field Name Device Settings Default Value Device Super IO COM4 Address and IRQ. Comment This field is not selectable. There is no help text associated with it.

  • Page 37: Hw Monitor

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 4.4.6 HW Monitor Type Range CPU Temperature -20 ~ (By Processor Tjmax) °C CPU VR Temperature -20 ~ 120 °C DIMM Temperature -20 ~ 120 °C CPU Fan Speed System Fan Speed...

  • Page 38: S5 Rtc Wake Setting

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 4.4.7 S5 RTC Wake Setting Field Name Wake system from S5 Default Value [Disabled] Possible Value Disabled Fixed Time Help Enable or disable System wake on alarm event, Select FixedTime, system will wake on the hr::min::sec specified.

  • Page 39: Network Stack Configuration

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Field Name Wake up hour(Show when Wake system from S5 set to Fixed Time) Default Value Possible Value 0-59 Help Select 0-59 For Minute Field Name Wake up hour(Show when Wake system from S5 set to Fixed Time)

  • Page 40: Nvme Configuration

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Field Name Ipv4 PXE Support (Available when Network stack Enabled) Default Value [Enabled] Possible Value Disabled Enabled Help Enable/Disable Ipv4 PXE Boot Support. If disabled IPV4 PXE boot support will not be available.

  • Page 41: Security Page

    CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 4.5 Security Page Field Name Administrator Password Help Set Administrator Password Field Name User Password Help Set User Password. Field Name HDD Security drive Help HDD Security Configuration for selected drive Comment Press Enter when selected to go into the associated Sub-Menu.
  • Page 42 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 4.5.1 HDD Security Field Name Set User Password Help Set HDD User Password. *** Advisable to Power Cycle System after Setting Hard Disk Passwords ***.Discard or Save changes option in setup does not have any impact on HDD when password is set or removed.
  • Page 43 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 4.5.2 Secure Boot Field Name Secure Boot Default Value [Enabled] Possible Value Enabled Disabled Help Secure Boot feature is Active if Secure Boot is Enabled,Platform Key(PK) is enrolled and the System is in User mode.The mode change requires...
  • Page 44 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 databases Field Name Reset to Setup Mode Help Delete all Secure Boot key databases from NVRAM Field Name Enter Audit Mode Help Enter Audit Mode workflow. Transitions from User to Audit Mode will result in erasing of PK variable Comment Enter Audit Mode workflow.
  • Page 45 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 4.5.2.1 Key Management Field Name Factory Key Provision Default Value [Disabled] Possible Value Enabled Disabled Help Install factory default Secure Boot keys after the platform reset and while the System is in Setup mode...
  • Page 46 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 1.Public Key Certificate: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed Comment Press Enter when selected to go into the associated Sub-Menu “Key Management”. Field Name...
  • Page 47 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Factory,External,Mixed Comment Press Enter when selected to go into the associated Sub-Menu. Field Name Forbidden Signatures Default Value Size:0, Keys:0, Key source: No Keys Help Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate:...
  • Page 48 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed Comment Press Enter when selected to go into the associated Sub-Menu. Field Name Export Secure Boot variables Help Copy NVRAM content of Secure Boot variables to files in a root folder on a...
  • Page 49 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 4.6 Boot Page Field Name Setup Prompt Timeout Default Value Possible Value 1~65535 Comment Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Field Name Bootup NumLock State...
  • Page 50 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Field Name Boot Option #2 Default Value [CD/DVD] Possible Value USB Floppy, CD/DVD, USB CD/DVD, Hard Disk , USB Key, USB Hard Disk , NVME, Network, Disabled Comment Sets the system boot order...
  • Page 51 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Field Name Boot Option #8 Default Value [Network] Possible Value USB Floppy, CD/DVD, USB CD/DVD, Hard Disk , USB Key, USB Hard Disk , NVME, Network, Disabled Comment Sets the system boot order...
  • Page 52 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 Drives. Comment Press Enter when selected to go into the associated Sub-Menu. 4.6.1 (List Boot Device Type) Drive BBS Priorities Field Name Boot Option #1 Default Value Possible Value Boot Device Name 1 of this type...
  • Page 53 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 4.7 Save & Exit Page Field Name Discard Changes and Exit Help Exit system setup without saving any changes. Field Name Save Changes and Reset Help Reset the system after saving the changes.
  • Page 54 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 4.8 Event Logs Field Name Change Smbios Event Log Settings Help Press <Enter> to change the Smbios Event Log configuration. Comment Press Enter when selected to go into the associated Sub-Menu. Field Name...
  • Page 55 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 4.8.1 Change Smbios Event Log Settings Field Name Smbios Event Log Default Value [Enabled] Possible Value Enabled Disabled Help Change this to enable or disable all feature of Smbios Event Logging during boot.
  • Page 56 CPT400-RS User’s Manual Revision Date: Jun. 25. 2024 4.8.2 View Smbios Event Log Field Name DATE / TIME / ERROR CODE / SEVERITY / COUNT Default Value MM/DD/YY HH:MM:SS Smbios 0x16 N/A N/A Possible Value By Events. Help By Events.
