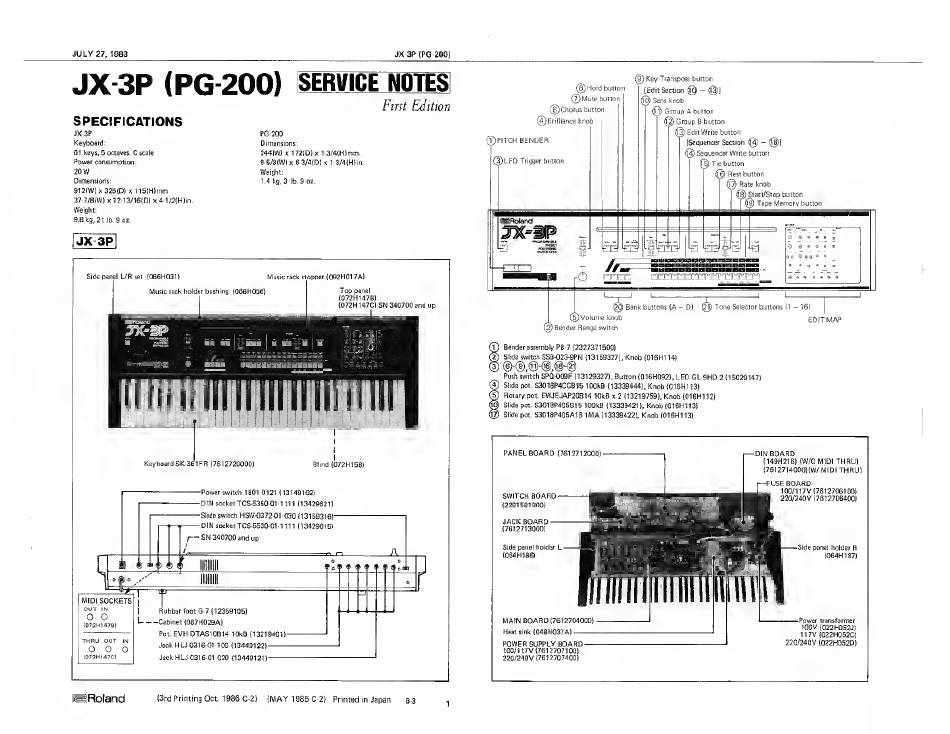

Roland JX-3P Service Notes

JULY 27, 1983 JX-3P (PG-200)
IsB^Roland
(3rd Printing Oct. 1986 C-2) (MAY 1985 C-2) Printed in Japan b-3
1
j) Key Transpose button
[Edit Section © - ©]
© Sens knob
© Group A button
© Group B button
© Edit Write button
[Sequencer Section @ — @]
© Sequencer Write button
ijj) Tie button
© Rest button
© Rate knob
I @ Start/Stop button
(8) Hold button
©Mute button
©Chorus button
©Brilliance knob
©PITCH BENDER
|(3)LF0 Trigger button
© Tape Memory button
Bank buttons IA- D) GJ) Tone Selector buttons 11-161
I ©Vo lume knob
© Bender Range switch
EDIT MAP
ffl Bender assembly PB-7 (2327371500)
© Slide switch SSB-023-9PN (13159327), Knob (016H114)
Push switch SPQ-009F (13129327), Button (016H092), LED GL-9HD-2 (15029147)
i
Slide pot. S3018P4CCB15 lOOkB (13339444), Knob (016H113)
Rotary pot. EWJEJAP20B14 10kB x 2 (13219759), Knob (016H112)
Slide pot. S3018P405B15 lOOkB (13339421), Knob (016H113)
Slide pot. S3018P405A16 IMA (13339422), Knob (016H113)
PANELBOARD (7612712000)
DIN BOARD
(149H216) (W/O MIDI THRU)
(7612714000KW/MIDI THRU)
(—FUSE BOARD
■ I—.
100/117V (7612706100)
i I 220/240V (7612706400)
SWITCH BOARD
(22915818001
JACK BOARD
(76127130001
Side panel holder L
I064H186)
■ S ide panel holder R
(064H187)
MAIN BOARD (7612704000) -Power transformer
100V (022H052J)
117V (022H052C)
220/240V (022H052D)
Heat sink (048H037A) —
POWER SUPPLY BOARD
100/117V (7612707100)
220/240V (7612707400)
