INSTRUCTION GUIDE

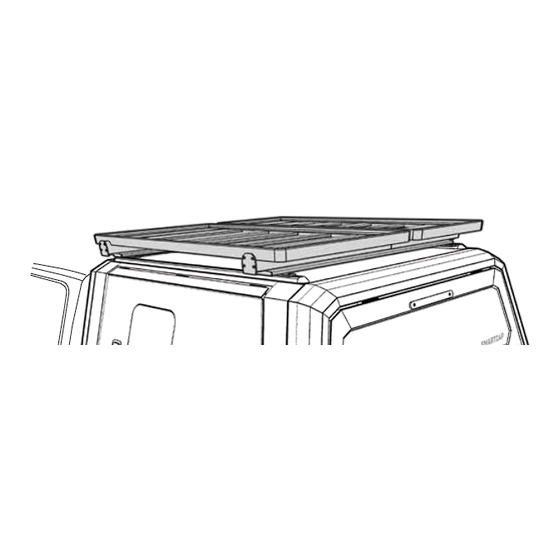

DROP RACK EVO III ADAPTOR
PREPARE A CLEAN WORK AREA.
WE RECOMMEND A MINIMUM OF 2 PEOPLE FOR ASSEMBLY.
ENSURE THE REQUIRED TOOLS ARE PRESENT AND ALL HARDWARE
CONTENTS ARE ACCOUNTED FOR.
NEVER USE ACETONE OR THINNERS ON PAINTED PARTS.
READ THROUGH THE ENTIRE INSTRUCTION GUIDE BEFORE STARTING THIS
PROCEDURE AND FOLLOW THE STEPS CAREFULLY TO AVOID ANY DAMAGE
TO THE COMPONENTS OR THE VEHICLE.
SUPPORT.NA@SMARTCAP.COM - NORTH AMERICA
SUPPORT.SA@SMARTCAP.COM - REST OF WORLD
SMARTCAP.COM
I-SHEET-NA-DRA
Advertisement
Related Manuals for SMARTCAP DROP RACK EVO III ADAPTOR
Summary of Contents for SMARTCAP DROP RACK EVO III ADAPTOR
- Page 1 INSTRUCTION GUIDE DROP RACK EVO III ADAPTOR PREPARE A CLEAN WORK AREA. WE RECOMMEND A MINIMUM OF 2 PEOPLE FOR ASSEMBLY. ENSURE THE REQUIRED TOOLS ARE PRESENT AND ALL HARDWARE CONTENTS ARE ACCOUNTED FOR. NEVER USE ACETONE OR THINNERS ON PAINTED PARTS.
-
Page 2: Assembly Hardware
TOOLS REQUIRED Rivet Gun Tape Measure Power Drill Scissors Allen Key 5mm Bit IMPORTANT USE ONLY THE TOOLS RECOMMENDED ABOVE. USE ONLY THE HARDWARE PROVIDED IN THIS KIT. ASSISTANCE WILL BE NEEDED FOR THIS INSTALLATION. AVOID PINCHING OR CRUSHING HANDS AND FINGERS. INSPECT ALL KIT COMPONENTS FOR DAMAGE BEFORE ASSEMBLY. - Page 3 REMOVE THE DROP RACK FROM ITS PACKAGING AND LAY IT DOWN WITH THE MOUNTING PLATES FACING UPWARDS. REMOVE THE RIVETS LOCATED ON THE MOUNTING PLATE OF THE DROP RACK BY DRILLING THROUGH THEM WITH A 5MM DRILL BIT AND A POWER DRILL (2 PER PLATE). REPEAT ON ALL 4 MOUNTS MOUNTING PLATE REMOVE THE M8 SCREW LOCATED ON THE...
- Page 4 REMOVE THE MOUNTING PLATE FROM THE BOTTOM OF THE DROP RACK, LEAVING THE MOUNTING SPACER IN PLACE. SAVE THE MOUNTING PLATE FOR REUSE LATER ON. REPEAT ON ALL 4 MOUNTS MOUNTING PLATE MOUNTING SPACER PLACE THE MOUNTING PLATE ADAPTER ON TOP OF THE MOUNTING SPACER. REPEAT ON ALL 4 MOUNTS PLATE ADAPTOR MOUNTING SPACER...
- Page 5 LOOSELY TIGHTEN THE MOUNTING PLATE ADAPTOR TO THE BASE OF THE DROP RACK USING THE M8 SCREW FROM MOUNTING PLATE REPEAT ON ALL 4 MOUNTS RIVET THE POP RIVETS IN PLACE USING A RIVET GUN TOOL. REPEAT ON ALL 4 MOUNTS FULLY TIGHTEN THE M8 SCREW USING A 5MM ALLEN KEY.
- Page 6 PLACE THE DROP RACK ON TOP PLATE ADAPTOR OF THE SMARTCAP, WITH THE MOUNTING PLATE ADAPTORS ALIGNING PARRALLEL TO THE ROOF RAILS. FRONT ROOF RAILS STICKER INDICATES FRONT SLIGHTLY LIFT THE CORNER OF THE DROP RACK AND SLIDE THE MOUNTING PLATE IN BETWEEN THE MOUNITNG PLATE ADAPTOR AND THE ROOF RAIL.
- Page 7 LOOSELY TIGHTEN THE DROP RACK TO THE M8x30mm SMARTCAP WITH M8 BUTTON BOLT, M8 LOCK WASHER, AND M8 FENDER WASHER. BUTTON HEAD BOLT BE SURE THE M8 BUTTON BOLT IS PROPERLY M8 LOCK WASHER THREADED INTO THE WELD NUT LOCATED WITHIN THE SMARTCAP’S ROOF RAILS.
- Page 8 THANKS FOR YOUR PURCHASE. PLEASE LET US KNOW IF YOU HAVE ANY QUESTIONS. SUPPORT.NA@SMARTCAP.COM - NORTH AMERICA SUPPORT.SA@SMARTCAP.COM - REST OF WORLD...
