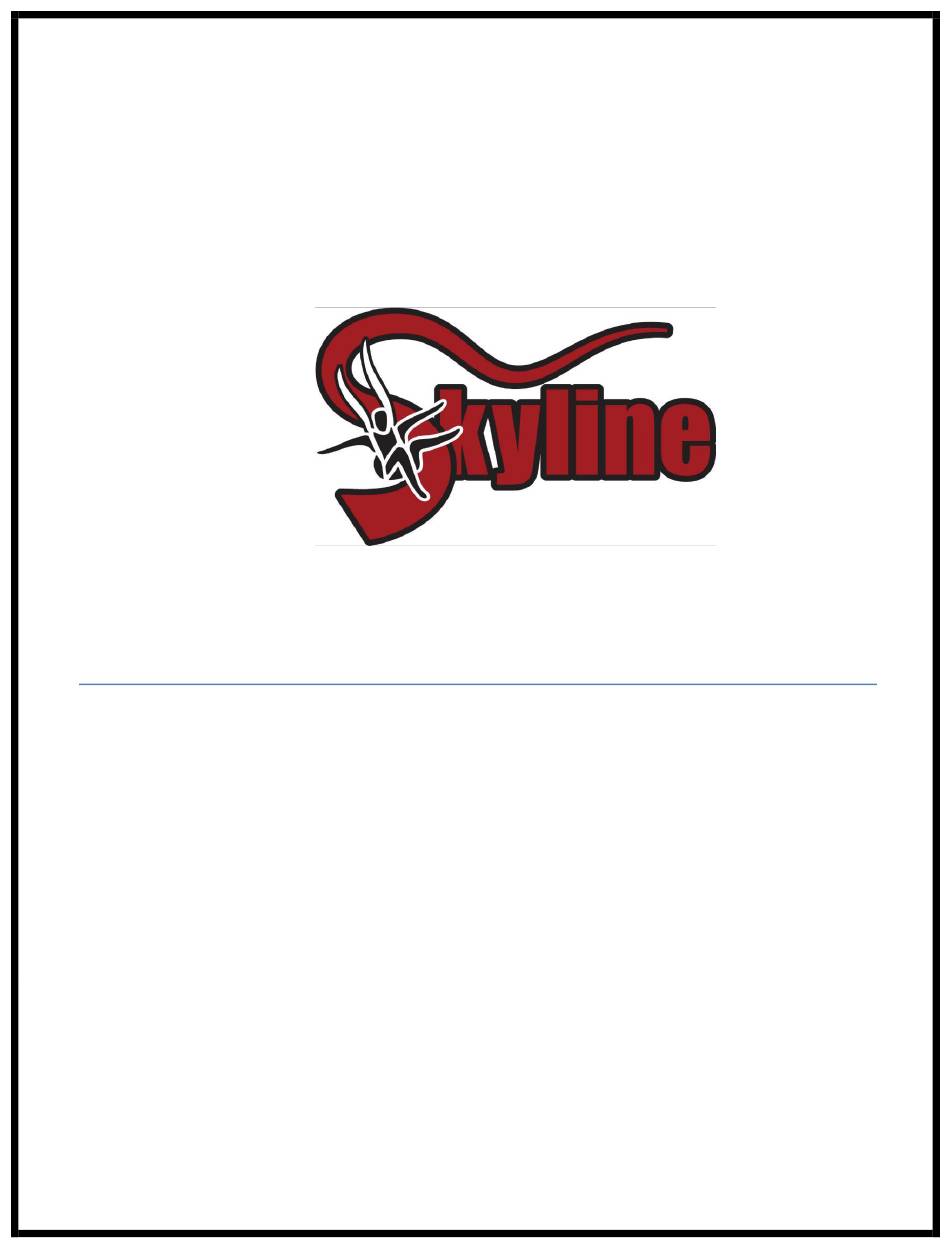

- Page 1 User Instructions Manual skyTECH Turbine Trolley SKY-TT-01, SKY-TT-02 Skyline Ziplines Ltd. admin@skylineziplines.ca www.skylineziplines.ca...
-
Page 2: Revision History
Revision History Revision Sections Affected Changes Date Original Publication 13 May 2019 4.2, 4.3, 4.4 Addition of Threadlocker in Assembly April 25 2022 1.3, 3.2, 8.0 Updated Description, Connector January 13, 2023 Requirements, Maintenance Procedures Version: USER INSTRUCTIONS MANUAL – TURBINE TROLLEY Page 2 of 27... -
Page 3: Table Of Contents
Table of Contents CONTENTS ............................. 2 EVISION ISTORY ............................3 ABLE OF ONTENTS ........................5 ARNINGS AND MPORTANT OTICES DESCRIPTION ............................6 Applications ..........................6 Standards ............................6 Description of Turbine Trolley ......................6 Description of Twin Turbine Trolley ....................6 LIMITATIONS ............................ - Page 4 Trolley Maintenance – Cleaning a Trolley ..................16 Trolley Maintenance – Replacing a Wheel, Axle, or Axle Spacer............ 16 Trolley Maintenance – Replacing a Sling ..................17 Trolley Maintenance – Replacing a Crossbar Grip ................. 17 LIFETIME ............................. 18 10.0 INCIDENT AND FAILURE REPORTING ....................18 11.0 WARRANTY ............................19 A –...
-
Page 5: Warnings And Important Notices
This manual contains information and instructions specific to skyTECH Turbine Trolley and associated equipment manufactured by Skyline Ziplines Ltd. Make sure this User Instructions Manual is the latest version available. Contact Skyline Ziplines to obtain the latest document revisions, important updates and other notices. -
Page 6: Description
1.0 Description Applications Skyline trolleys are to be used as personal equipment for zipline amusement rides only Standards Refer to local, provincial/state and federal laws and regulations pertaining to the installation and use of this type of equipment Description of Turbine Trolley 1.3.1 Turbine Trolley... -
Page 7: Limitations
Further reading material can be found in the Skyline Ziplines Rescue Procedures Manual. Contact Skyline Ziplines Ltd. to get a copy of the most updated manual if you do not have it. Training Skyline Trolleys must only be installed and used by persons trained in their correct application and use (See Section 5). -
Page 8: System Requirements
Connectors used to attach to the Skyline Turbine Trolley should meet these specifications ▪ Minimum break strength of 22 kN ▪... -
Page 9: Nomenclature
4.0 Nomenclature Description of Part Version: USER INSTRUCTIONS MANUAL – TURBINE TROLLEY Page 9 of 27... -
Page 10: Standard Operating Procedures
5.0 Standard Operating Procedures The following operating procedures outline only the necessary steps required to complete each process. The procedures do not consider additional safety requirements and additional safety considerations that should be considered for each site. Please consult a qualified person and/or your site-specific manual to ensure all necessary steps are taken to guarantee safety in your operations. -
Page 11: Standard Procedure For Loading - Twin Turbine Trolley With Crossbar
5.2.7 Remove trolley from cable by pushing up on the latch and the moving trolley up and out, off the cable 5.2.8 Return ladder to designated storage location 5.2.9 Ensure brakes reset fully Standard Procedure for Loading – Twin Turbine with Crossbar 5.3.1 Take a trolley from the guest 5.3.2... -
Page 12: Standard Procedure For Rescue
5.5.10 Release from the launch mechanism Standard Procedure for Rescue Skyline Ziplines recommends consulting with a qualified representative of Skyline Ziplines for all rescue needs. Site needs differ between locations and may require adaptions for appropriate and safe application. For more information, refer to the Rescue Procedures Manual and/or contact Skyline Ziplines. -
Page 13: Training
Gaining an adequate education in proper techniques and methods of safety is your own responsibility. Training should be done under the supervision of competent persons. It is recommended that Skyline Ziplines perform a manufacturer’s training to cover the material in this document, use with other equipment, and site specific training. -
Page 14: Inspection
Documentation Process Located in Appendix A is a sample Inspection form that Skyline Ziplines recommends using as a template. Located in Appendix B is a sample Maintenance form that Skyline Ziplines recommends using as a template. Located in Appendix C is a flowchart explaining the appropriate process for inspections, maintenance, and documentation. - Page 15 7.5.1 Item identified as rejected or failed during inspection by staff member 7.5.2 Failure/rejection is noted on inspection log 7.5.3 Item is marked with a tag with the following information: 7.5.3.1 Name of staff member 7.5.3.2 Date of inspection 7.5.3.3 Reason for rejection 7.5.4 Item is placed in designated Lock Out, Tag Out area.
-
Page 16: Maintenance And Storage
Thoroughly inspect all equipment after extended storage Replacement Parts and Repairs All replacement parts must be purchased through Skyline Ziplines Ltd. All equipment repairs must be performed by the following: Skyline Ziplines Ltd, an authorized contractor/vendor of Skyline Ziplines Ltd with approval or trained and authorized onsite personnel. -
Page 17: Trolley Maintenance - Replacing A Sling
Trolley Maintenance – Replacing a Sling Tools Required: 2.5mm Allen Key 8.5.1 Remove the small M4 screw(s) at the bottom of the trolley main block, allowing the side block to be removed by sliding it off to the side. 8.5.2 Remove the sling(s) that require replacement and replace with new parts 8.5.3 Insert and tighten (or replace) the M4 screw(s) with medium strength... -
Page 18: Lifetime
10.0 Incident and Failure Reporting In the unfortunate situation that a Skyline trolley, sling or lanyard is involved in an incident or a failure, please notify Skyline Ziplines immediately so that prompt corrective measures can be taken by Skyline Ziplines. -
Page 19: Warranty
6-1006 LYNHAM ROAD WHISTLER, BRITISH COLUMBIA, CANADA V8E 0S3 Skyline Ziplines LTD will use reasonable commercial efforts to return all product in a timely manner to the designated location and will be responsible for all shipping costs. Skyline Ziplines LTD reserves the right to modify this limited warranty at any time, in its sole discretion. -
Page 20: Appendixa - Inspection Forms
Appendix A – Inspection Forms *Sample files available upon request This Page Is Intentionally Blank Version: USER INSTRUCTIONS MANUAL – TURBINE TROLLEY Page 20 of 27... - Page 21 • Form 1-24 Skyline Ziplines ltd·...
- Page 22 Form 1-25 Skyline Ziplines Ltd...
- Page 23 Form 1-25 Skyline Ziplines Ltd...
-
Page 24: Appendixb - Maintenance Log
Appendix B – Maintenance Log *Sample files available upon request This Page Is Intentionally Blank Version: USER INSTRUCTIONS MANUAL – TURBINE TROLLEY Page 23 of 26... - Page 25 Date: Work Performed: Vedict (Circle One): FIT UNFIT RETIRED Unit ID: Performed By: Date: Version: Work Performed: USER INSTRUCTIONS MANUAL – TURBINE TROLLEY Page 24 of 26 Vedict (Circle One): FIT UNFIT RETIRED - Skyline Ziplines LTD - Form M-02...
-
Page 26: Appendixc - Documentation Process Flowchart
Appendix C – Documentation Process Flowchart Documentation Flowchart - Equipment Daily Trained Staff – Daily Inspections Inspection Resolve Issue Can Issue Place Equipment Does Print Inspection Inspect Piece of Lock Out/Tag Out Record On Equipment In Designated solv Form Equipment Equipment Inspection Form Pass? - Page 27 Skyline Ziplines Ltd. Headquarters 6-1006 Lynham Road Whistler, British Columbia Canada V8E 0S3 Canada Phone: (604) 905 - 4149 admin@skylineziplines.ca www.skylineziplines.ca Version: USER INSTRUCTIONS MANUAL – TURBINE TROLLEY Page 26 of 27...
