Cobra 602-2005 Instruction Manual

Cobra 602-2005 Instruction Manual

For harley: sportster 04-19

Advertisement

Items Supplied >

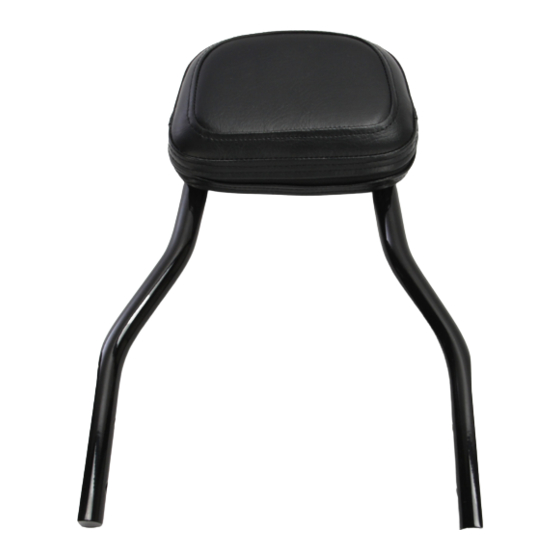

1 - Sissy Bar w/ Pad and Insert
2 - Detachable Side Plates (Left/Right)
2 - Front Mounting Bushings
2 - Rear Bushing Spacers
2 - Rear Bushing Sleeves
2 - Rear Bushing
2 - 5/16"-18 x 2-3/4" Buttonhead Bolts
2 - 5/16"-18 x 2-1/4" Buttonhead Bolts
4 - M8 x 20mm Buttonhead Bolts
Instruction Manual >
Read all instructions carefully before installing your new Cobra

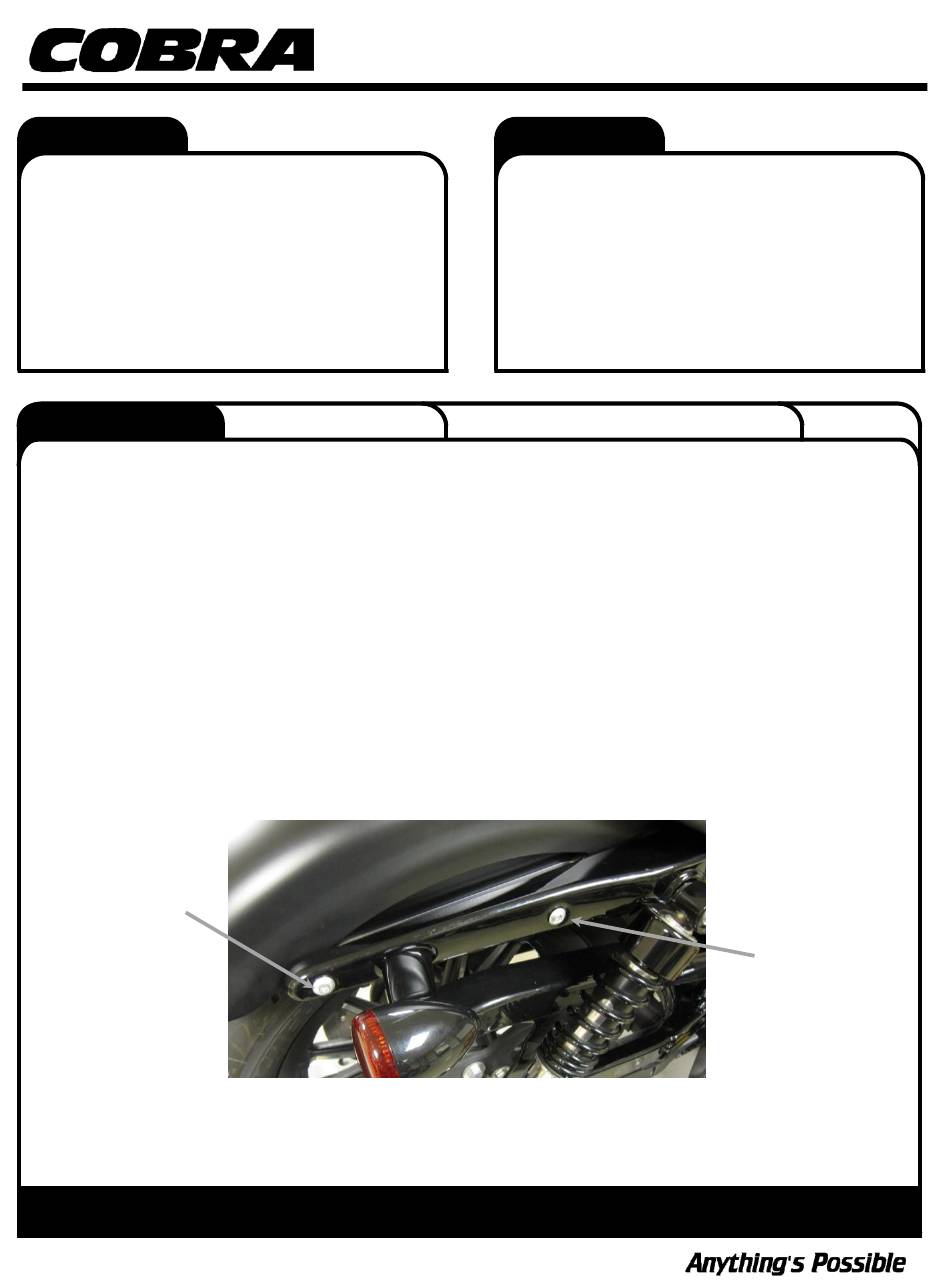

Remove the front bolt and inner nut from the right side fender rail. Save the inner nut because it will
1.
be reused. NOTE: Remove one side only so the fender does not fall resulting in possible scratches or
damage to the fender or paint. See FIGURE 1.
Install the front mounting bushing into the front hole using the supplied 5/16"-18 x 2-3/4" long
2.
buttonhead bolt and stock inner nut. Tighten bolt securely. See FIGURE 3.
Remove the rear fender rail bolt and inner nut. Save the inner nut because it will be reused. See
3.
FIGURE 1.
Assemble the supplied plastic bushing over the sleeve as shown in FIGURE 2. Make sure the
4.
chamfered inner edge goes towards the wide end of the sleeve.
Install the bushing onto the rear of the frame rail by inserting the 5/16"-18 x 2-1/4" long buttonhead
5.
bolt through the sleeve, through the supplied bushing spacer, and into the rear frame. See FIGURE 3.
Position the inner nut on the inside of the fender and tighten the bolt securely. Make sure the tab on
6.
the inner nut goes into the hole on the inner fender.
REMOVE
* Cobra
recommends you always wear a helmet while riding. Please never operate your motorcycle while under
®
the influence of alcohol and/or drugs. Enjoy the new look of your motorcycle and please ride safely.
DOCUMENT NO. 0017
REV. B
04/17
23801 E. La Palma Ave., Yorba Linda, Ca 92887 Ph. 714.692.8180 Fax. 714.692.5016
®
FIGURE 1
CONTINUED ON PAGE 2
Application(s) >
HARLEY:
SPORTSTER
(NOTE: WILL NOT FIT 16-17 ROADSTER)
602-2005/602-2005B
www.cobrausa.com
04-19
Page 1 of 3
