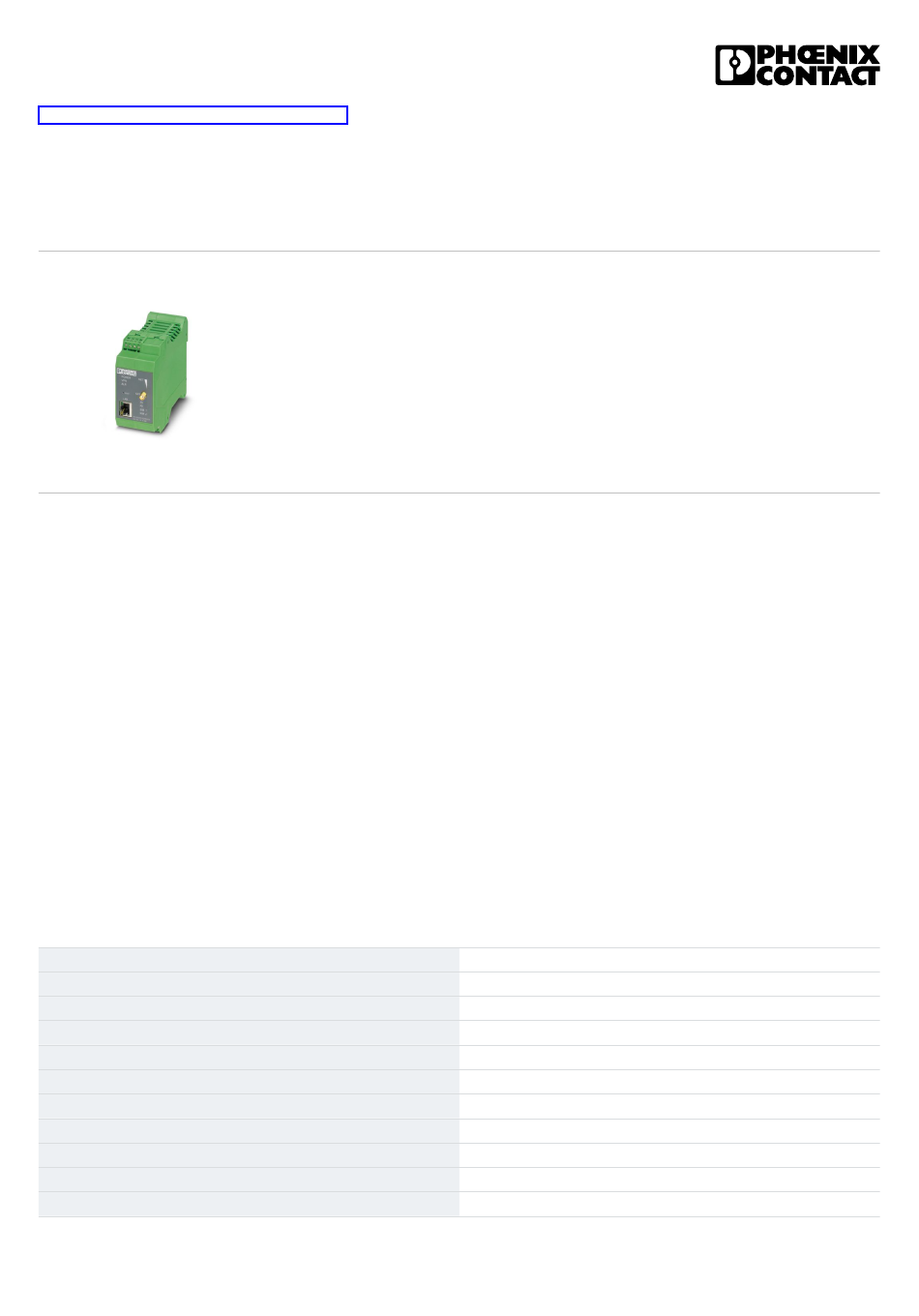

PSI-MODEM-3G/ROUTER - Router
2314008
https://www.phoenixcontact.com/us/products/2314008
Please be informed that the data shown in this PDF document is generated from our online catalog. Please find the complete data in the user
documentation. Our general terms of use for downloads are valid.
Your advantages
•
Configuration via web-based management
•
Up to 3 VPN tunnels simultaneously
•
Starting of VPN via call
•
High electromagnetic compatibility
•
Starting of VPN via SMS
•
Authentication with X.509 certificates
•
Connection monitoring
•
Encryption of both SIM card PINs
•
Firewall
•
NAT table
•
10/100 Mbps
•
Autocrossing
•
UMTS mobile phone network: 850, 1900, and 2100 MHz
•
GSM mobile phone network: 850, 900, 1800, and 1900 MHz
•
Connection establishment via IP addresses
Commercial data
Item number
Packing unit
Note
Sales key
Product key
Catalog page
GTIN
Weight per piece (including packing)
Weight per piece (excluding packing)
Customs tariff number
Country of origin
Industrial UMTS/GSM router (850, 900, 1800, 1900, 2100 MHz) with Ethernet interface. Firewall,
NAT and IPsec VPN support. SMA-F female antenna connector. Sending via SMS. 6 digital
inputs, 4 digital outputs. Configuration via web-based management.
2314008
1 pc
Made to order (non-returnable)
DN25
DNC422
Page 395 (C-8-2015)
4046356594387
321.6 g
200 g
85176200
DE
Jul 13, 2024, 2:33 AM
Page 1 (16)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Phoenix Contact 2314008
Summary of Contents for Phoenix Contact 2314008
- Page 1 PSI-MODEM-3G/ROUTER - Router 2314008 https://www.phoenixcontact.com/us/products/2314008 Please be informed that the data shown in this PDF document is generated from our online catalog. Please find the complete data in the user documentation. Our general terms of use for downloads are valid.
-
Page 2: Technical Data
PSI-MODEM-3G/ROUTER - Router 2314008 https://www.phoenixcontact.com/us/products/2314008 Technical data Product properties Product type Cellular router Electrical properties Electrical isolation VCC // UMTS // Ethernet // PE Maximum power dissipation for nominal condition Mains type Cellular communication Test voltage data interface/data interface 1 kV (50 Hz, 1 min.) Test voltage data interface/power supply 1 kV (50 Hz, 1 min.) - Page 3 PSI-MODEM-3G/ROUTER - Router 2314008 https://www.phoenixcontact.com/us/products/2314008 Serial transmission speed 10/100 Mbps, auto negotiation Connection method RJ45 jack, shielded No. of channels Transmission length 100 m (shielded twisted pair) Protocols supported TCP/IP, UDP/IP, FTP, HTTP Auxiliary protocols ARP, DHCP, PING (ICMP), SNMP V1, SMTP...
- Page 4 PSI-MODEM-3G/ROUTER - Router 2314008 https://www.phoenixcontact.com/us/products/2314008 Material (Housing) PA 6.6-FR Environmental and real-life conditions Ambient conditions Degree of protection IP20 Ambient temperature (operation) -25 °C ... 65 °C (not aligned) Ambient temperature (storage/transport) -40 °C ... 85 °C Altitude ≤ 5000 m (For restrictions, see the manufacturer's declaration for...
- Page 5 PSI-MODEM-3G/ROUTER - Router 2314008 https://www.phoenixcontact.com/us/products/2314008 Signal ± 1 kV (Ethernet and antenna) Comments Criterion B Surge current load (surge) Standards/regulations EN 61000-4-5 Surge current load (surge) Input ± 1 kV (symmetrical) ± 2 kV (asymmetrical) Signal ± 1 kV (Data line, asymmetrical) ±...
- Page 6 PSI-MODEM-3G/ROUTER - Router 2314008 https://www.phoenixcontact.com/us/products/2314008 Drawings Connection diagram – 24V 0V I1 I2 Switching inputs Jul 13, 2024, 2:33 AM Page 6 (16)
-
Page 7: Schematic Diagram
PSI-MODEM-3G/ROUTER - Router 2314008 https://www.phoenixcontact.com/us/products/2314008 Schematic diagram Insert the SIM card Jul 13, 2024, 2:33 AM Page 7 (16) - Page 8 PSI-MODEM-3G/ROUTER - Router 2314008 https://www.phoenixcontact.com/us/products/2314008 Schematic diagram Insert the SIM card Jul 13, 2024, 2:33 AM Page 8 (16)
-
Page 9: Dimensional Drawing
PSI-MODEM-3G/ROUTER - Router 2314008 https://www.phoenixcontact.com/us/products/2314008 Dimensional drawing 114,5 POWER RESET SIM1 SIM2 PSI-MODEM-3G/ROUTER Ord.-No.2314008 Schematic diagram S I M S I M U T E / R O - 3 G D E M 4 0 0 - M O . -
Page 10: Connection Diagram
PSI-MODEM-3G/ROUTER - Router 2314008 https://www.phoenixcontact.com/us/products/2314008 Connection diagram S I M S I M U T E / R O - 3 G D E M 1 4 0 - M O P S I . 2 3 . - N o... - Page 11 PSI-MODEM-3G/ROUTER - Router 2314008 https://www.phoenixcontact.com/us/products/2314008 Schematic diagram Mounting Jul 13, 2024, 2:33 AM Page 11 (16)
- Page 12 PSI-MODEM-3G/ROUTER - Router 2314008 https://www.phoenixcontact.com/us/products/2314008 Schematic diagram POWER RESET SIM1 SIM2 PSI-MODEM-3G/ROUTER Ord.-No.2314008 Front view Jul 13, 2024, 2:33 AM Page 12 (16)
- Page 13 PSI-MODEM-3G/ROUTER - Router 2314008 https://www.phoenixcontact.com/us/products/2314008 Environmental product compliance EU RoHS Fulfills EU RoHS substance requirements Yes, No exemptions China RoHS Environment friendly use period (EFUP) EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration".
- Page 14 PSI-MODEM-3G/ROUTER - Router 2314008 https://www.phoenixcontact.com/us/products/2314008 Accessories PSI-GSM/UMTS-QB-ANT - Antenna 2313371 https://www.phoenixcontact.com/us/products/2313371 GSM UMTS antenna, with omnidirectional characteristic, 2 m antenna cable with SMA round connector PSI-CAB-GSM/UMTS- 5M - Antenna cable 2900980 https://www.phoenixcontact.com/us/products/2900980 Cellular antenna cable, 5 m in length, SMA (male) -> SMA (female), 50 ohm...
- Page 15 PSI-MODEM-3G/ROUTER - Router 2314008 https://www.phoenixcontact.com/us/products/2314008 PSI-CAB-GSM/UMTS-10M - Antenna cable 2900981 https://www.phoenixcontact.com/us/products/2900981 Cellular antenna cable, 10 m in length, SMA (male) -> SMA (female), 50 ohm impedance CSMA-LAMBDA/4-2.0-BS-SET - Surge protection device 2800491 https://www.phoenixcontact.com/us/products/2800491 Attachment plug with Lambda/4 technology as surge protection for coaxial signal interfaces.
- Page 16 Multiband omnidirectional antenna for wall or mast mounting, 0.6 GHz ... 6 GHz, gain: 3 dBi ... 7 dBi, degree of protection: IP66, connection: SMA (male), incl. 5 m connecting cable, mounting bracket, and mast clamps Phoenix Contact 2024 © - all rights reserved https://www.phoenixcontact.com Phoenix Contact USA...
