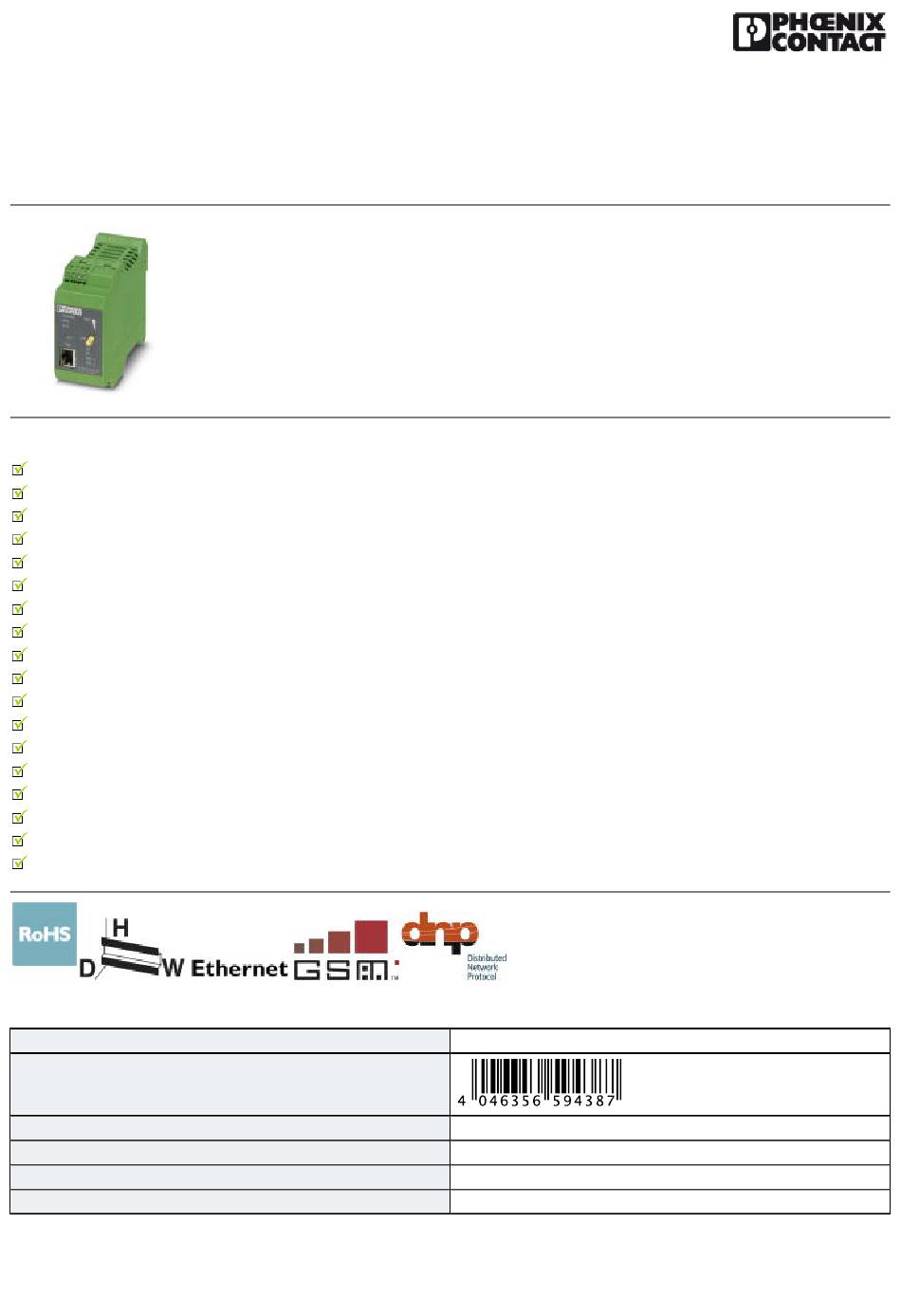

Router - PSI-MODEM-3G/ROUTER - 2314008
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Why buy this product
 Configuration via web-based management
 Up to three VPN tunnels simultaneously
 Starting of VPN via call
 Can be used worldwide
 2 SIM cards for maximum network availability
 High electromagnetic compatibility
 Starting of VPN via SMS
 Authentication with X.509 certificates
 Connection monitoring
 Encryption of both SIM card PINs
 Firewall
 NAT table
 10/100 Mbps automatic detection
 Autocrossing
 UMTS mobile phone network: 850, 1900, and 2100 MHz
 Data rates of up to 7.2 Mbps
 GSM mobile phone network: 850, 900, 1800, and 1900 MHz
 Connection establishment via IP addresses
Key Commercial Data
Packing unit
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
Industrial UMTS/GSM router (850, 900, 1800, 1900, 2100 MHz) with Ethernet interface. Firewall, NAT and
IPsec VPN support. SMA-F female antenna connector. Sending via SMS. 6 digital inputs, 4 digital outputs.
Configuration via web-based management.
1 STK
4046356594387
200.000 g
85176200
Germany
12/23/2016   Page 1 / 8
