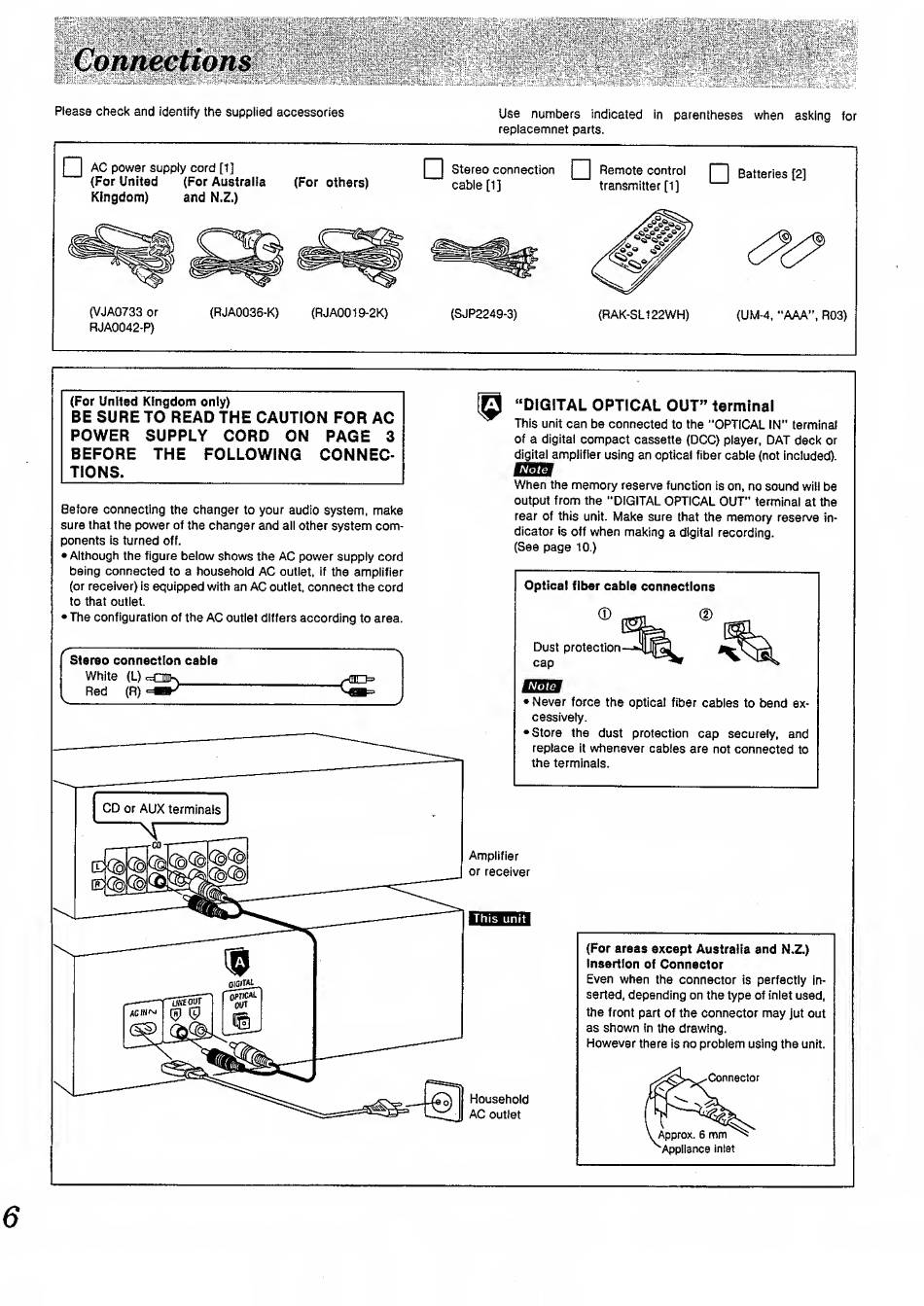

Technics SL-PD1010 Operating Instructions Manual page 6

Please check and identify the supplied accessories
Use numbers indicated in parentheses when asking for
repiacemnet parts.
j
~\
AC power supply cord [1]
{For United (For Australia (For others)
Kingdom) and N.Z.)
| | Stereo connection Q] Remote control I I Batteries [2]
cable [1] transmitter [1]
(VJA0733 or (RJA0036-K) (RJA0019-2K) (SJP2249-3)
RJA0042-P)
(RAK-SL122WH) (UM-4, "AAA", R03)
(For United Kingdom only)
BE SURE TO READ THE CAUTION FOR AC
POWER SUPPLY CORD ON PAGE 3
BEFORE THE FOLLOWING CONNEC-
TIONS.
Before connecting the changer to your audio system, make
sure that the power of the changer and ail other system com¬
ponents is turned off.
• Although the figure below shows the AC power supply cord
being connected to a household AC outlet, if the amplifier
(or receiver) is equipped with an AC outlet, connect the cord
to that outlet.
•The configuration of the AC outlet differs according to area.
/■
-
Stereo connection cable
>
White (L) cd~iiK
^ Red (R)
J
IS "DIGITAL OPTICAL OUT" terminal
This unit can be connected to the "OPTICAL IN" terminal
of a digital compact cassette (DCC) player, DAT deck or
digital amplifier using an optical fiber cable (not included).
BBS
When the memory reserve function is on, no sound will be
output from the ''DIGITAL OPTICAL OUT" terminal at the
rear of this unit. Make sure that the memory reserve in¬
dicator is off when making a digital recording.
(See page 10.)
Optical fiber cable connections
• Never force the optical fiber cables to bend ex¬
cessively.
•Store the dust protection cap securely, and
replace it whenever cables are not connected to
the terminals.
Amplifier
or receiver
This unit
Household
AC outlet
(For areas except Australia and N.Z.)
Insertion of Connector
Even when the connector is perfectly in¬
serted, depending on the type of inlet used,
the front part of the connector may jut out
as shown in the drawing.
However there is no problem using the unit.
