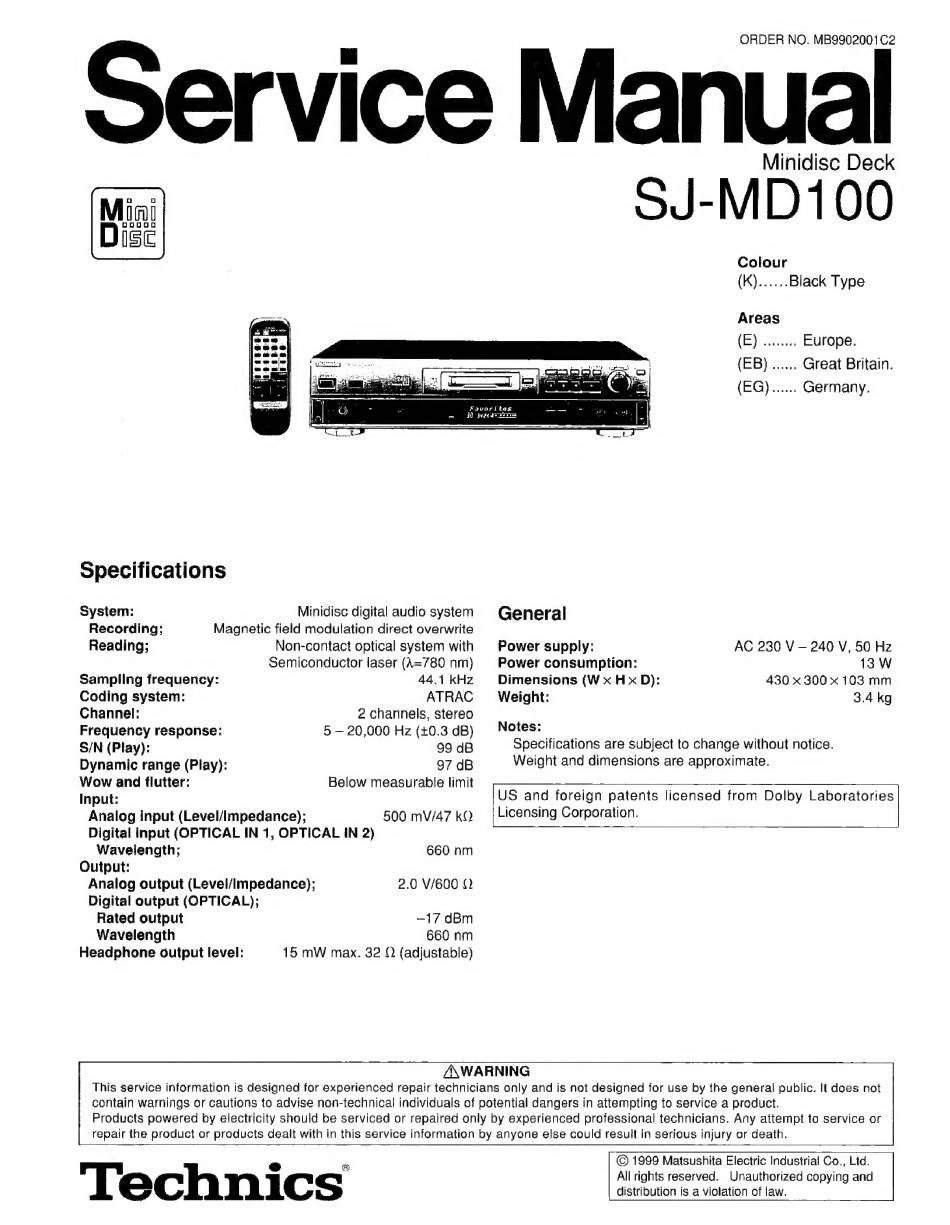

Technics SJ-MD100 Service Manual

Service Ma
ORDER МО. МВ9902001С2
nual
Minidisc Deck
oJ-MD100
Colour
(K)...... Black Type
(Esas. Europe.
(ЕВ) ...... Great Britain.
(EG)...... Germany.
Favorita
- dn
Specifications
System: Minidisc digital audio system
Recording; Magnetic field modulation direct overwrite
Non-contact optical system with
Semiconductor laser (1-780 nm)
44.1 kHz
ATRAC
Reading;
Sampling frequency:
Coding system:
Channel: 2 channels, stereo
Frequency response: 5 — 20,000 Hz (50.3 dB)
S/N (Play): 99 dB
Dynamic range (Play): 97 dB
Wow and flutter: Below measurable limit
Input:
Analog input (Level/Impedance);
Digital input (OPTICAL IN 1, OPTICAL IN 2)
500 mV/47 КО
Wavelength; 660 nm
Output:
Analog output (Level/Impedance); 2.0 V/600 0
Digital output (OPTICAL);
Rated output -17 dBm
Wavelength 660 nm
Headphone output level: 15 mW max. 32 0 (adjustable)
Қ кит:
General
Power supply: AC 230 V — 240 V, 50 Hz
Power consumption: 13W
Dimensions (W x H x D): 430 х 300 х 103 mm
Weight: 3.4 kg
Notes:
Specifications are subject to change without notice.
Weight and dimensions are approximate.
US and foreign patents licensed from Dolby Laboratories
Licensing Corporation.
A\WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. | does not
contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
Technics
© 1999 Matsushita Electric Industrial Co., Ltd.
All rights reserved. Unauthorized copying and
distribution is a violation of law.
