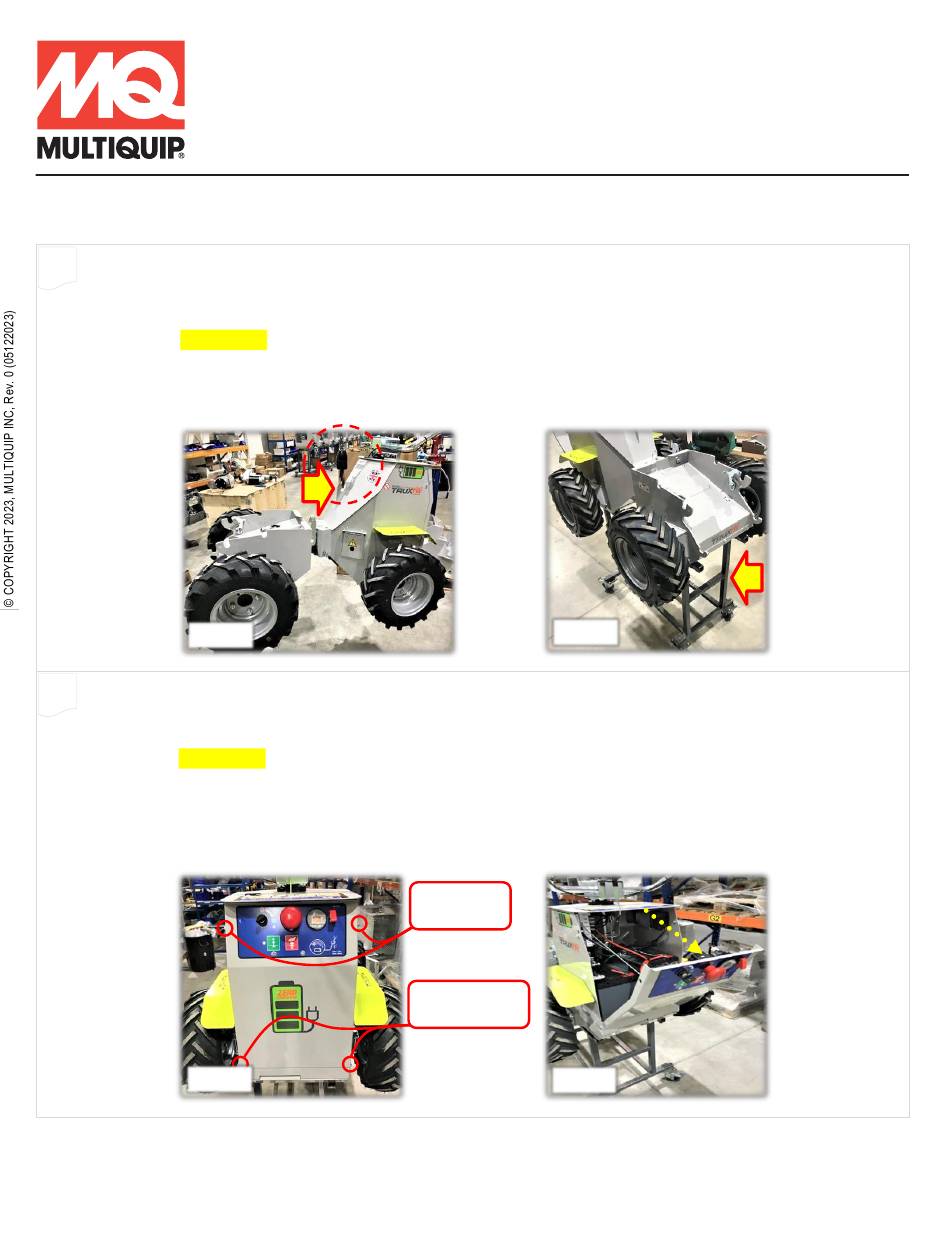

(Err 80) CODE - POTENTIOMETER SETUP
1
1)
Using safe methods, lift or jack the machine off the floor and use suitable
supports under the chassis so all wheels are free off the ground. Ref.
Fig. 1 & 2
CAUTION: Ensure safe methods of lifting and supporting are used and that
the machine is stable before starting any other work. Failure to use proper
methods may result in damage to machinery or injury to persons.
Fig. 1
2) On the rear panel, loosen the two bottom screws and remove the two
2
top screws. Pull the panel from the top to gain access to the inside of
the machine. Ref. Fig. 3 & 4
CAUTION: Care should be taken to not short the battery terminals with
metal tools when working inside the machine. Rubber, cardboard or other
none conductive materials can be placed over the battery terminals for extra
protection against shorting terminals.
Fig. 3
TB12-PE-SE Err 80 Code – Potentiometer Setup
Product Group:
Model: TB12-PE, SE
Fig. 2
Remove top
two screws
Loosen bottom
two screws
Fig. 4
1 of 4
