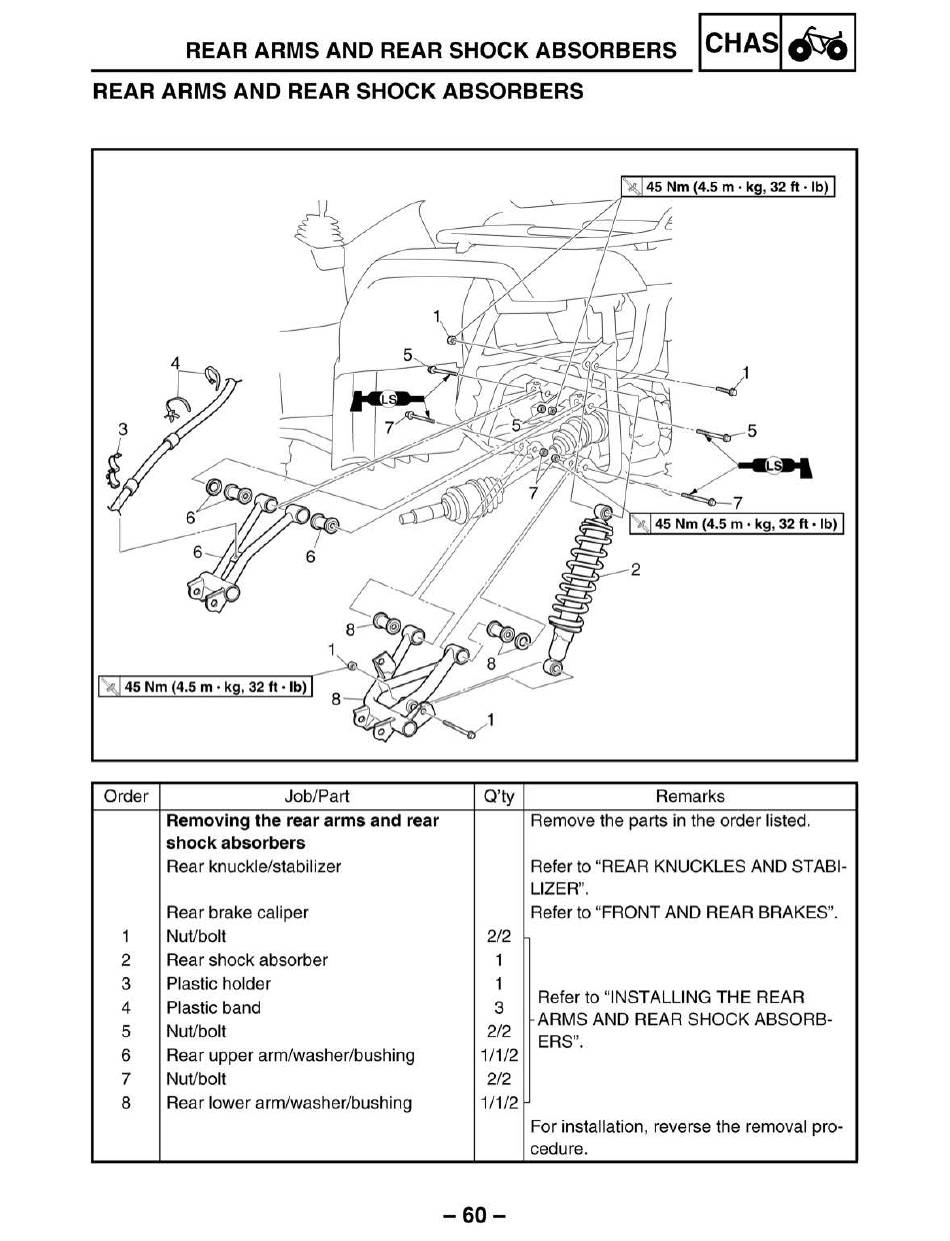

REAR ARMS AND REAR SHOCK ABSORBERS
CHAS
fiJ'6
REAR ARMS AND REAR SHOCK ABSORBERS
45 Nm (4.5 m · kg, 32
ft·
lb)
\
1
5
45 Nm (4.5 m · kg, 32
ft·
lb)
Order Job/Part Q'ty Remarks
Removing the rear arms and rear
Remove the parts in the order listed.
shock absorbers
Rear knuckle/stabilizer
Refer to "REAR KNUCKLES AND STABI-
LIZER".
Rear brake caliper
Refer to "FRONT AND REAR BRAKES".
1
Nut/bolt
2/2
2
Rear shock absorber
1
3
Plastic holder
1
4 Plastic band 3
Refer to "INSTALLING THE REAR
~
ARMS AND REAR SHOCK ABSORB-
5 Nut/bolt
2/2
ERS".
6 Rear upper arm/washer/bushing 1/1/2
7 Nut/bolt
2/2
8 Rear lower arm/washer/bushing
1/1/2
For installation , reverse the removal pro-
cedure.
-60-
