2 Usage

2.1

Indicated Magnet Location

A magnet is used to interact with the Smart Barrier node. The switch that the magnet (Part 5) operates
on the Smart Barrier Node is located in the position as shown below.
Wherever instructed to tap the node using the magnet, do so at the spot indicated by the purple circle
(this is where the magnetic sensor is location). A tap means swiping the magnet past the magnetic
sensor or holding the magnet at the sensor for <1 second. Double taps must be performed within 3
seconds.

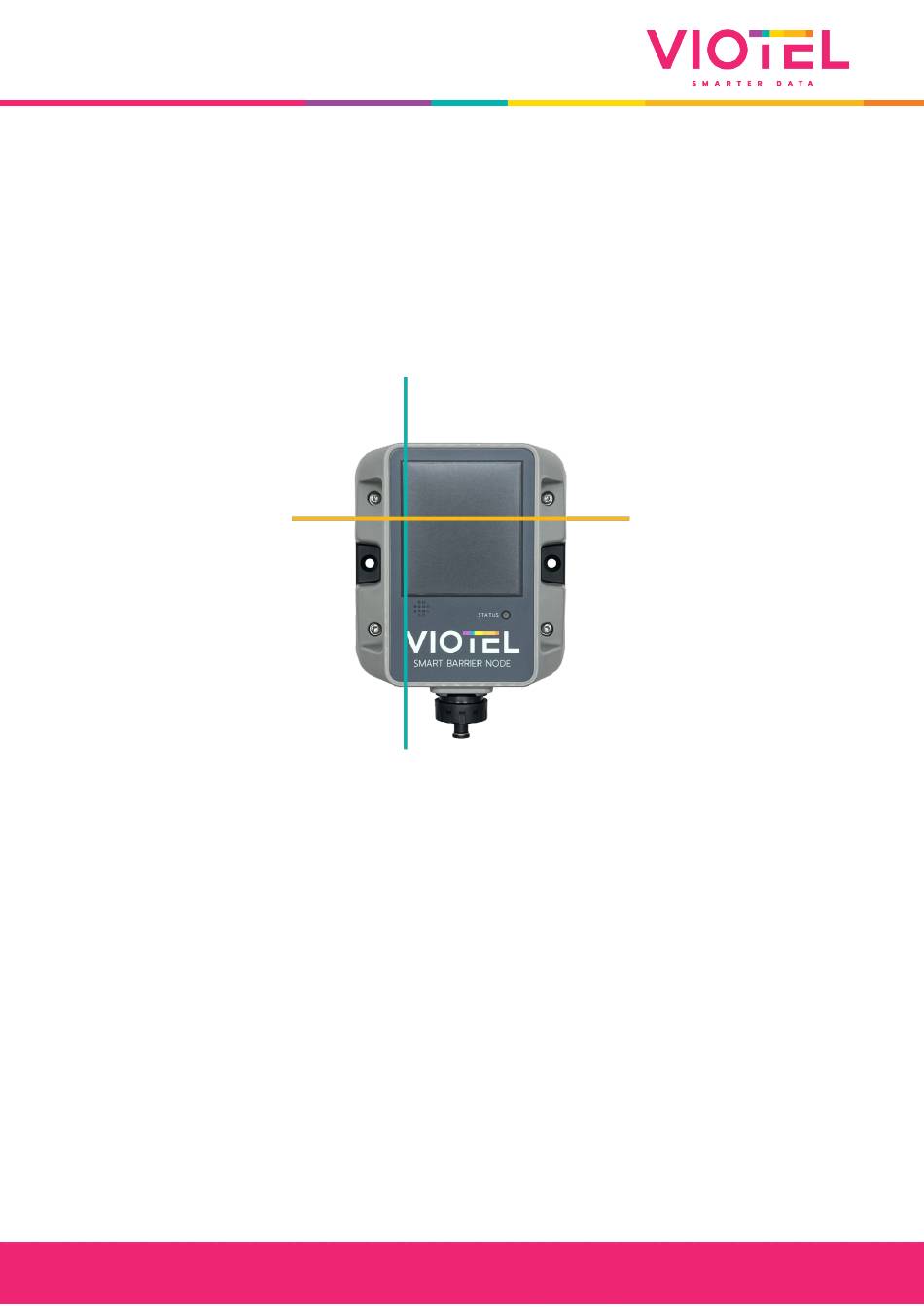

Figure 5: Photo highlighting location of the magnet for Smart Barrier Node

2.2 Required Tools

Hand tools specific to your crash barrier are to be selected by the installation technician. Viotel
recommends the following tools and consumables for installation of the Smart Barrier Node with
strain band on to a wire rope barrier.
2x 7mm spanners
•
• 1x 8mm spanner
1x 3mm Allen key
•
• 1x coil spring compressor clamp
• Zip ties (plastic & stainless steel)
Contact Viotel for any support required.
