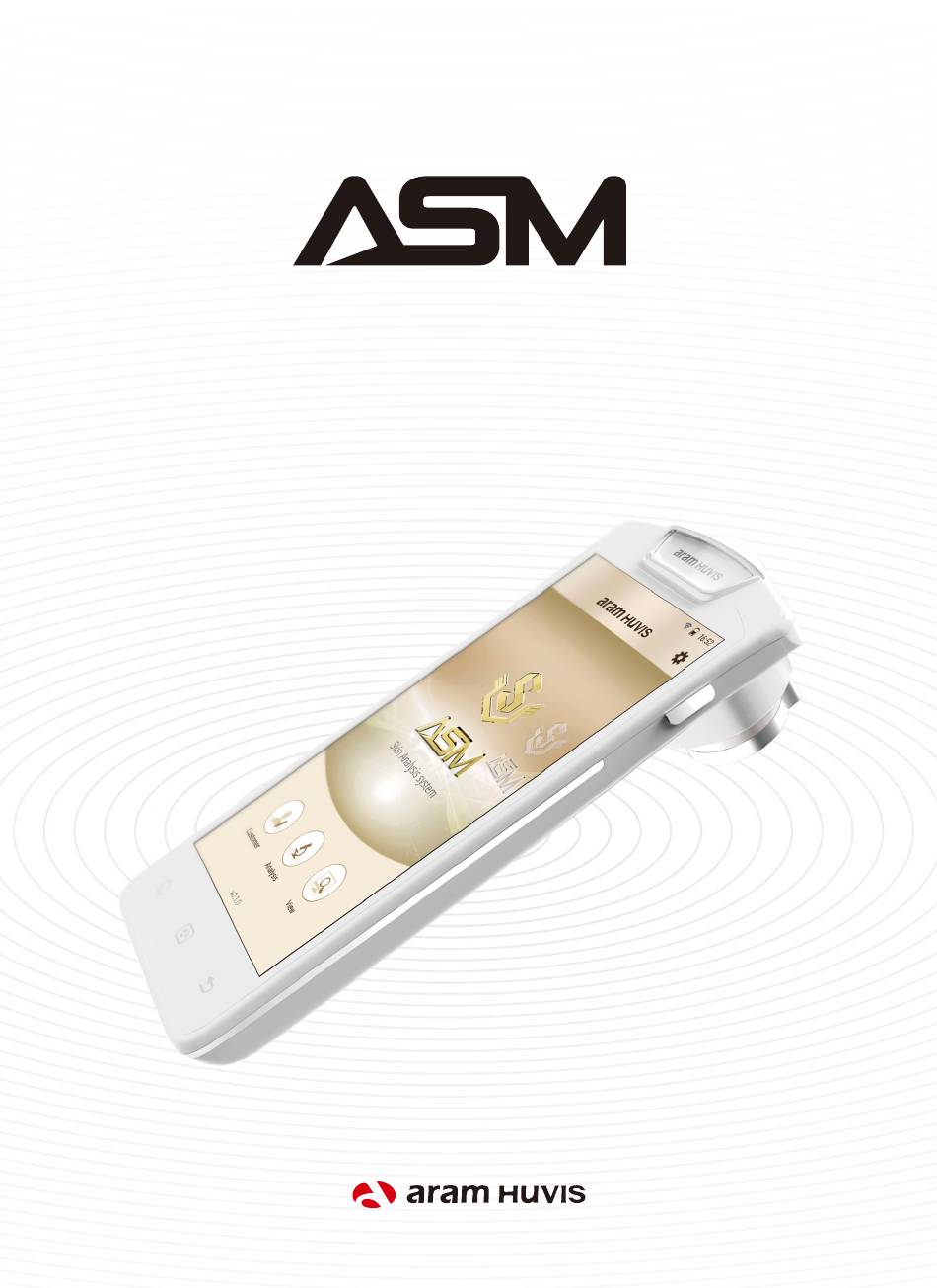

- Page 1 User Manual...
-
Page 2: Table Of Contents
Contents Components H/W Parts Device Functions Power On/Off Battery / Status LED Indication System Settings Date & Time Wi-Fi Application ⅰ. Application Settings ⅱ. Customer ⅲ. Switching lens Skin Analysis (ASM-100 Lens) Moisture Sebum Pore Melanin Acne Wrinkle Sensitivity Summary ⅳ. -
Page 3: Components
Components Components Total 4 lenses Skin lens Hair lens Hair lens Hair lens (ASM 100) (ASM 202) (ASM 203) (ASM 204) Main unit with skin lens (ASM 100) Sebum paper Cradle Charger (100ea) USB cable Cleaning cloth Manual Air blower... -
Page 4: H/W Parts
H/W Parts Device Functions ASM lens LED Indicator Volume up & down button On/off button Lens module change button X1 lens USB slot (DC 5V 3A) -
Page 5: Power On/Off
H/W Parts Power On/Off To turn on & off the power Press the power button and hold. Then “LED Indicator” will be twinkle and turn to white. Charger can be used for American type & European type. The default is European type. Then European type is disassembled Push the plug up. -
Page 6: Battery / Status Led Indication
H/W Parts Battery / Status LED Indication Status LED Deco LED CAMERA POSITION STATUS STATUS LED DECO LED In use While turning it on Blue light Light on In use When running the app Light on Displayed only on the indicator In use Low battery at the top of the LCD screen... -
Page 7: System Settings
System Settings Date & Time Touch button. Go to "Date & time" Press button to return to homepage. Select the date and Check if the setting is Go to "Set date". touch “OK” button. correctly applied. - Page 8 System Settings Date & Time Touch “Select time Select proper time zone. Check if the setting is zone” correctly applied. Change into the current Touch “Set time”. Check if the setting is time and touch “OK” correctly applied. button.
-
Page 9: Wi-Fi
System Settings Wi-Fi Touch button. Touch “Wi-Fi”. Turn on toggle switch. Select Wi-Fi Among the lists, select Wait until the device is the Wi-Fi connection connected to Wi-Fi. you could use. -
Page 10: Application
Application Application Settings Touch button. Go to "General Available to change Settings". Language, Version and Email setting. Select skin type and Register corresponding Proceed update at analysis criteria at skin products at recommended information. analysis setting. product setting. -
Page 11: Ⅱ. Customer
Application Customer Touch "Customer". Touch to register Input the information. new customer. After putting all Select created user Touch button to start information, touch profile. analyzing. -
Page 12: Ⅲ. Switching Lens Skin Analysis (Asm-100 Lens)
Application Taking off the lens ASM-100 Press switching button located Turn the lens about 45 degrees below the lens for switching the lens. counter-clockwise while pressing the switching button to take off the lens. Inserting lens To insert the lens, match the red dot Until the correct lens is inserted, on lens and gray dot on device, lens indicating label will blink. -
Page 13: Moisture
Application Moisture ASM-100 After checking the message Touch the button. Please "Touch to skin please", push the sensor wait until vibration and sound. completely to marked area of the face. * Never put the sensor on the skin before the message "Touch to skin please". * All surface of the sensor should be pushed completely. -
Page 14: Sebum
Application Sebum ASM-100 U-zone T-zone ASM-100 ASM-100 ASM-100 Capture image of pink Press pink part of Press pink part of part of sebum paper. sebum paper on U-Zone sebum paper on T-Zone for about 2~3 seconds. for about 2~3 seconds. ASM-100 ASM-100 ASM-100... -
Page 15: Pore
Application Pore ASM-100 ASM-100 ASM-100 Check capturing part Focus on image which Press button to and press button to you wish to capture. analyze. get into capture mode. Customer Sample ASM-100 Result will appear. Touch button to Touch button to Press button to compare compare taken image convert taken pore... -
Page 16: Melanin
Application Melanin ASM-100 ASM-100 ASM-100 Check capturing part Focus on image which Press button to and press button to you wish to capture. analyze. get into capture mode. Customer Sample ASM-100 Result will appear. Touch button to Press button to compare compare taken image against sample. -
Page 17: Acne
Application Acne ASM-100 ASM-100 ASM-100 Check capturing part Focus on image which Press button to and press button to you wish to capture. analyze. get into capture mode. Customer Sample ASM-100 Result will appear. Touch button to Press button to compare compare taken image against sample. -
Page 18: Wrinkle
Application Wrinkle ASM-100 ASM-100 ASM-100 Check capturing part Focus on image which Press button to and press button to you wish to capture. analyze. get into capture mode. * For wrinkle photo, take picture of outer eye area in widthways to check crow's feet. -
Page 19: Sensitivity
Application Sensitivity ASM-100 ASM-100 ASM-100 Check capturing part Focus on image which Press button to and press button to you wish to capture. analyze. get into capture mode. Customer Sample ASM-100 Result will appear. Touch button to Press button to compare compare taken image against sample. -
Page 20: Summary
Application Summary ASM-100 ASM-100 Touch button or "Show All Result" to see overall result. You can check result. Care-needed part will be in red. -
Page 21: Ⅳ. Switching Lens Hair Analysis (Asm-202 Lens)
Application Taking off the lens ASM-202 Press switching button located Turn the lens about 45 degrees below the lens for switching the lens. counter-clockwise while pressing the switching button to take off the lens. Inserting lens To insert the lens, match the red dot Until the correct lens is inserted, on lens and gray dot on device, lens indicating label will blink. -
Page 22: Hair Loss Status
Application Hair Loss Status X1 Lens X1 Lens X1 Lens Touch button. Check capturing part Capture front & side images and click and press button to getting into analysis mode get into capture mode. X1 Lens Result will appear. Select hair loss type Click to finish and progress similar to... -
Page 23: Scalp Status
Application Scalp Status ASM-202 ASM-202 ASM-202 Check capturing part Focus on image which Press button to and press button to you wish to capture. analyze. get into capture mode. Customer Customer Sample Sample ASM-202 Check the result. Select type and Click to finish To move on next page, slide... -
Page 24: Hair Density
Application Hair Density ASM-202 ASM-202 ASM-202 Check capturing part Focus on image which Select and touch and press button to each and every pore that you wish to capture. get into capture mode. has a single hair from the captured image. ASM-202 Similarly, do the same Click... -
Page 25: Keratin Of Scalp
Application Keratin of Scalp ASM-202 ASM-202 ASM-202 Check capturing part Focus on image which Press button to and press button to you wish to capture. analyze. get into capture mode. Customer Customer Sample Sample ASM-202 Click to finish Check the result. Select type and To move on next page, slide sample image similar to... -
Page 26: Scalp Sensitivity
Application Scalp Sensitivity ASM-202 ASM-202 ASM-202 ASM-202 Check capturing part Focus on image which Press button to and press button to you wish to capture. analyze. get into capture mode. Customer Customer ASM-202 Click to finish Check the result. Select type and To move on next page, slide sample image similar to analysis and save. -
Page 27: Ⅴ. Switching Lens Hair Analysis (Asm-203 Lens)
Application Taking off the lens ASM-203 Press switching button located Turn the lens about 45 degrees below the lens for switching the lens. counter-clockwise while pressing the switching button to take off the lens. Inserting lens To insert the lens, match the red dot Until the correct lens is inserted, on lens and gray dot on device, lens indicating label will blink. -
Page 28: Hair Thickness
Application Hair Thickness ASM-203 ASM-203 ASM-203 Check capturing part Focus on image which Draw a line from one and press button to you wish to capture. end to the other end on get into capture mode. hair from enlarged captured image. ASM-203 If select from... -
Page 29: Hair Pore Status
Application Hair Pore Status ASM-203 ASM-203 ASM-203 Check capturing part Focus on image which Press button to and press button to you wish to capture. analyze. get into capture mode. Customer Customer Sample Sample ASM-203 Select type and Click to finish Check the result. -
Page 30: Ⅵ. Switching Lens Hair Analysis (Asm-204 Lens)
Application Taking off the lens ASM-204 Press switching button located Turn the lens about 45 degrees below the lens for switching the lens. counter-clockwise while pressing the switching button to take off the lens. Inserting lens To insert the lens, match the red dot Until the correct lens is inserted, on lens and gray dot on device, lens indicating label will blink. -
Page 31: Cuticle Status
Application Cuticle Status ASM-204 ASM-204 Check capturing part Focus on image which Press button to and press button to you wish to capture. analyze. get into capture mode. Customer Customer ASM-204 Select type and Click to finish Check the result. sample image similar to To move on next page, slide analysis and save. -
Page 32: Summary
Application Summary The results will be shown On second page, the description in two pages. of each parameter would be available by clicking ＾icon. Once you select "Show Available to check product image. Recommended Product", product image will pop up... -
Page 33: Ⅶ. Send Result -Email
Application Send Result - Email Before sending Email, Touch Go to "Send Email". the device shall be connected to Wi-Fi. Select “Gmail” Select email account. Share the result by sending email. -
Page 34: Ⅷ. Mirroring
Application Mirroring Touch button. Go to "General Settings". Turn on mirroring option. Transfer to app download page using QR code. - Page 35 Application Mirroring Install “Aram Viewer” Move to “Wi-Fi” setting. on device which you will be mirroring. Select device’s SSID. Mirroring will be started.
-
Page 36: Ⅸ. View Mode
Application View Mode Touch “View”. You can analyze with multiple modes. You can compare 2 pictures. You can mark on screen using pen. -
Page 37: Warranty
Warranty The product undergoes strict quality management and inspection process before production and introduction to market. In case of functional or operational defect occurs under normal condition of use within 10 days after purchase, we will repair it for free or replace in new product. When this product goes out under the normal use, we will repair it free of charge under warranty. - Page 38 Warranty Service request form Date of Company purchase Contact person Address : Tel : Product name, serial No : Problems : SHIPPING ADDRESS : #801 Byucksan Technopia, 560, Dunchon-daero, Jungwon-gu, Seongnam-si, Gyeonggi-do, 13230 Republic of Korea Tel: 070-4687-1712 / Fax: 031-732-6330 / Email: support@aramhuvis.com http://www.aramhuvis.com...
- Page 39 Memo...
- Page 40 HEAD OFFICE #401~402 Bundang Seoul National University Hospital Health Care Innovation Park, 172, Dolma-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, 13605 Republic of Korea PRODUCTION DIVISION & FACTORY #909 Byucksan Technopia, 560, Dunchon-daero, Jungwon-gu, Seongnam-si, Gyeonggi-do, 13230 Republic of Korea Tel: 070-4687-1712 / Fax: 031-732-6330 / Email: info@aramhuvis.com http://www.aramhuvis.com...
