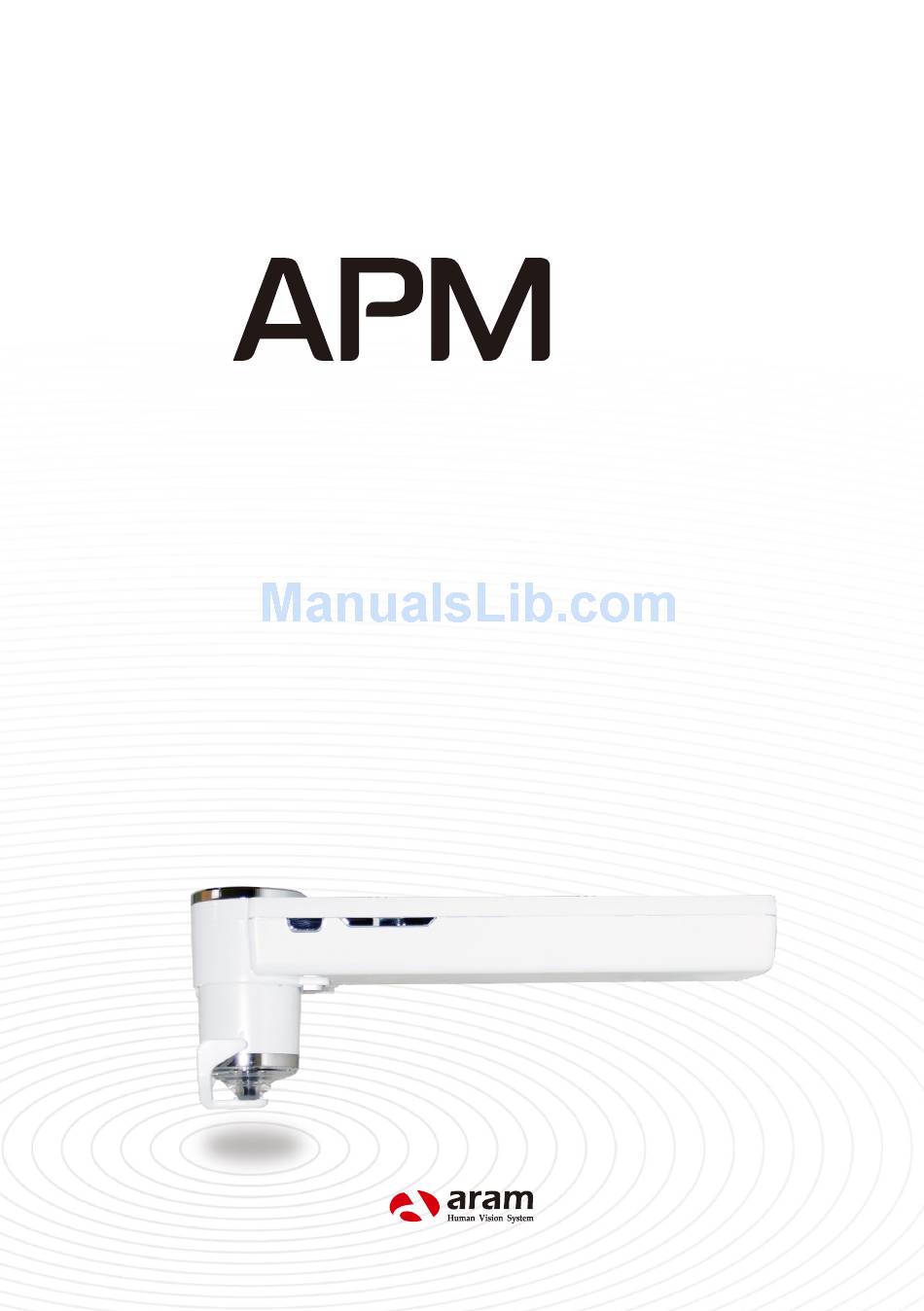

- Page 1 -200 User Manual...
-
Page 2: Table Of Contents
Content A. Components B. H/W Parts ⅰ . Both Sides ⅱ.Settings C. System Settings ⅰ . Date & Time ⅱ . Wi-Fi ⅲ.Screen Timeout ⅳ .Language D. Application ⅰ . Settings ⅱ.Full Diagnosis Hair Loss Status Scalp Status Keratin of Scalp Exposure of Scalp’s Vessel Hair Thickness Hair Pore Status... -
Page 3: Components
Components lens (APM 202) lens (APM 203) lens (APM 204) Main unit with hair lens(APM-200) Cradle Battery (2EA) Charger USB cable Cleaning cloth Manual Air blower A. Components... -
Page 4: H/W Parts
H/W Parts Both Sides APM lens Indicate LED Flash button Volume up & down button Flash X1 lens On/off button Lens module change button HDMI slot USB slot B. H/W Parts - Both Sides... -
Page 5: Ⅱ.settings
H/W Parts Settings Insert the battery Open the battery cover by pushing it up with finger. Insert the battery and gently press the battery into place. Close the cover. To turn on & off the power Press and hold “power” button. Then “Indicate LED”... - Page 6 H/W Parts Settings Charger can be used for Amercian type & European type. The default is European type . Push the plug up. Then 220V European type is disassembled and you can see the 110V-220V American type inside of the charger. Choose the one you want to use and connect USB cable in adaptor.
-
Page 7: System Settings
System Settings Date & Time Touch button. Press button. Touch “Date & time”. Touch “Set date”. Change the date and touch Please check the setting is “Set” button. correctly applied. C. System Settings - Date & Time... - Page 8 System Settings Date & Time Touch “Select time zone” Change into the current time Please check the setting button. zone . is correctly applied. Change into the current time Touch “Set time”. Please check the setting and touch “Set” button. is correctly applied.
-
Page 9: Ⅱ . Wi-Fi
System Settings Wi-Fi Touch “Wireless & networks”. Touch “Wi-Fi settings”. Check the square box. Wi-Fi list will be appeared. Among the lists, select the Wi-Fi Wait until the device is connection you could use. connected to with Wi-Fi. C. System Settings - Wi-Fi... -
Page 10: Ⅲ.screen Timeout
System Settings Wi-Fi Once the device is connected to Wi-Fi, you can see the Wi-Fi signal as left image. Wi-Fi Usage E - mail ☞ In order to send the analysis data. Software update ☞ In order to update the software version. Screen Timeout Touch the time you want to Touch “Display”. -
Page 11: Ⅳ .Language
System Settings Language Touch “Language & keyboard”. Touch “Select language”. Among the lists, touch your language. C. System Settings - Language... -
Page 12: Application
Application Settings Press button. Touch "SETTINGS". Language, version , email setting is available. D. Application - Settings... -
Page 13: Crm
Application CRM - Full Touch "START DIAGNOSIS". Touch "FULL DIAGNOSIS". If you are new customer, touch “NEW CUSTOMER”. Input the information as below. After registering all information, Check the diagnosis touch “SAVE” button. - Full Name, Phone Number, Email address menu and touch "OK". - Page 14 Application CRM - Simple Touch “SIMPLE DIAGNOSIS” button. Select the “GENDER” and “AGE” group. “START DIAGNOSIS” D. Application - CRM...
-
Page 15: Hair Loss Status
Application Hair Loss Status Touch to activate camera. Touch to take image and to adjust focus. Touch “SCAN” to diagnosis. Check the result. D. Application - Hair Loss Status... -
Page 16: Scalp Status
Application Scalp Status Touch to activate camera. Touch “SCAN” to density mode. Touch to take image and to adjust focus. Touch save to density data. Touch “SAVE” to comparison data. Check the result. - Count number of hair by touching “1,2,3”. - Fling the menu to see different type. -
Page 17: Keratin Of Scalp
Application Keratin of Scalp Touch to activate camera. Touch to take image and to adjust focus. Touch “SCAN” to measure. Check the result. D. Application - Keratin of Scalp... -
Page 18: Exposure Of Scalp's Vessel
Application Exposure of Scalp’s Vessel Touch to activate camera. Touch to take image and to adjust focus. Check the result. Touch “SCAN” to analyze. D. Application - Exposure of Scalp’s Vessel... -
Page 19: Hair Thickness
Application Hair Thickness - Auto Measurement Touch to activate camera. Touch to take image. Touch “SCAN” to measure the hair thickness. Please mark the hair area point The program will automatically near the top image. calculate the hair distance within range. D. - Page 20 Application Hair Thickness - Auto Measurement Touch “Manual” to measure Move the white square into the Touch the range and touch the hair thickness. range you want to measure. “SAVE”. Check the result. D. Application - Hair Thickness...
-
Page 21: Hair Pore Status
Application Hair Pore Status Touch to activate camera. Touch to take image. Touch to full image. Check the result. Touch “COMPARE” to compare mode. D. Application - Hair Pore Status... -
Page 22: Cuticle Status
Application Cuticle Status Touch to activate camera. Touch to take image. Touch “1K(HML)” to 1000x mode. Check the result. Touch to full image. Touch “COMPARE” to compare mode. D. Application - Cuticle Status... -
Page 23: Result
Application Result Fling the screen to go to next page. Touch icon. Touch to show “Hair image” and “product”. D. Application - Result... -
Page 24: Send Result Ⅰ . Email
Application Send Result - Email In SETTINGS page, touch “7.Email setting”. Touch “Mail account”. Select the mail account to After select the mail account, register on the list. please Input the ID only and password. Then touch “OK”. D. Application - Send Result... - Page 25 Application Send Result - Email Press button. Touch button. Touch “Wireless & networks”. Check the square box. In “Send result” page, “Receiver”s email address will be touch “Email”. appeared with your CRM information. Otherwise, input the email address. D. Application - Send Result...
-
Page 26: Ⅱ.mirroring
Application Send Result - Mirroring Press button. Touch "SETTINGS". It is able to connect to “Android Viewer” & “iOS Viewer” system when AP success is shown up on the screen. With your mobile device, In your mobile device go to Wi-Fi Mirroring system is started. -
Page 27: Troubleshooting & Faq
Troubleshooting & FAQ I cannot turn on the device. Connect and charge the device (or the battery) using the adaptor provided the supplier. (The battery charging indicator will be shown on the system main page.) I cannot power on the device even the battery is still full. The battery might be dislocated on the device. - Page 28 Troubleshooting & FAQ The touchscreen doesn’t react to my finger commands. Before using for the first time remove the protective plastic film. I cannot connect to Blue-tooth. Make sure to use the Bluetooth hosting devices that have Bluetooth certified with the logo. You may need an external Bluetooth dongle for those devices that do not have Bluetooth feature.
-
Page 29: Warranty
Warranty The product undergoes strict quality management and inspection process before production and introduction to market. In case of functional or operational defect occurs under normal condition of use within 10 days after purchase, we will repair it for free or replace in new product. When this product goes out under the normal use, we will repair it free of charge under warranty. - Page 30 Warranty Service request form Date of Company purchase Contact Person Address : Tel : Product name, serial No : Problems : Shipping address: 801-ho , 560 Dunchon-daero, Jungwon-gu Seongnam-si Gyeonggi-do 13230 KOREA. E-mail : support@aramhuvis.com Tel : +82 70 4687 1712 / Fax : +82 31 732 6330 F.
- Page 31 Memo...
- Page 32 801-ho , 560 Dunchon-daero, Jungwon-gu Seongnam-si Gyeonggi-do 13230 KOREA. E-mail : info@aramhuvis.com...
