Thule 821 LOW RIDER Manual

1
Recommended Mounting
Hardware 1/4" or (6mm)
bolts or screws, fender
washers, and locking nuts.
3
5
Drill 4 places using 5/16" or 8mm drill bit
501-5329-03

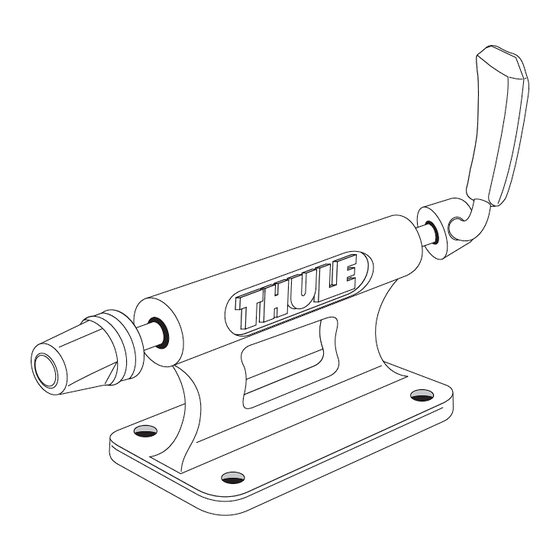

821 LOW RIDER
Low Rider attaches securely
to flat surfaces.
• Align block with drilled holes.
• Tighten hardware securely.
Test installation by pulling
and shaking block.
• With lever open, tighten nut
until the lever closes with
some resistance.
• Loosen or tighten the nut as
needed so that lever closes
with some resistance.
DRILLING TEMPLATE - ACTUAL SIZE OF TEMPLATE SHOULD BE 3 15/16" x 2 1/4"
2
4
• Set the bicycle forks onto the skewer.
Test security by tugging at forks. If forks can move out
of the skewer, open lever and tighten the nut slightly.
Close lever again with firm pressure. Repeat if necessary.
When printing from Acrobat Reader, please
make sure that "Page Scaling" is selected
to "None".
NOTE: If you do not select "None" in
the "Page Scaling" option, the
drillling template will not be to
actual size.
Use the template below to scribe four
drilling points.
• 5/16" (8mm) drill bit recommended.
• Always check handlebar
clearance before attaching
block.
1 of 3
