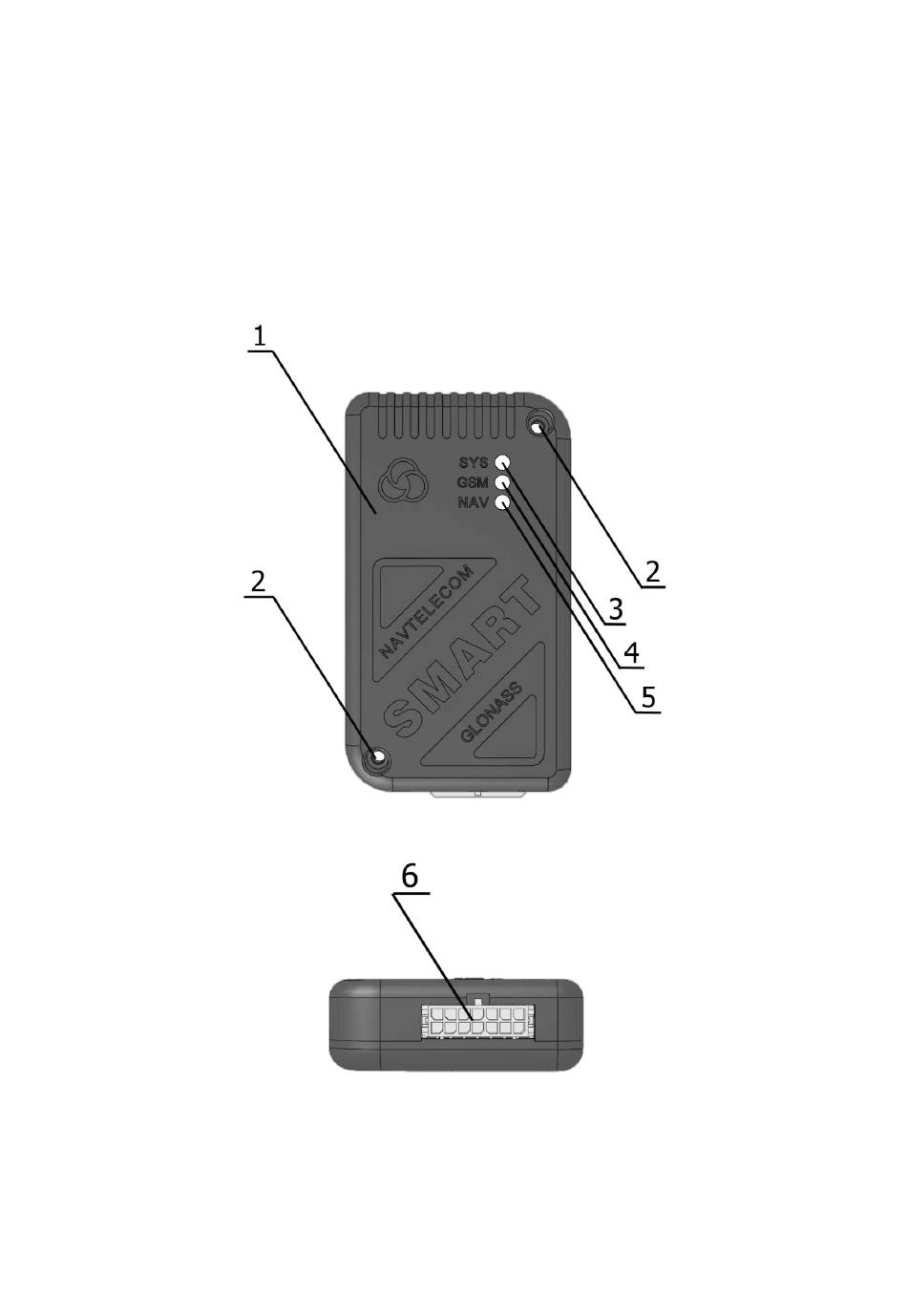

The device consists of the following elements (see figures 11-14):
1) front cover;
2) fixing hole;
3) system LED indicator;
4) GSM LED indicator;
5) GLONASS / GPS LED indicator;
6) 14 pin connector;
7) MiniUSB connector;
8) SIM-card 1 ejector holder;
9) SIM-card holder 1 (external);
10) back cover;
11) fixing screw of the back cover - 4 pcs.
1.7. Device components
Figure 11
Figure 12
