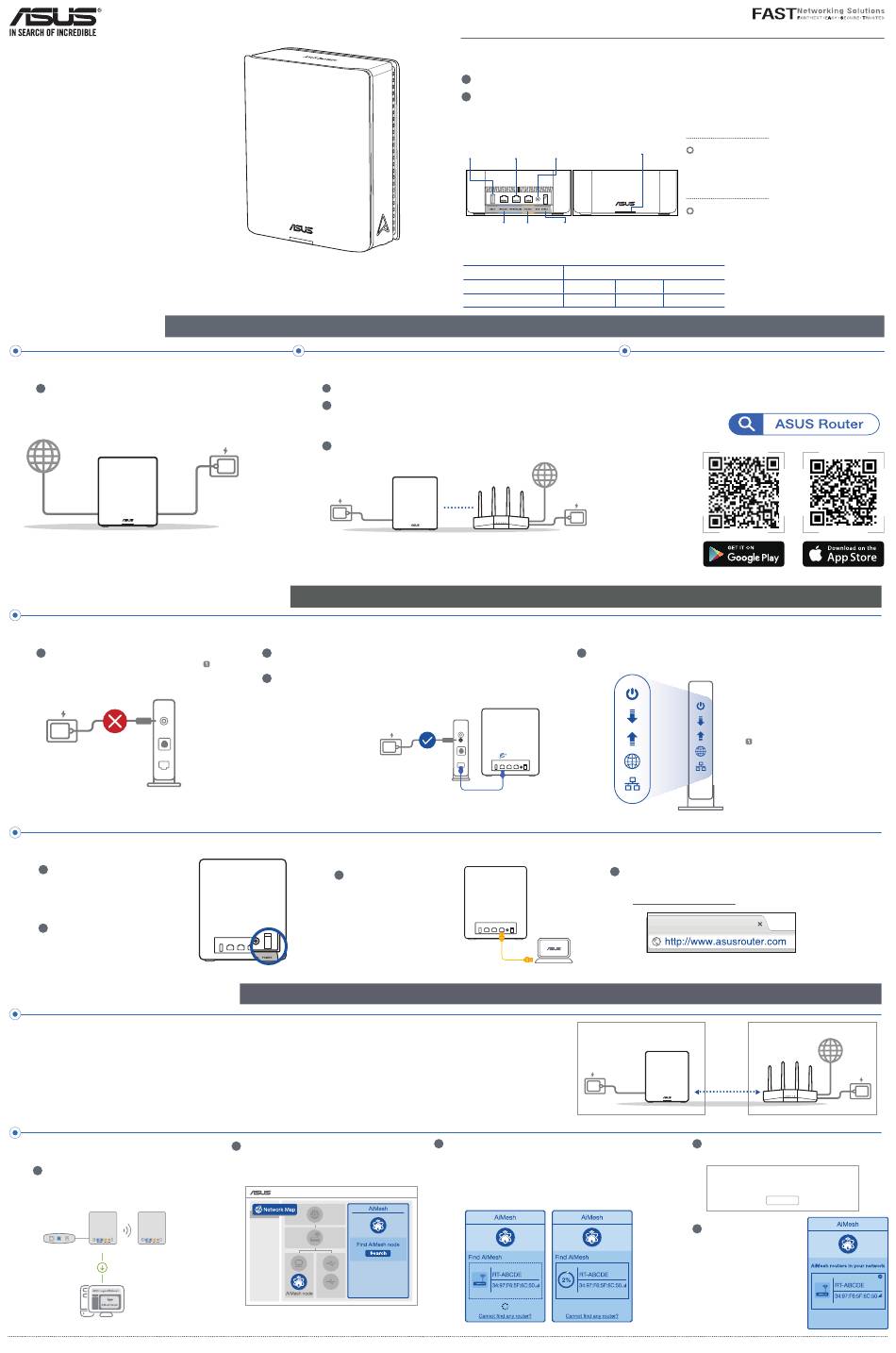

Asus ZenWiFi BT10 Quick Start Manual

Quick
Start Guide

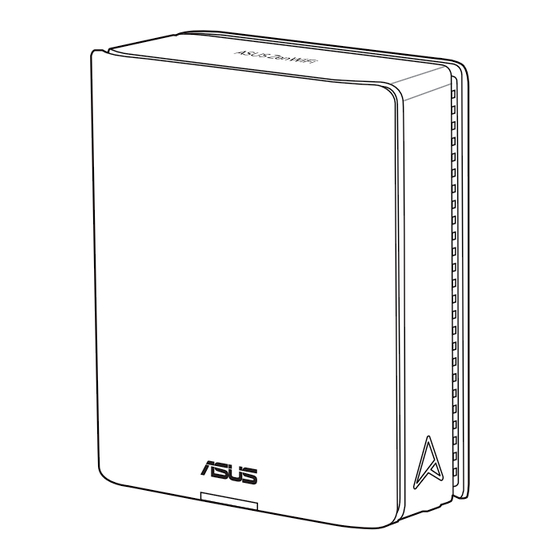

ASUS ZenWiFi BT10
BE18000 Tri Band WiFi Router
Model: BT10
* If no 6GHz SSID is displayed, please check whether your OS and client device are fully
licensed to support the newly released 6GHz band. You can check with your OS and
client device provider for Wi-Fi 6E driver release schedule.
Before Setup
01 Setting up a standalone router
Go to ONE ROUTER SETUP STEPS.
1
One Router Setup
One Router Setup Steps
01
Prepare your Modem
Unplug the power of cable / DSL modem. If it
1
has a battery backup, remove the battery.
Unplug
Modem back
02 Connect your Device
Power on the router.
1
Plug in and press the power switch
at the back of your router.
Check that the LED turns solid
2
blue to indicate that the hardware
connection is ready for setup.
AiMesh Setup Steps
01
Prepare
Place your AiMesh router and node in the same room and at least 1 meter apart during the setup process.
02
AiMesh node
Keep your AiMesh node powered on and standby for AiMesh system settings.
03
AiMesh router
[Web] Refer to ONE ROUTER SETUP STEPS to connect
1
your AiMesh router to your PC and modem, and
then log in into the web GUI.
Modem AiMesh Router AiMesh Node
[App] Log in to your existing router via ASUS Router App and choose "Add AiMesh Node" to complete the setup.
02 Setting up an AiMesh WiFi system
Prepare two or more ASUS routers supporting AiMesh.
1
Assign one as AiMesh router, and another one as AiMesh node.
2
** If you have multiple AiMesh routers, we recommend using the router with the highest specifications
as your AiMesh router and the others as AiMesh nodes.
Go to AiMesh SETUP STEPS.
3
AiMesh node
WE SUGGEST...
Connect your modem to the router
2
with the network cable provided.
Power on the modem. Plug modem to
3
the power outlet and power on.
[Web] Connect your PC
3
to the router using an
additional network cable.
[App] Or you can use a
phone or pad to complete
the setup via ASUS Router
App.
Go to Network Map page, click AiMesh icon
2
and then Search for your extending AiMesh
node.
Hardware Explanations
Plug the adapter into the DCIN port, and press the power switch.
1
The LED indicator will light up when your hardware is ready.
2
ZenWiFi BT10 Overview
10G WAN/ Power (DCIN)
USB 3.0 port LAN2 port port
WAN/LAN1 10G LAN3 Power switch
port port
Specifications:
DC Power adapter DC Output: +12V with max 3A current
Operating Temperature 0~40 C
o
Operating Humidity
50~90%
AiMesh router
AiMesh Setup Steps
Check the modem LED lights to ensure the connection is active.
4
Modem back
Click Search, it will automatically search for your AiMesh
3
node nearby. When the AiMesh node shows on this page,
click it to add it into the AiMesh system.
** If you cannot find any AiMesh node, please go to
TROUBLE SHOOTING.
LED Indicator
WAN/LAN1 port, 10G WAN/LAN2 port
Connect your optical modem to either WAN/
LAN1 port or 10G WAN/LAN2 port with a net-
work cable.
10G LAN3 port
Connect your PC to a LAN port with a network
cable.
Storage 0~70 C
o
Storage 20~90%
03 Download free ASUS Router App to
set up and manage your router(s)
If you are using DSL for internet,
you will need your username
/ password from your Internet
service provider (ISP) to properly
configure your router.
Modem front
03
Login and Connect
[Web] Open a web browser.
1
You will be redirected to the ASUS Setup Wizard. If not, navigate
to http://www.asusrouter.com.
[App] Launch ASUS Router App and follow the instructions to
complete the setup.
At least 1 meter
AiMesh node
A message is displayed when synchronization is
4
completed.
Successfully added RT-ABCDE
will take awhile to show up as connected in the AiMesh
router list.
OK
Congratulations! You
5
will find the pages
below show up when an
AiMesh node has been
successfully added to the
AiMesh network.
E23555
AiMesh router
to your AiMesh system, it
