AHE-450-DE5 Installation Manual
System Overview

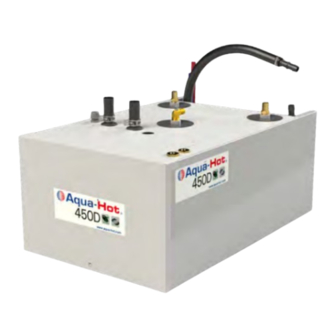

The Aqua-Hot 450D is a Hydronic (water-based) Heating System, a tank-less hot water system, and a diesel engine
preheating system.
The heating system provides moist, quiet, comfortable, interior heat with up to 5 separate, thermostatically-controlled
temperature zones, and prevents tank and line freezing in the bays.
The tank-less hot water system produces 90 gallons per hour of continuous, on-demand hot water.
The diesel engine preheating system circulates the engine's antifreeze solution through an internal heating loop in the
AquaHot and pumps it back through the engine, raising the engine's temperature from 30°F to 90°F in about 1 hour.
The same heating loop that preheats the diesel engine allows the Aqua-Hot system to take surplus heat generated by
the motor home's diesel engine while running, and use it to heat the Aqua-Hot system.
This TribridHot™ designated system uses one or a combination of heat sources to heat FDA-Approved Generally
Recognized As Safe ("GRAS") Propylene Glycol-based antifreeze solution in the Aqua-Hot's boiler tank.
The 450D has multiple heating sources: the motor home's engine's surplus heat (while driving), one 120V AC - 1650W
Electric Element (when plugged into shore power), and a 12V DC powered diesel burner (when dry camping). These
heat sources can be used separately or simultaneously.
New Low Emissions Technology virtually eliminates smoke and odor from the exhaust by reducing total hydrocarbon
emission by 82%, making Aqua-Hot the cleanest burning diesel-powered hydronic heating system available.
Should additional assistance be needed, please contact the Technical Support at 574-AIR-XCEL (574-247-9235),
Monday through Friday, between 7:00am and 4:00pm MST.
https://tiffin-motor-homes-prod.mindtouch.us/Technical_Support/Class_A/2024/Allegro_Bus/35_CP/Component_Manuals/Aqu...
Updated: Fri, 21 Jun 2024 04:59:37 GMT
