Haier HSU-09LEA13-F Installation Manual
User manual
Hide thumbs
Also See for HSU-09LEA13-F:
- Operation manual (49 pages) ,
- Installation manual (9 pages) ,
- Operation manual (9 pages)
Table of Contents
Related Manuals for Haier HSU-09LEA13-F
Summary of Contents for Haier HSU-09LEA13-F

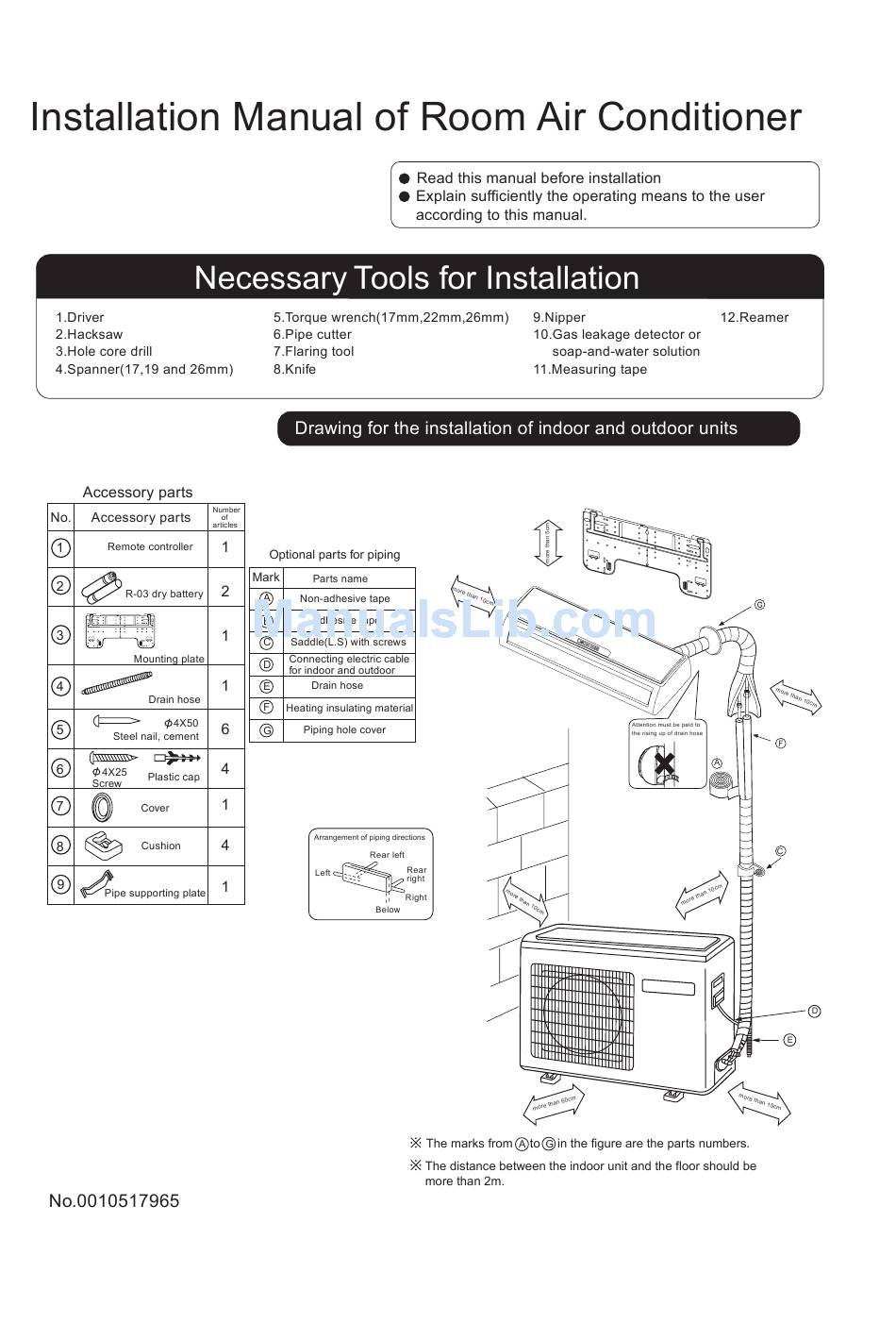

- Page 2 HSU-09LEA13-F HSU-24LEA13-W HSU-12LEA13-F HSU-09LEA13-W HSU-22LEA13-W HSU-18LEA13-W HSU-12LEA13-W For 22k 9.52mm(3/8") 15.88mm(5/8")
-
Page 3: Installation Of The Indoor Unit
In case of left side piping, cut away, with a nipper, the lid for left piping. In case of left-rear piping, bend the pipes according to the piping direction to the mark of hole for left-rear piping which is marked on heat insulation materials. -
Page 4: Fixing The Indoor Unit Body
Indoor unit 1. Insert the drain hose into the dent of heat insulation materials of indoor unit. 2. Insert the indoor/outdoor electric cable from backside of indoor unit, and pull it out on the front side, then connect them. 3. Coat the flaring seal face with refrigerant oil and connect pipes. - Page 5 HSU-18LEA13-W HSU-09LEA13-W HSU-22LEA13-W HSU-24LEA13-W Power cable: connecting wiring: -mod 09-12: 3G1.0mm -mod 09-12: 3G1.0mm -mod 3G1.5mm -mod 18-24: 3G2.0mm -mod 22-24: 3G2.5mm HSU-12LEA13-W...
-
Page 7: Outdoor Unit
Note: When extending piping, air inside piping shall be removed by using external refrigerant gas, charge according to the following list. Brand new outdoor unit is charged 50g or 80g(22k) more refrigerant than regulatedweight. Only for first installation, this extra 50g or 80g(22k) can be used to purge air in pipes. - Page 10 Dimensiones de fijación al Dimensiones de fijación al Dimensiones de fijación al suelo de la unidad exterior suelo de la unidad exterior suelo de la unidad (Unidades: mm) (Unidades: mm) exterior (Unidades: mm) HSU-09LEA13-F HSU-24LEA13-W HSU-12LEA13-F HSU-09LEA13-W HSU-22LEA13-W HSU-18LEA13-W HSU-12LEA13-W Para 22 6.35mm(1/4")
- Page 13 HSU-18LEA13-W HSU-09LEA13-W HSU-22LEA13-W HSU-24LEA13-W cableado de conexión: Cable de alimentación: -mod 09-12: 3G1.0mm -mod 09-12: 3G1.0mm -mod 3G1.5mm -mod 18-24: 3G2.0mm -mod 22-24: 3G2.5mm HSU-12LEA13-W...
-
Page 15: Unidad Exterior
Realice la carga de acuerdo con la lista siguiente. La unidad exterior nueva debe cargarse 50 g o 80g(22k) más de refrigerante que de aire de regulación.Sólo en la primera instalación, estos 50 g o 80g(22k) adiciona les pueden utilizarse para purgar el aire de los tubos.
