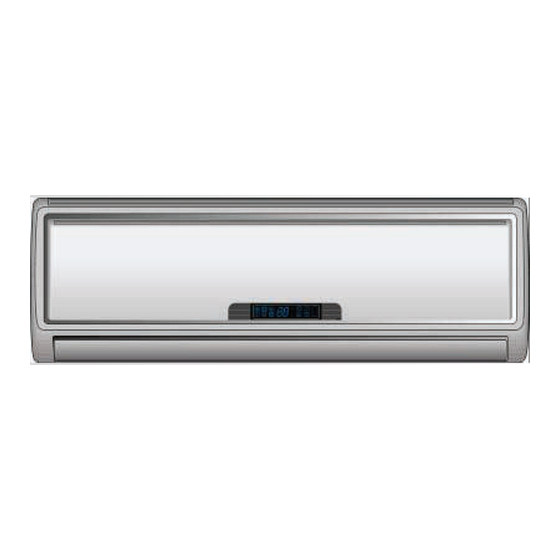

Haier HSU-09HEA13-B Operation Manual
Split type room air conditioner
Hide thumbs
Also See for HSU-09HEA13-B:
- Инструкция (32 pages) ,
- Installation manual (9 pages) ,
- Operation manual (8 pages)
Table of Contents
Advertisement
Quick Links
HSU-05LEA03
HSU-07LEA03
HSU-09LEA03
HSU-12LEA03
HSU-18LEA03
HSU-22LEA03
HSU-24LEA03
HSU-09LEA13-W
HSU-10LEA03-T
HSU-12LEA13-W
HSU-18LEA13-W
HSU-22LEA13-W
HSU-13LEA03-T
HSU-09LEB13-H
HSU-14LEA13-H
HSU-18CRA03-T
HSU-12HEA03/(BP)
HSU-09HEA03/(BP)
HSU-09LEA13-H
HSU-18HEA03(T3)
HSU-18HEA13(T3)
HSU-12CRA03-T
HSU-12HEA03/(DB)
HSU-09HEA03/(DB)
Please read this operation manual before using the air conditioner.
Keep this operation manual for future reference.
0010515137
SPLIT TYPE ROOM AIR CONDITIONER
HSU-09LEA13-F
HSU-12LEA13-H
HSU-18LEA13-H
HSU-12LEA13-F
HSU-12LEA13-M
HSU-18LEA13-M
HSU-07HEA03
HSU-09HEA03
HSU-12HEA03
HSU-18HEA03
HSU-22HEA03
HSU-24HEA03
HSU-12LEB13-H
HSU-14LEB13-H
HSU-09CRA03-T
AMS09H03-N
AMS12H03-N
AMS18H03-N
AMS22H03-N
PAS18L03-N(T3)
HSU-07HEA13-B
HSU-09HEA13-B
HSU-12HEA13-B
HSU-18HEA13-B
OPERATION MANUAL
HSU-18LEA03(T3)
HSU-18LEA13(T3)
HSU-09CA2
HSU-12CA2
HSU-12CB2
HSU-18LB2
HSU-18LA2
HSU-24LA2
HSU-12HEB03
HEC-18LEA03(T3)
HSU-09LM11
HSU-12LM11
HSU-07LEA13-B
HSU-09LEA13-B
Contents
PARTS AND FUNCTIONS
OPERATION
MAINTENANCE
CAUTIONS
TROUBLE SHOOTING
1
2-4
5
6.7
7
Advertisement
Table of Contents
Related Manuals for Haier HSU-09HEA13-B
Summary of Contents for Haier HSU-09HEA13-B
-
Page 1: Operation Manual
HSU-09HEA03/(BP) AMS18H03-N PARTS AND FUNCTIONS HSU-09LEA13-H AMS22H03-N OPERATION HSU-18HEA03(T3) PAS18L03-N(T3) HSU-18HEA13(T3) HSU-07HEA13-B MAINTENANCE HSU-12CRA03-T HSU-09HEA13-B CAUTIONS HSU-12HEA03/(DB) HSU-12HEA13-B TROUBLE SHOOTING HSU-09HEA03/(DB) HSU-18HEA13-B Please read this operation manual before using the air conditioner. Keep this operation manual for future reference. 0010515137... -
Page 2: Loading Of The Battery
MODE TIMER Hint: Remove the batteries in case unit won't be in usage for a long period. CLOCK SWING If there are any display after taking-out, just need to press reset key... -
Page 3: Auto Operation
2.In FAN operation mode MODE TIMER the unit will not operate in COOL mode but only in FAN mode ,AUTO is not available in FAN mode.And temp.setting is disabled. CLOCK SWING Heat Operation Air Flow Direction Adjustm TIMER... -
Page 4: Timer Operation
You can let unit start or stop automatically a following times: Emergency Operation: Before you wake up in the morning, or get back from outside Use this operation only when the remote controller or after you fall asleep at night. -
Page 5: Operation Mode
Power Failure Resume Function Note to the power failure resume: If the unit is started for the first time, the compressor will not press the sleep button ten times in five seconds and enter start running unless 3 minutes have elapsed. When the power function after hearing four sounds.And press the sleep button... -
Page 6: Maintenance
Clean the filter. for a long time, turn off the Use a vacuum cleaner to remove dust, or wash the filter with power supply main switch. water.After washing, dry the filter completely in the shade. - Page 7 Cautions WARNING Please call Sales/Service Shop for the Installation. Do not attempt to install the air conditioner by yourself because improper works may cause electric shock, fire, water leakage. WARNING Check proper When abnormality such as burnt-small found, Use an exclusive...
-
Page 8: Troubleshooting
The type of connecting wire is H05RN-F or H07RN-F In DRY mode, when room 3. If the fuse on PC board is broken please change it with a fuse temperature becomeslower type T. 3.15A/250V. In dry mode, fan than temp.setting+2...
