Cobra 602-2511 Quick Start Manual

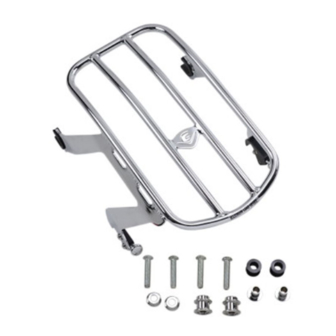

Items Supplied >
1 - Detachable Rack Chrome or Black
2 - 3/8" I.D. Front, Mount Bushing Chrome or Black
2 - 3/8" I.D. Rear, Outer/Inner/Plastic Bushing Chrome
or Black
4 - 3/8"-16 x 1-3/4" Buttonhead Bolts Zinc
Instruction Manual >
Read all instructions carefully before installing your new Cobra
1. Remove the front bolt from the right side fender rail and discard. NOTE: Remove one side only so the
fender does not fall resulting in possible scratches or damage to the fender or paint. See FIGURE 1.
2. Install the front mounting bushing into the front hole using the supplied 3/8"-16 x 1-3/4" long
buttonhead bolt and tighten bolt securely. See FIGURE 2.
3. Remove the right rear fender rail bolt and discard. See FIGURE 1. Install the rear supplied bushing as
oriented in FIGURE 2, using the supplied 3/8"-16 x 1-3/4" long buttonhead bolt and tighten bolt
securely.
REMOVE STOCK
REAR BOLT, ON
DELUXE CLOSEST
TO REFLECTOR
REAR MOUNTING
BUSHING
* Cobra recommends you always wear a helmet while ridi ng. Please never operate your motorcycle while under
®
the influence of alcohol and/or drugs. Enjoy the new look of your motorcycle and please ride safely.
DOCUMENT NO. 0017 REV. B
01/20
23801 E. La Palma Ave., Yorba Linda, CA 92887 Ph. 714.692.8180 Fax. 714.692.5016
Application(s) >
HARLEY:
SOFTAIL:
602-2511 / 602-2511B
FIGURE 1
FIGURE 2
www.cobrausa-vtwin.com
FLDE 2018-2020
Page 1 of 2
product!
®
REMOVE STOCK
FRONT BOLT, ON
DELUXE
CLOSEST TO
REFLECTOR
NOTE: FENDER
SHOWN WILL
VARY FROM
YOUR
APPLICATION
FRONT
MOUNTING
BUSHING
