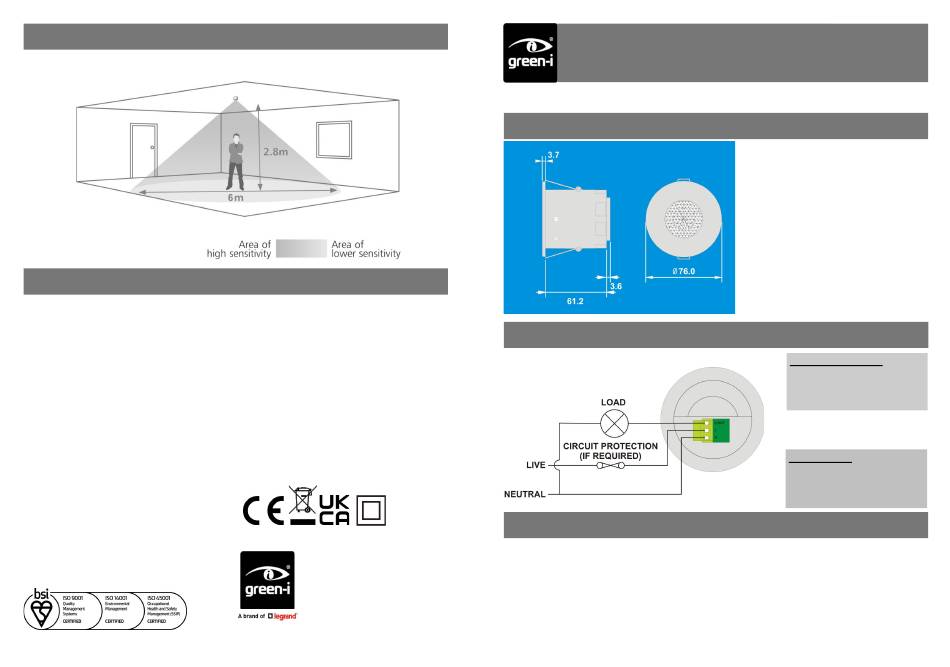

green-i GEFL Installation Manual

Detection pattern
Specification
LOAD
8 Amp resistive and incandescent lighting
4 Amp fluorescent lighting
3 Amp compact fluorescent lighting
3 Amp LED lighting
3 Amp low voltage lighting
3 Amp fans and ventilation equipment
Switch SON lighting loads via a contactor
SUPPLY VOLTAGE 220-240 Volts AC 50 Hz
TIME OUT PERIOD Adjustable 10s to 30m
LIGHT LEVEL Light to dark
2
TERMINAL CAPACITY 2.5 mm
MATERIAL Flame retardant ABS
TYPE Class 2
TEMPERATURE 0°C to 35°C
IP RATING GEFL IP40
GEFL-IP IP55
CONFORMITY EMC-2014/30/EU
LVD-2014/35/EU
Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice.
C.P. Electronics
a business unit of Legrand Electric Limited
Brent Crescent
London
NW10 7XR
United Kingdom
Tel: + 44 (0) 333 900 0671
Fax: + 44 (0) 333 900 0674
www.cpelectronics.co.uk
enquiry@cpelectronics.com
GEFL & GEFL-IP
INSTALLATION GUIDE
Recess Ceiling Mounted PIR Presence Detector
Dimensions
Wiring diagram
L/OUT
L
N
Description and Operation
The GEFL & GEFL-IP presence detectors are designed to provide automatic control of lighting, heat-
ing or ventilation loads. They detect movement using a PIR sensor to turn the load on. When an area
is no longer occupied the load will switch off after an adjustable time out period.
An adjustable internal light sensor provides additional energy saving in lighting applications. When an
area is occupied lighting is only switched on when the level of natural light is below a preset level.
When the unit is first powered up the PIR sensor will always detect immediately regardless of whether
the room is occupied.
Ref: #WD297 GEFL Issue 7
IMPORTANT NOTICE!
This device should be installed by
a qualified electrician in
accordance with the latest edition
of the IET wiring regulations.
KEY LEGEND:
L/OUT — LIVE OUT
L — LIVE IN
N — NEUTRAL
