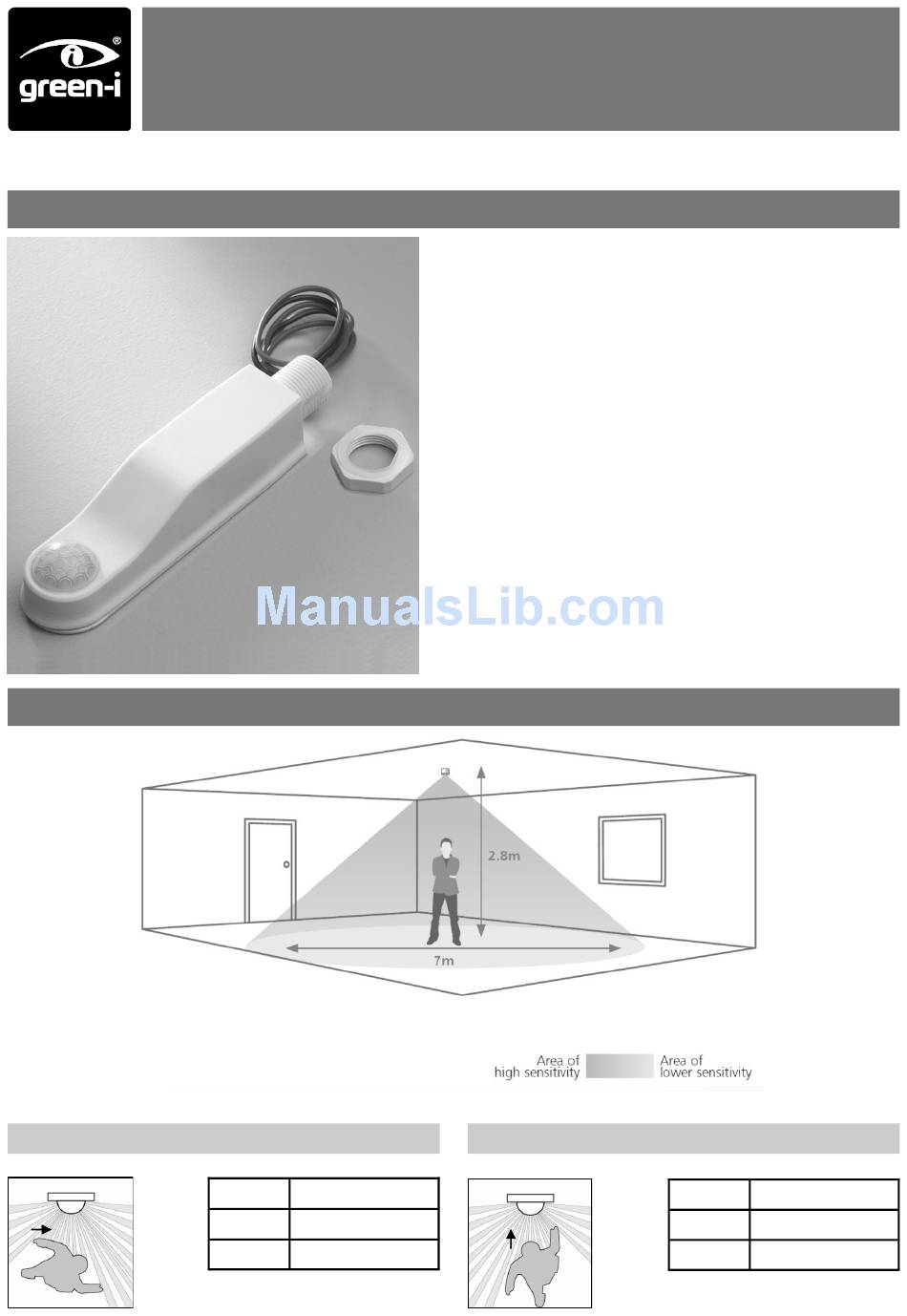

green-i GIMB Product Manual

Batten mount pir detector

GIMB

Product Guide

Batten mount PIR detector

Note: illustration shows an average of the walk across and walk towards figures below.

Walk across

Height

Range Diameter

16m

2.8m

The GIMB miniature PIR (passive infrared) presence

detector provides automatic control of lighting loads. It is

specifically designed for mounting onto a batten style

luminaire.

The detector will switch incandescent, fluorescent, compact

fluorescent and LED lighting.

The unit detects movement using a PIR sensor and turns

the load on. When an area is no longer occupied the load

will switch off after a 10 minute time out period.

A selection of fixing washers are supplied to aid fixing to a

variety of luminaires.

Walk towards

Overview

Detection diagram

Height

Range Diameter

10m

2.8m

Table of Contents

Do you have a question about the GIMB and is the answer not in the manual?

Page 1 GIMB Product Guide Batten mount PIR detector Overview The GIMB miniature PIR (passive infrared) presence detector provides automatic control of lighting loads. It is specifically designed for mounting onto a batten style luminaire. The detector will switch incandescent, fluorescent, compact fluorescent and LED lighting.
Page 2 Installation Do not grip unit at the lens end. Hold the square body near the threaded end when installing and tightening the nut. Care must be taken to prevent damage to the lens and surrounding IP seal. Components Mounting hole without key Part Quantity Supplied...
Page 3 Installation The product is designed to be mounted directly to the outside of a luminaire. The detector should be sited so that the occupants of the room fall inside the detection pattern (shown opposite), at a recommended ceiling height of 2.8m. Note that the lower the sensor is installed the smaller the detection range will be, subject to the parameters shown on the detection diagram.
Page 4 Technical data Dimensions See diagrams opposite. Weight 0.10kg Supply Voltage 230VAC +/- 10% Frequency 50Hz Maximum Switching Load 2 Amps fluorescent and incandescent lighting. 2 Amps compact fluorescent lighting. 2 Amps low energy lighting. 2 Amps low voltage lighting (switch primary of transformer). Switch SON lighting loads via a contactor.
