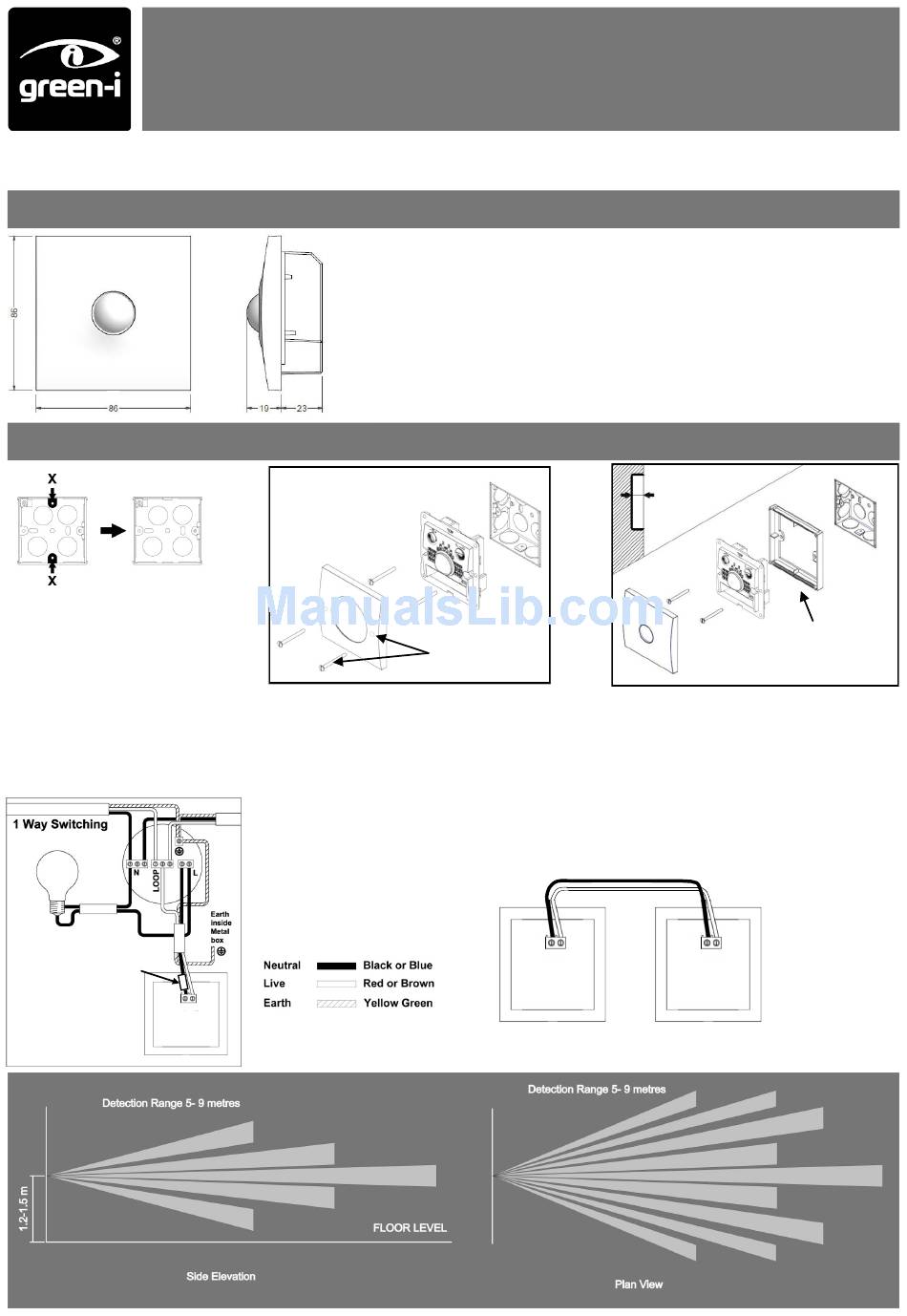

green-i PDS-PRM Product Manual

PDS-PRM & PDS-PRM/S
Product Guide
No Neutral Wall Mounted PIR Presence Detector
Compatible with all BS4662
dimensions back boxes.
Remove top and bottom lugs if
fitted.
The detector should be sited so that the occupants of the room fall inside the detection pattern shown below, at a recommended height of 1.2m to
1.5m for wall sensors. Note that the higher the sensor is installed the shorter the detection range will be.

Avoid direct sunlight entering the sensor.

Do not site within 1m of forced air heating or ventilation.

Do not site within 1m of any lighting.

Do not fix to a vibrating surface.
May have red or
brown sleeve
Com L1
The PDS-PRM presence detector switches are designed to provide automatic control of
lighting, heating or ventilation loads. They detect movement using a PIR sensor and
turn the load on. When an area is no longer occupied the load will switch off after an
adjustable time out period.
An internal light sensor provides additional energy saving in lighting applications. When
an area is occupied lighting is only switched on when the level of natural light is below a
preset level.
A selectable security mode switches the lights on for a period of 2 hours when it gets
dark, regardless of occupancy, to give the impression of a building being occupied.
The PDS-PRM/S comes with longer mounting screws and countersunk holes on the
cover plate. This is to allow the installer to secure the unit and cover plate with external
screw fixings.
Do not overtighten
1 way switching
If the lights are controlled
from one location only, wire
as in the diagram.
Installation and wiring
Screw fixings for
PDS-PRM/s
2 way switching
If more than one detector is required to switch the lighting (e.g. at
the top and bottom of a staircase) they can be wired in parallel, as
in the diagram.
Com L1
Overview
< 25mm
Use the extender if there is less than
25mm free space.
REMEMBER—put the wires through
the extender before connecting.
Com L1
