Waterflex AQUABIKE LIFT User Manual

Hide thumbs Also See for AQUABIKE LIFT:

Advertisement

Table of Contents

USER'S MANUAL
/ Keep this user's manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUABIKE LIFT and is the answer not in the manual?

Questions and answers

Related Manuals for Waterflex AQUABIKE LIFT

Summary of Contents for Waterflex AQUABIKE LIFT

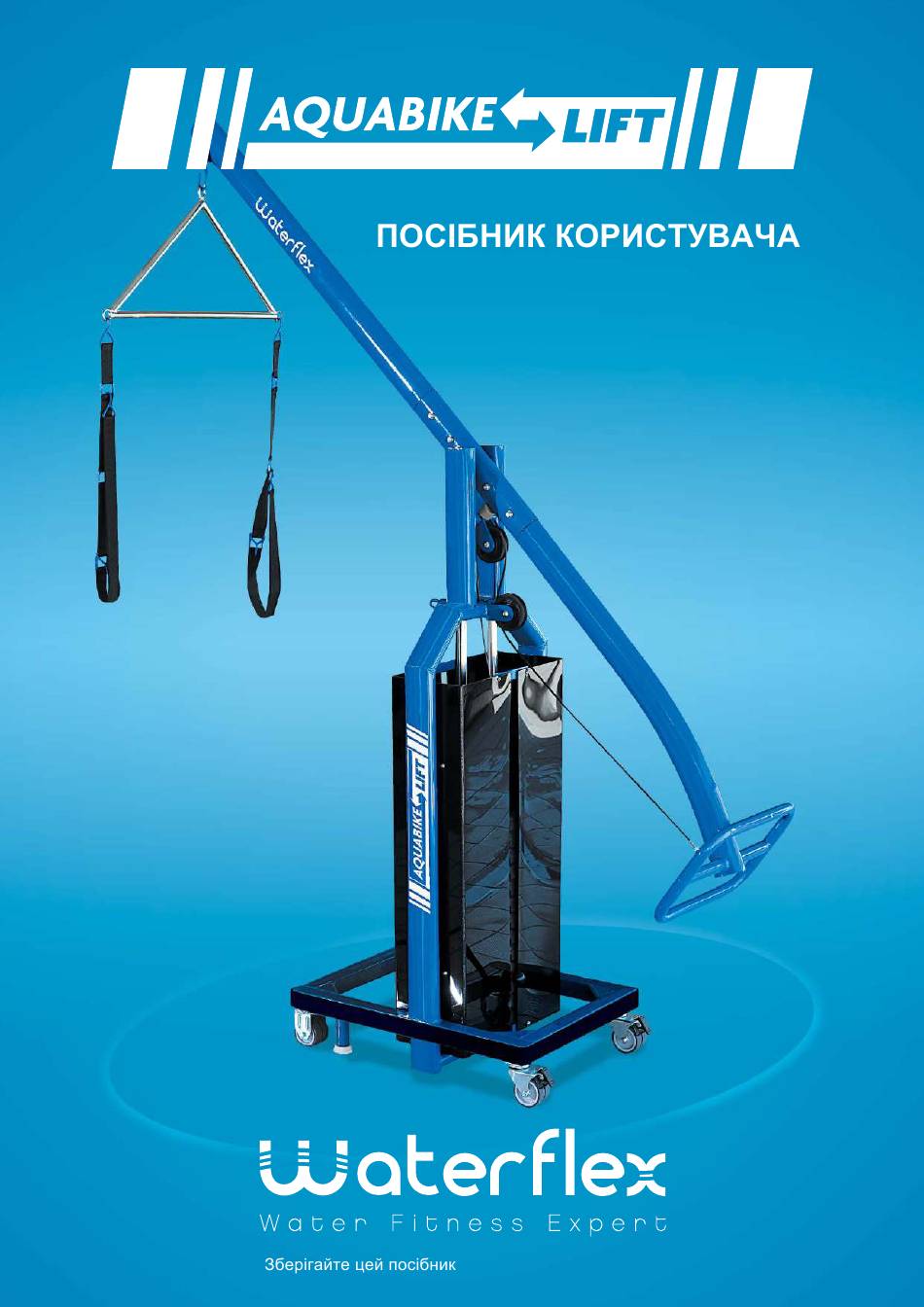

  • Page 1 USER’S MANUAL / Keep this user’s manual...

  • Page 2: Safety Precautions

    - In case of water shock treatment, please move away the Aquabike Lift from swimming pool. - Move away the Aquabike Lift from the basin after each use and rinse it with clean water. Please use the attached or other appropriate tools to assemble or repair the Aquabike Lift.
  • Page 3 L’Aquabike Lift is not designed for lifting a person. : https://youtu.be/BKx1lbx6V2g). For optimal use of Aquabike Lift, we recommend two persons authorized and responsible adults. One at the pond that manipulates the Aquabike Lift and the other in the water that attaches aq-uabike.

  • Page 4: Exploded View

    Exploded view ’ (11) The front lift arm (11) also available in long version for the deeper pools. Tools included Note: use these tools only to assemble this Aquabike Lift WARNING: Keep the tools away from babies and children.

  • Page 5: Part List

    Part List N° / Description Quantity Main frame Storage medium for triangle Long bolt Washers Nuts brakes Protective cap Short bolt Pull straps Triangle Hook Lifting arm front Rocker arm Arm lock knob Lifting arm back Grab handle ’ / Cable Counterweight system Locking pin...
  • Page 6 Mounting 1 / Step 1 : (11) (12) (A), (10) Insert the front lifting arm (11) in the rocker (12) forward side (A) ensuring that the hook (10) points towards the ground. 2 / Step 2 : (11) (3), (5). (6).
  • Page 7 Mounting 4 / Step 4 : (14) (3), (5). (6). Attach the rear lift arms (14) using the screws (3), washers (4) and lock nuts (5). Add plastic protections (6) on the nuts. 5 / Step 5 : (16), ’ Tighten the cable (16) ensuring that it goes well with all the pulleys.
  • Page 8 Mounting 7 / Step 7 : (10). Attach the triangle (9) on the hook (10). 8 / Step 8 : (9). Attach the straps (8) at the ends of the triangle (9). The Aquabike Lift is assembled.
  • Page 9 Maintenance advices pH (6,7 / 7,6). The structure of the Aquabike Lift is made of steel and covered with a powder coated. Its anti- corrosion treatment makes it suitable for chlorinated water, sea water and thermal waters. It requires no special care in contact with the pH-controlled waters (6.7 / 7.6). Metal parts (triangle + bolts) are in stainless steel.
  • Page 10 (See video at: https://youtu.be/BKx1lbx6V2g). 5-10 The wheels of the Aquabike Lift must be placed between 5 and 10 cm from the edge of the basin. For added security the Aquabike Lift has two suction feet for pools without curb.
  • Page 11 Putting parallel aquabike pool and position the Aquabike Lift on the edge of the pool. The wheels of the Aquabike Lift must be placed between 5 and 10 cm from the edge of the basin. For added security the Aquabike Lift has two suction feet for pools...
  • Page 12 Handling 4 / Step 4 : Use the brakes to lock the wheels and stabilize Aquabike Lift. 5 / Step 5 : Unlock the lifting arm by pulling the knob. 6 / Step 6 : Raise the lift arm toward pool until safety lock.
  • Page 13 Handling 7 / Step 7 : . 4, Threading the straps at the front and rear of the aquabike, then adjust. The sets of two supplementary straps (page 4, part n°22) allows to adjust the length of the straps of the lifting arm relative to aquabike model to raise.
  • Page 14 10 / Step 10 : The aquabike is now out of the water. Wait until the drainage is performed. 11 / Step 11 : Unlock the brake wheel and back the Aquabike Lift. 12 / Step 12 : ’ (15) (13),...

  • Page 15: Warranty

    The warranty is rendered null and void in the event of a repair carried out to the equipment by a person not approved by Waterflex. Faulty parts must be returned to Waterflex within the warranty period in order to be covered. The warranty does not cover labor, the cost of unauthorized replacement, or the cost of transporting the parts in question.
  • Page 16 S erv i ce cl i e n t 04 91 51 03 04 numéro non surtaxé D i s t r i b u t i o n P O O L S TA R F R A N C E Z A L e s P i e l e t t e s 1 3 7 4 0 L E R O V E www.poolstar.fr...
