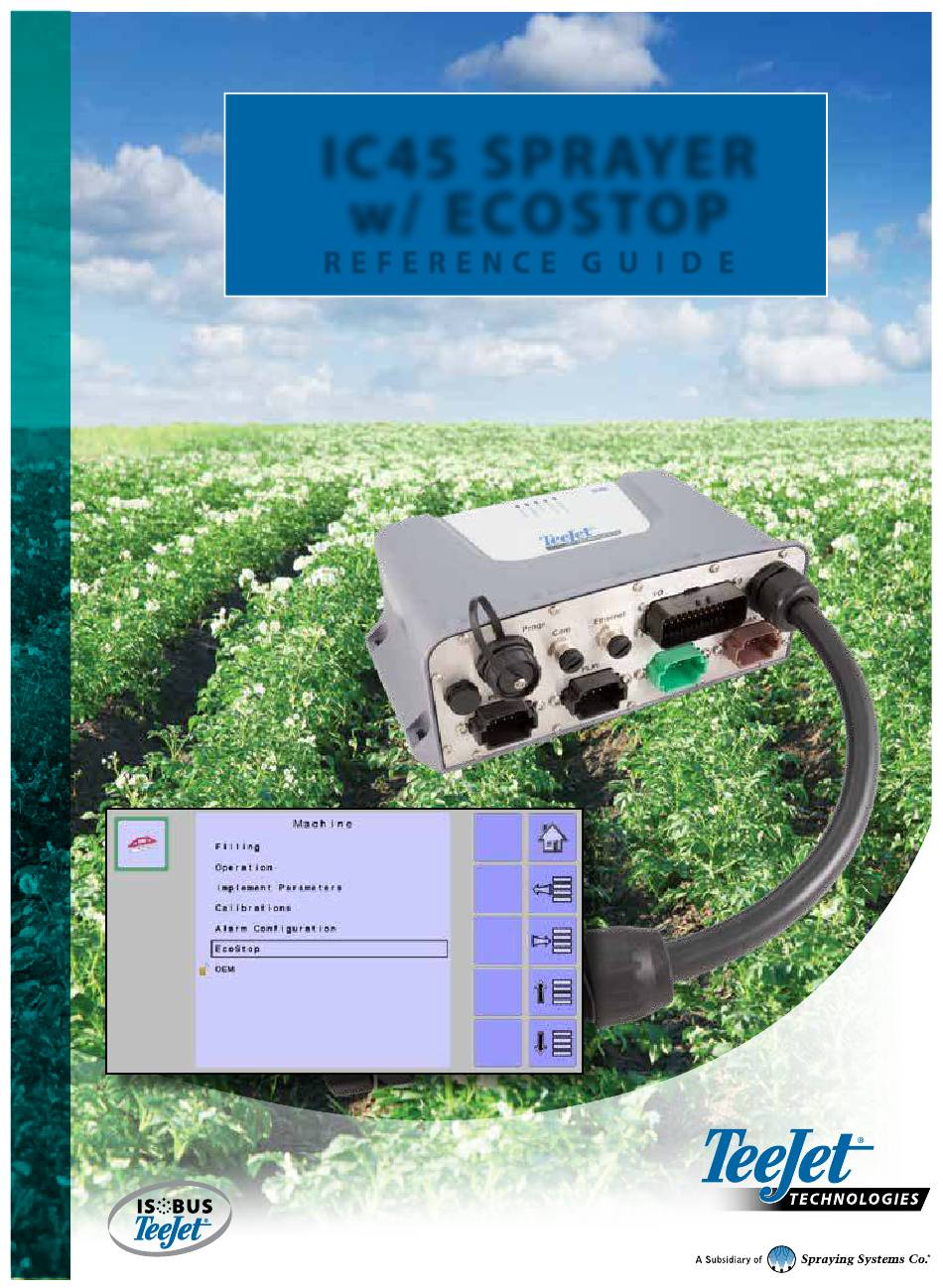

- Page 1 IC45 SPRAYER w/ ECOSTOP R E F E R E N C E G U I D E 98-01620 R1...
- Page 2 COPYRIGHTS © 2023 TeeJet Technologies. All rights reserved. No part of this document or the computer programs described in it may be reproduced, copied, photocopied, translated, or reduced in any form or by any means, electronic or machine readable, recording or otherwise, without prior written consent from TeeJet Technologies.
-
Page 3: Table Of Contents
IC45 Sprayer with EcoStop Table of Contents IMPORTANT SAFETY INFORMATION GENERAL WARNINGS AND PRECAUTIONS CHAPTER 1 – CONNECTIONS SYSTEM DIAGRAM SPRAY SET CHAPTER 2 – SCREEN OVERVIEWS HOME SCREEN Trip Mode ..........................................5 Task Controller Mode ....................................5 OPERATION MODE Boom Sections ......................................10 Information ........................................ -
Page 4: Important Safety Information
® TeeJet Technologies IMPORTANT SAFETY INFORMATION All safety related and operating instructions should be read before the system is operated. Safe operation of machinery is the operators responsibility. Safety procedures must be posted close to the equipment and clearly visible to and legible by the operator. Safety procedures should meet all company and local regulations, as well as MSDS-requirements. - Page 5 ® TeeJet Technologies WARNING! PRESSURIZED HYDRAULIC SYSTEMS • Always wear personal protective equipment (PPE) when performing work on hydraulic systems. • Adhere to the machine manufacture’s approved maintenance instructions when working on the hydraulic system. • Always turn equipment off when working on the hydraulic system. Take appropriate precautions when opening systems that have been previously pressurized.
- Page 6 ® TeeJet Technologies CAUTION! EQUIPMENT SAFETY, MAINTENANCE, AND SERVICE • The equipment should be operated only by properly trained, qualified personnel. They must have proven their skills in the operation of the equipment. • Before using the equipment, the operator has to check if the equipment is in good condition and can be used safely. If not, the equipment cannot be used.
-
Page 7: Chapter 1 - Connections
IC45 Sprayer with EcoStop CHAPTER 1 – CONNECTIONS POWER TRACTOR POWER IBBC SPEED Switch Box EcoStop Drivers RXA52 Antenna Flow Meter EcoStop Interface Module Matrix 908 IC45 Pressure Sensor *Connection Activity is dependent on software version. Figure 1: IC45 Connections... -
Page 8: System Diagram
IC45 Sprayer with EcoStop SYSTEM DIAGRAM The following is to be used for general reference. Specific configurations will vary depending on available devices. Contact TeeJet Customer Service or your local dealer for information on your specific configuration. NOTE: Connectivity to different devices may be released with future software releases. Always refer to software release notes for software/system connectivity at www.teejet.com/support/software.aspx. -
Page 9: Spray Set
WARNING! If you forget to remove the USB drive before repowering the UT console you must allow the update to run to completion again. Powering down the UT console or removing the USB drive while a repeat update is in process will render the IC45 ECU unusable and it will have to be returned to TeeJet for service. -
Page 10: Chapter 2 - Screen Overviews
CHAPTER 2 – SCREEN OVERVIEWS HOME SCREEN The Home screen gives access to the IC45’s available functions. Power is continuously supplied to the job computer. The universal terminal will give access to the job computer options and operation. NOTE: Information on the ECU will vary depending on the parameters set by the user and the OEM. -
Page 11: Trip Mode
IC45 Sprayer with EcoStop Trip Mode Task Controller Mode One of up to 16 Active Trip Count Numbers can be selected When using information generated from a FMIS, the job to view the desired trip information. The trip that is “active” is parameters will be set to Task Controller. -
Page 12: Operation Mode
IC45 Sprayer with EcoStop OPERATION MODE Information on the Operation screen will vary depending on the parameters set by the user and the OEM. Figure 7: Operation Mode Screen Overview Applied Volume Alert Warning Applied Area Target Rate Indicator Active Trip... - Page 13 IC45 Sprayer with EcoStop Table 1: Key/Button Descriptions Key/Button Description Next Page Press to toggle between soft key options and pages. NOTE: Some of the setting menus contain several pages. Information Press to toggle between display modes. Agitation On/Off Press to start or stop agitation.
- Page 14 IC45 Sprayer with EcoStop Table 2: Section/Icon Descriptions Section/Icon Description Active Trip Information This information bar displays the Active Trip Count number, Applied Volume and Applied Area. Active Trip Trip Mode – connected to an ISOBUS CAN with only a UT device found, the current active trip or job number will be displayed Task Controller (TC) Mode –...
- Page 15 IC45 Sprayer with EcoStop Section/Icon Description Boom Sections Displays the active and inactive boom sections as well as if they are on (spray is blue) or off (spray is gray). NOTE: The color on the boom sections indicates the color of the selected nozzle type.
-
Page 16: Boom Sections
Brown Beige With a Switchbox The IC45 ECU may operate with a switchbox or section switches. Each section switch is associated with one of up to the same Number of Sections on the boom and illustrated on the Operation screen. Number of Nozzles and Number of Sections can be specified by the Spray Set or in the IC45 configuration. -
Page 17: Main Menu
IC45 Sprayer with EcoStop MAIN MENU The main setup menu contains six options. Each of these options either directly access settings or additional menus. Figure 9: Main Setup Screen Home Key Back One Screen Forward One Screen Up One Selection Down One Selection The table below outlines the additional menus and directs you to the setup pages for further information. -
Page 18: Chapter 3 - Configuring
The active ISOBUS device on the guidance system will reflect these values in the device setup and can not be changed outside of the IC45 setup menus. Any changes to these implement dimensions will likely require a reboot of the system to properly share the updates with the guidance system. -
Page 19: Control Specifications
IC45 Sprayer with EcoStop CONTROL SPECIFICATIONS The control parameters are the settings that directly affect the regulation of the system. Review each setting and make changes as needed for the machine's configuration. Setting Comments Menu Location T Machine Sensors Present Select "Yes"... -
Page 20: Job Specifics
IC45 Sprayer with EcoStop Setting Comments Menu Location T Machine Liquid Density Choose value if fertilizer is selected. X Filling JOB SPECIFICS These parameters configure the target application rate settings, current tip selected and other related application setup options. Review each setting and make changes as needed for the machine's configuration. -
Page 21: Appendix A - Modules & Driver Led Information
IC45 Sprayer with EcoStop APPENDIX A – MODULES & DRIVER LED INFORMATION ECOSTOP INTERFACE MODULE LED: Wi-Fi Status LED. • Off: No Wi-Fi connection. • On: Wi-Fi connection. • Blinking at 2 Hz: Wi-Fi communication active. LED: COM Interface to PLP Controller CAN Bus Status LED. -
Page 22: Ecostop Driver
IC45 Sprayer with EcoStop ECOSTOP DRIVER LED: V (Volts) Module Voltage Status LED. • Off: Module voltage within high and low limits. • Default high limit: 16.0 V • Default low limit: 11.0 V • Blinking at 6 Hz for high limit error. -
Page 23: Appendix B - Ecostop Information
IC45 Sprayer with EcoStop APPENDIX B – ECOSTOP INFORMATION POWERLINK+ ECOSTOP ALLOCATION ECOSTOP INFORMATION General information and error notifications are available on the Allocation of the EcoStop module is done from the PowerLink+ menu located in the OEM menu. EcoStop menu on the Machine menu. - Page 24 See "Spray Set Installation" on page 3 for details. 3. Configure implement settings. See "Implement Specifications" on page 12 for details. 4. Enjoy on/off spray nozzle control of up to 160 nozzles. www.teejet.com 98-01620-ENUS-A4/LT R1 English-US © TeeJet Technologies 2023...
