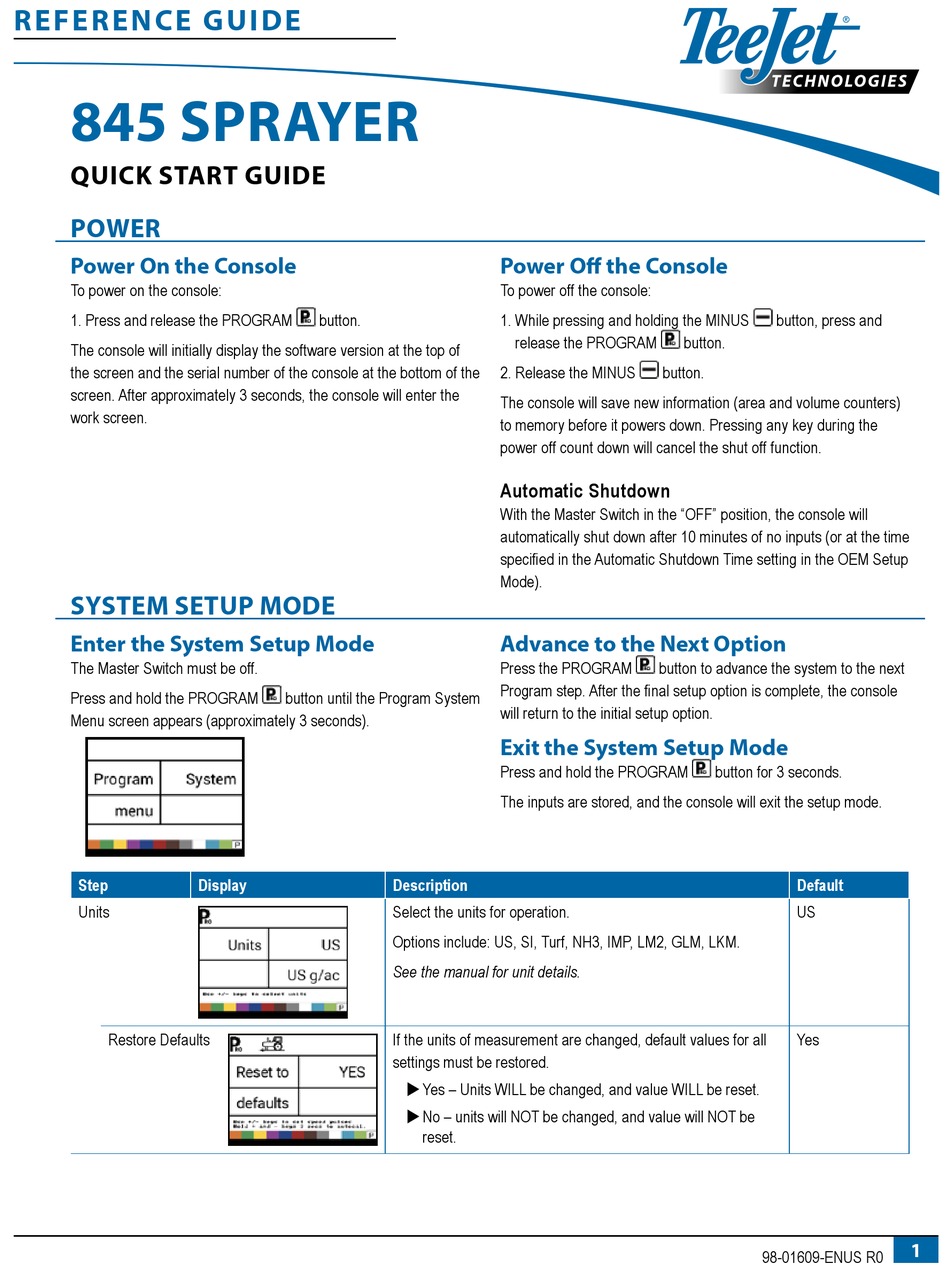

REFE RE NC E GUI D E
845 SPRAYER
QUICK START GUIDE
POWER
Power On the Console
To power on the console:
1. Press and release the PROGRAM
The console will initially display the software version at the top of
the screen and the serial number of the console at the bottom of the
screen. After approximately 3 seconds, the console will enter the
work screen.
SYSTEM SETUP MODE
Enter the System Setup Mode
The Master Switch must be off.
Press and hold the PROGRAM
Menu screen appears (approximately 3 seconds).
Step
Units
Restore Defaults
button.
button until the Program System
Display
Power Off the Console
To power off the console:
1. While pressing and holding the MINUS
release the PROGRAM
2. Release the MINUS
The console will save new information (area and volume counters)
to memory before it powers down. Pressing any key during the
power off count down will cancel the shut off function.
Automatic Shutdown
With the Master Switch in the "OFF" position, the console will
automatically shut down after 10 minutes of no inputs (or at the time
specified in the Automatic Shutdown Time setting in the OEM Setup
Mode).
Advance to the Next Option
Press the PROGRAM
Program step. After the final setup option is complete, the console
will return to the initial setup option.
Exit the System Setup Mode
Press and hold the PROGRAM
The inputs are stored, and the console will exit the setup mode.
Description
Select the units for operation.
Options include: US, SI, Turf, NH3, IMP, LM2, GLM, LKM.
See the manual for unit details.
If the units of measurement are changed, default values for all
settings must be restored.
X Yes – Units WILL be changed, and value WILL be reset.
X No – units will NOT be changed, and value will NOT be
reset.
button, press and
button.
button.
button to advance the system to the next
button for 3 seconds.
Default
US
Yes
98-01609-ENUS R0
1
