Installation Manual of Room Air Conditioner

1.Driver
2.Hacksaw
3.Hole core drill
4.Spanner(17,19 and 26mm)

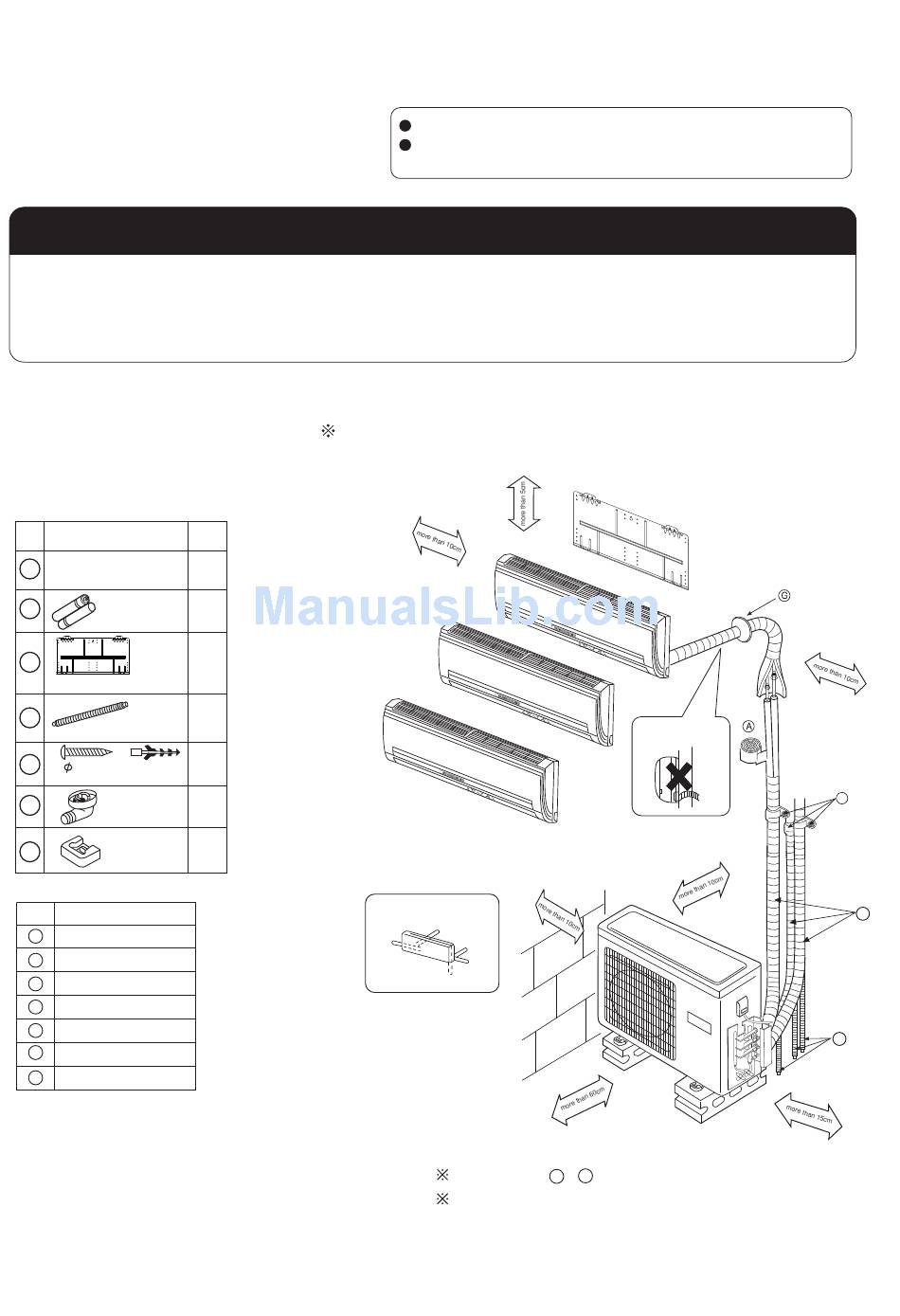

Drawing for the installation of indoor and outdoor units
Accessory parts
No.
Accessory parts
1
Remote controller
2
R-03 dry battery
3
Mounting plate
4
Drain hose
5
4X25
Plastic cap
Screw
6
Drain-elbow
7
Cushion
Optional parts for piping
Mark
Parts name
A
Non-adhesive tape
Adhesive tape
B
C
Saddle(L.S) with screws
Connecting electric cable
D
for indoor and outdoor
Drain hose
E
F
Heating insulating material
Piping hole cover
G
No.001051
Necessary Tools for Installation
5.Torque wrench(17mm,22mm,26mm)
6.Pipe cutter
7.Flaring tool
8.Knife
The models adopt HFC free refrigerant R410A
Number
of
articles
3
6
3
3
Indoor unit C
12
1
4
Read this manual before installation
Explain sufficiently the operating means to the user
according to this manual.
Indoor unit A
Indoor unit B
Arrangement of piping directions
Rear left
Rear
Left
right
Right
Below
The marks from
The distance between the indoor unit and the floor should be
more than 2m.
9.Nipper
10.Gas leakage detector or
soap-and-water solution
11.Measuring tape
Attention must be paid to
the rising up of drain hose
A
to
G
in the figure are the parts numbers.
12.Reamer
C
D
E

Advertisement

loading

  Related Manuals for Haier H3SM- - annexe 2

  Summary of Contents for Haier H3SM- - annexe 2

  • Page 1: Installation Manual Of Room Air Conditioner

    Connecting electric cable for indoor and outdoor Drain hose Heating insulating material Piping hole cover The marks from in the figure are the parts numbers. The distance between the indoor unit and the floor should be more than 2m. No.001051...
  • Page 2: Selection Of Installation Place

    Before inserting power plug into receptacle, check the voltage without fail. The power source is the same as the corresponding name plate. Install an exclusive branch circuit of the power. A receptacle shall be set up in a distance where the power cable can be reached. Do not extend the cable by cutting it. Selection of pipe To this unit, both liquid and gas pipes shall be insulated as they become Iow temperature in operation.
  • Page 3: Installation Of The Indoor Unit

    In case of left side piping, cut away, with a nipper, the lid for left piping. In case of left-rear piping, bend the pipes according to the piping direction to the mark of hole for left-rear piping which is marked on heat insulation materials.
  • Page 4: Removing The Wiring Cover

    Indoor unit 1. Insert the drain hose into the dent of heat insulation materials of indoor unit. 2. Insert the indoor/outdoor electric cable from backside of indoor unit, and pull it out on the front side, then connect them. 3. Coat the flaring seal face with refrigerant oil and connect pipes.
  • Page 5 1. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person. The type of connecting wire is H05RN-F or H07RN-F.
  • Page 6: Installation Of Outdoor Unit

    Be careful that matters, such as wastes of sands, etc. shall not enter the pipe. The standard pipe length is 5m. If it is over 5m, the function of the unit will be affected. If the pipe has to be lengthened, the refrigerant should be charged, according to 20 g/m. But the charge of refrigerant must be conducted by professional air conditioner engineer.
  • Page 7 Otherwise, there will be refrigerant into air conditioner according to the amount marked on abnormal high pressure in the system to make it crack and lead to the name plate. personal injuries.
  • Page 8: Power Source Installation

    Please pour water in the drain pan of the indoor unit, and confirm that drainage is carried out surely to outdoor. In case that the attached drain hose is in a room, please apply heat insulation to it without fail.

This manual is also suitable for:

H3sm-hv03-r2
