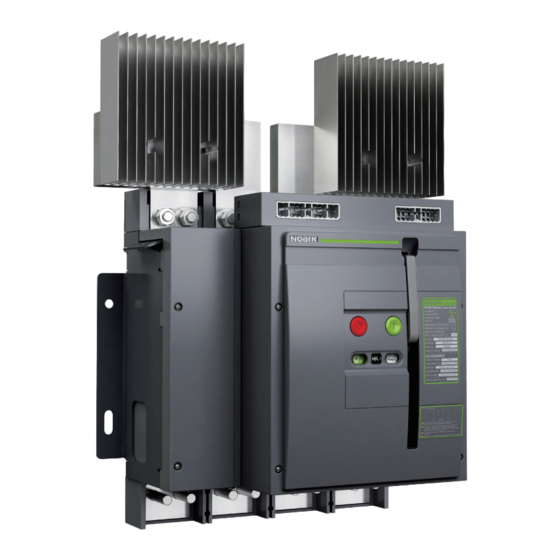

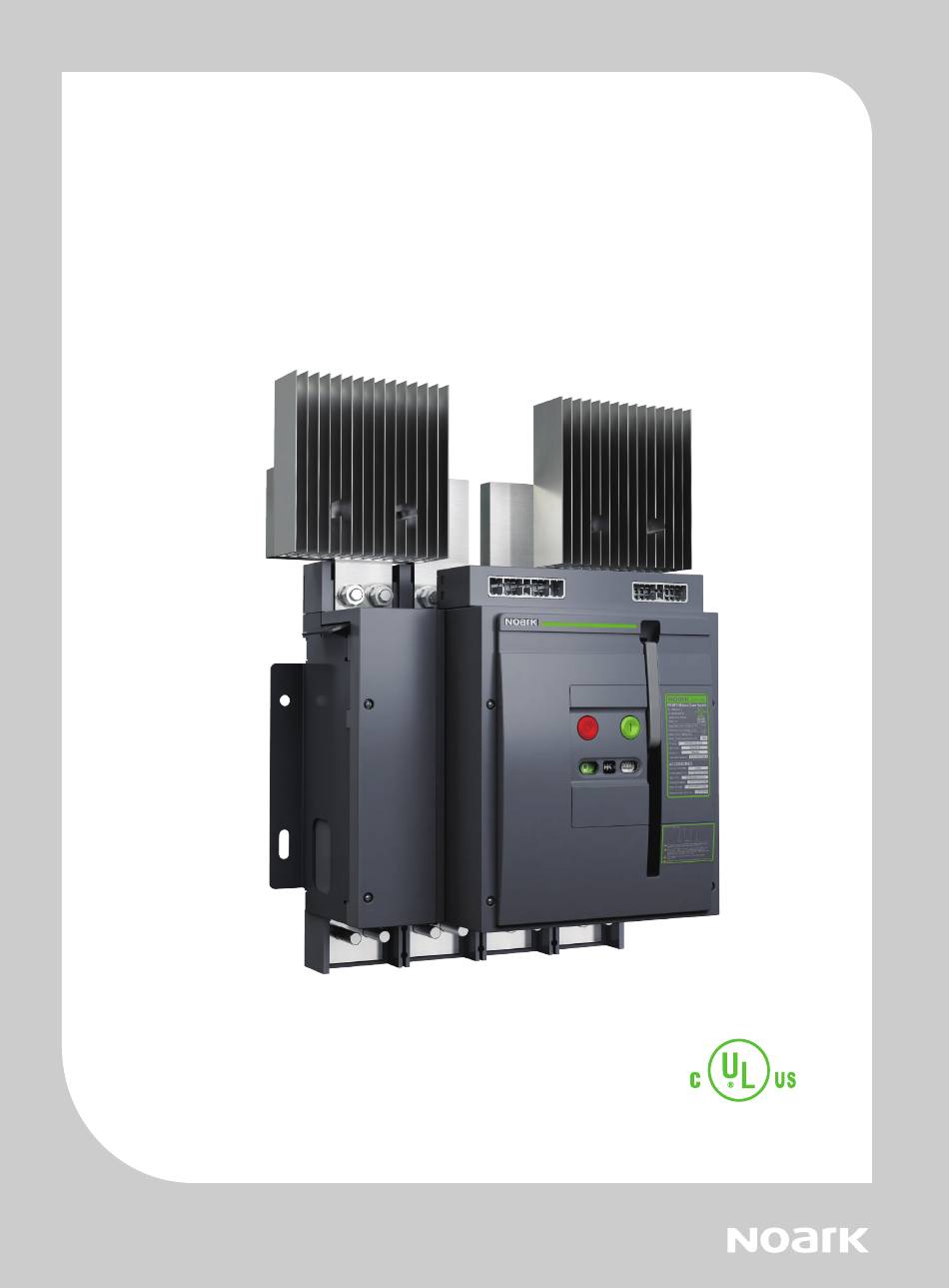

- Page 1 NOARK ASD16DC Air Circuit Breaker PV/BPS Air switch disconnectors from 600A to 1600A are certified to UL 489/UL 489B Usage Manual User Manual ZASD16DC202312UL...
-
Page 3: Table Of Contents
Contents Installation manual Overview ..........................01 Product parameters ......................02 Installation type ......................... 03 Environmental Conditions ..................... 04 Connection type ........................ 05 Package identification ..................... 06 Storage ..........................07 Unpacking ........................... 08 Handling ..........................11 Installation Dimension ....................12 Accessories .......................... 13 Control circuit wiring ....................... - Page 4 This device should be installed, operated, serviced and maintained only by professional personnel. Noark Electric is not responsible for any consequences caused by non-compliance with this the manual. After unpacking the product, check for any damage and the integrity of other items.
-
Page 5: Overview
Overview 1. Jumper busbar Terminal connectors 2. Control circuit wiring terminals Closing push-button (I) 3. Trademark Nameplate 4. Opening push-button (O) 10. Spring charged/discharged indicator 5. Contact position indicator a) Spring charged a) opening C h a r g e d b) Spring discharged Discharged b) closing... -
Page 6: Product Parameters
Product parameters UL489/UL489B Type ASD16DC Pole 4P (in series) Installation Fixed (Front connection） Rated current(A) 600/800/1000/1200/1600 Rate Maximum Volatge DC(V) 1500 Short circuit withstand current(kA)/50ms close ＜60 Operating time(ms) open ＜30 mechanical 12500 Life cycle(times) electrical External dimensions 18.62X14.33X7.81(473X364X198.5) H×W×D (inch/mm) Enclosure dimensions 23.62X19.84X19.68(600X504X500) -
Page 7: Installation Type
Installation type Manual... -
Page 8: Environmental Conditions
100% 100% 100% 1600 100% 100% 100% Altitude ASD16DC air switch disconnectors do not change in rated performance up to 2000m. Above 2000m, the derating coefficients shown in the table must be applied. Altitude(m) <2000 3000 4000 5000 Rated Voltage(V) 1xUe 0.95xUe... -
Page 9: Connection Type
Connection type +(-) Load -(+) NOTE: 1. Available with lower supply only 2. For ungrounded system only Jumper busbars dimensions 6.8 (172) 0.75 (19) 1.38 (35) 2.36 (60) M0.24 (M6) 0.79 (20) 0.98 (25) 1.77 (45) 0.98 (25) 0.49 (12.5) 1.97 (50) 1.97 (50) Applicable busbar as following:... -
Page 10: Package Identification
1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 9 8 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 9 8 NOARK Electrics (USA),Inc. Manual... -
Page 11: Storage
Storage With Plastic Bag Manual... -
Page 12: Unpacking
Unpacking Manual... - Page 13 Nameplate example Unpacking Nameplate example GB/T 14048.3 IEC 60947-3 Ue DC1500V 50kA/1s IP 30 In 1600A DC-PV2 Wiring diagram: Load +(-) Phase barriers (208.5mmX86mmX6mm) should be placed between phases. For 75kA short circuit current at 1250 Vdc nominal 1500 Vdc maximum rating the molded case switch is suitable only for use with battery power supplies.
- Page 14 Handling unit:Ib/kg 600A-1600A Net weight 61.73/28 Gross weight 88.18/40 Manual...
-
Page 15: Handling
Handling Manual... -
Page 16: Installation Dimension
Installation Dimension Lower supply in（mm） 14.33 (364) 3.56 (90.3) 0.75 (19) 2×Φ 0.35 (Φ9) R0.18 (4.5) 0.98 M0.39 (M10) 1.73 (44) 1.97 (50) (25) 2.09 (53.2) 2.76 (70) 2.76 (70) 2.76 (70) 12.39 (316.4) Manual... -
Page 17: Accessories
Accessories Undervoltage release/UVT The undervoltage release is an optional device on both manually and electrically operated air switch disconnectors. It opens the switch disconnector when its supply voltage falls to 30–60% of rated voltage. If the release is not energized to 85% of its supply voltage, the switch disconnector can not be closed electrically or manually. - Page 18 Accessories Auxiliary contact/AX The auxiliary contact remotely monitors ON/OFF position of air switch disconnector from remote place . Contact configuration: 11: 1NO and 1NC; 22: 2NO and 2NC; 22C: 2NO or 2NC; 44C: 4NO or 4NC Voltage /V Rated Current /A Motor operator The electric motor charges the closing spring of mechanism when the switch disconnector is closed.
- Page 19 Accessories Pushbutton lock device/VBP The cover prevents the access to control push button of the switch disconnector. Scope of delivery: Lockable cover (Lock with key is not a part of delivery). Front connection plates/ACP Dimensions in(mm) 0.98 (25) 0.79 (20) 2×Φ0.43 (Φ11) 4×Φ0.35 (Φ8.8) R0.2 (R5)
- Page 20 Accessories Phase barriers/PHS Provides improved isolation between the terminal connectors. Delivered as set (4 pcs for 4P version) Jumper/JPR Used for connecting four poles in series Manual...
-
Page 21: Control Circuit Wiring
Control circuit wiring ASD16DC air switch disconnector control circuit wiring diagram Ready to close main circuit Energy storage Opening Undervoltage contact indication Auxiliary contact for user Closing indication LOAD Short busbars Short busbars MD spring charge motor U1, U2, U3: Spring charge motor power input; Spring charge indicator should be provided by user. - Page 22 Control circuit wiring Ready to close main circuit Energy storage Opening Undervoltage contact indication Auxiliary contact for user Closing indication LOAD Short busbars Short busbars Auxiliary contacts ordered 11# - 22#: N11(11-12//21-24) for regular supply , N22C (11-12-14//21-22-24)、 N44 (11-12//21-24//31-32//41-44)、N44C(11-12-14//21-22-24// 31-32-34//41-42-44) for specially.
- Page 23 ZASD16DC202312UL...
