Adam Hall Gravity PAD SET 1 Quick Start Manual

PAD SET 1
PIPE AND DRAPE SYSTEM WITHOUT CURTAIN
SAFETY INFORMATION
1. Please read these instructions carefully before you start installation
and assembly.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other
information from the equipment.
5. Be attentive when setting up the product and protect yourself from injury.
6. This product is intended for indoor use only. Using it outdoors could lead
to product failure and personal injury.
7. Do not modify this equipment.
8. Comply with all applicable disposal laws in your country. During disposal
of packaging, please separate plastic and paper/cardboard.
9. Plastic bags must be kept out of reach of children.
10. If you have any questions refering to this instruction or any warnings,
please contact your local distributor.
MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at:
https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARA-
TIONS_GRAVITY.pdf
To request warranty service for a product, please contact Adam Hall GmbH,
Adam-Hall-Str. 1, 61267 Neu Anspach / Email Info@adamhall.com /
49 (0) 6081 / 94 19-0
PROPER DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
(Valid in the European Union and other European countries with waste
separation)
This symbol on the product, or the documents accompanying the product,
indicates that this appliance may not be treated as household waste. This is
to avoid environmental damage or personal injury due to uncontrolled waste
disposal. Please dispose of this product separately from other waste and have
it recycled to promote sustainable economic activity.
CAUTION
BEFORE USING THE INSTALLATION, PLEASE CHECK THAT THE TRIPOD IS IN A SECURE
POSITION AND, IF NECESSARY, ALSO SECURE IT AGAINST POSSIBLE TIPPING.
Gravity is a registered brand of the Adam Hall Group
®
FEATURES
• Suitable for all common tripods with 35 mm rods
• Practical snap-in function for telescopic pole with unlocking mechanism
• Up to 4 telescopic poles per adapter
• Adjustable length from 1900 mm to 3500 mm
• Easy assembly without the need for a ladder or additional assistance
• Equipped with a velcro strip for attaching optional molton curtain
DESCRIPTION

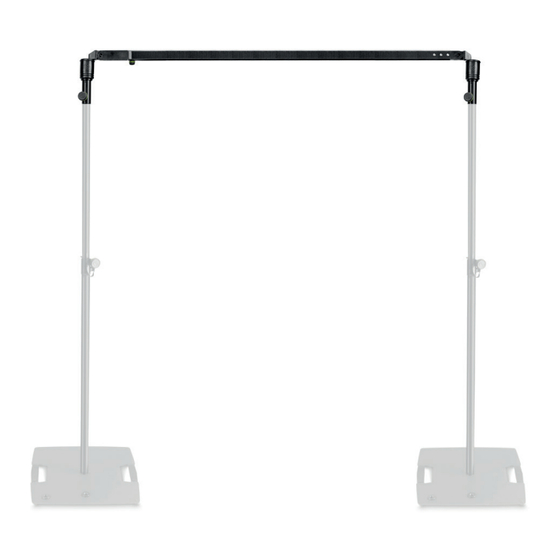

The Gravity® pipe and drape curtain system offers an innovative solution
for musicians, bands, event technicians, theatres, exhibitors and stand
builders. It enables swift and efficient room structuring, area partitioning,
wall suspension, or walkway delineation. Utilising the PAD SET 1, consisting
of the PAD A adapter and the PAD T telescopic pole, standard speaker or
lighting stands with 35 mm mounts can seamlessly transform into compre-
hensive pipe and drape setups with minimal effort. Simply place the PAD
A on to the stand and attach the telescopic pole by inserting its mounting
bolts into the adapter's holes. An optional molton curtain can later be effort-
lessly affixed to the crossbar.
Constructed from steel and plastic, the PAD A features an internal diameter
of 36 mm, perfectly suited for accommodating a 35 mm stand. It boasts four
fixing holes on the top, enabling the mounting of up to four PAD T telescopic
poles. With its convenient snap-in function for securing the telescopic pole
mounting bolts, users can effortlessly and securely lock the poles in place
in a matter of seconds.
Crafted from aluminium, the PAD T telescopic pole extends from 190 cm to
350 cm, enabling customisable system widths. Featuring tilt joints at both
ends, the pole facilitates straightforward and adaptable assembly without
requiring a ladder or assistance from others. For the attachment of the
optional molton curtain (PAD M B 1), the pole boasts a velcro strip spanning
its entire width.
The Gravity® Pipe and Drape curtain system offers maximum flexibility and
adaptability, seamlessly integrating with standard 35 mm stands, offering
individual width and height adjustments, the ability to accommodate up to
four telescopic poles per adapter as well as facilitating solo setup without
the need for a ladder. Whether it's for small events or expansive trade shows,
this system effortlessly conforms to your unique specifications.
SPECIFICATIONS
Product number
Product type
Type
Max. length
Transport length
Weight
Adam Hall GmbH | Adam-Hall-Str. 1
61267 Neu-Anspach | Germany
GPADSET1
Stands and Tripod Accessories
Pipe and drape
3500 mm
1900 mm
3.9 kg
Phone: +49 60 81 · 94 19-0
adamhall.com
