Adam Hall SLT001E User Manual

BEDIENUNGSANLEITUNG
USER´S MANUAL I MANUEL D´UTILISATION

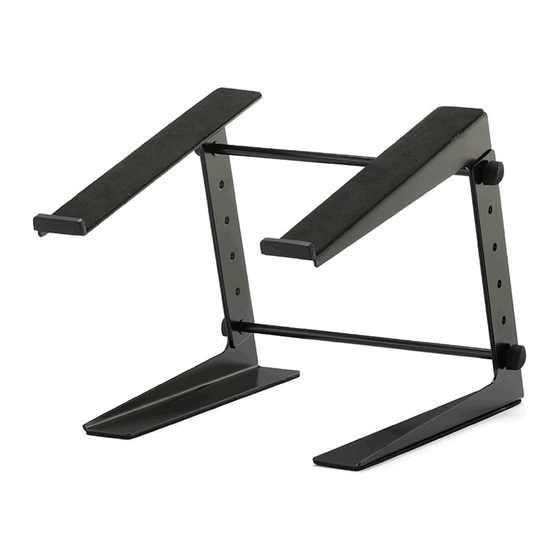

SLT001E / SLT001EW COMPUTER LAPTOP STAND

PARTS

Place Upper
support over
Lower support, so
that the Upper
Support is on the
outside of the
stand
Knobs must be
spaced at least 2
holes apart
Figure A
1.Take one of the upper supports and place it over one of the lower supports (see figure A). Align the upper support holes with the lower support
mounting holes to obtain the desired height. Place one knob at a time through the mounting holes (must be spaced at least 2 holes apart). Take a
stabilizer bar and screw the top knob into the end of the stabilizer bar. Repeat with bottom knob.
2.Repeat above with the other upper support and lower support for the opposite side of the stand (see figure B). Secure all knobs tight to minimize
stand wobble.
Tel.: (+49) 60 81 / 94 19 0 Fax.: (+49) 60 81 /94 19 1000 e-mail: mail@adamhall.com
Figure B
Adam Hall GmbH · Daimlerstr. 9 61267 Neu-Anspach Germany
SUPPORT ASS
