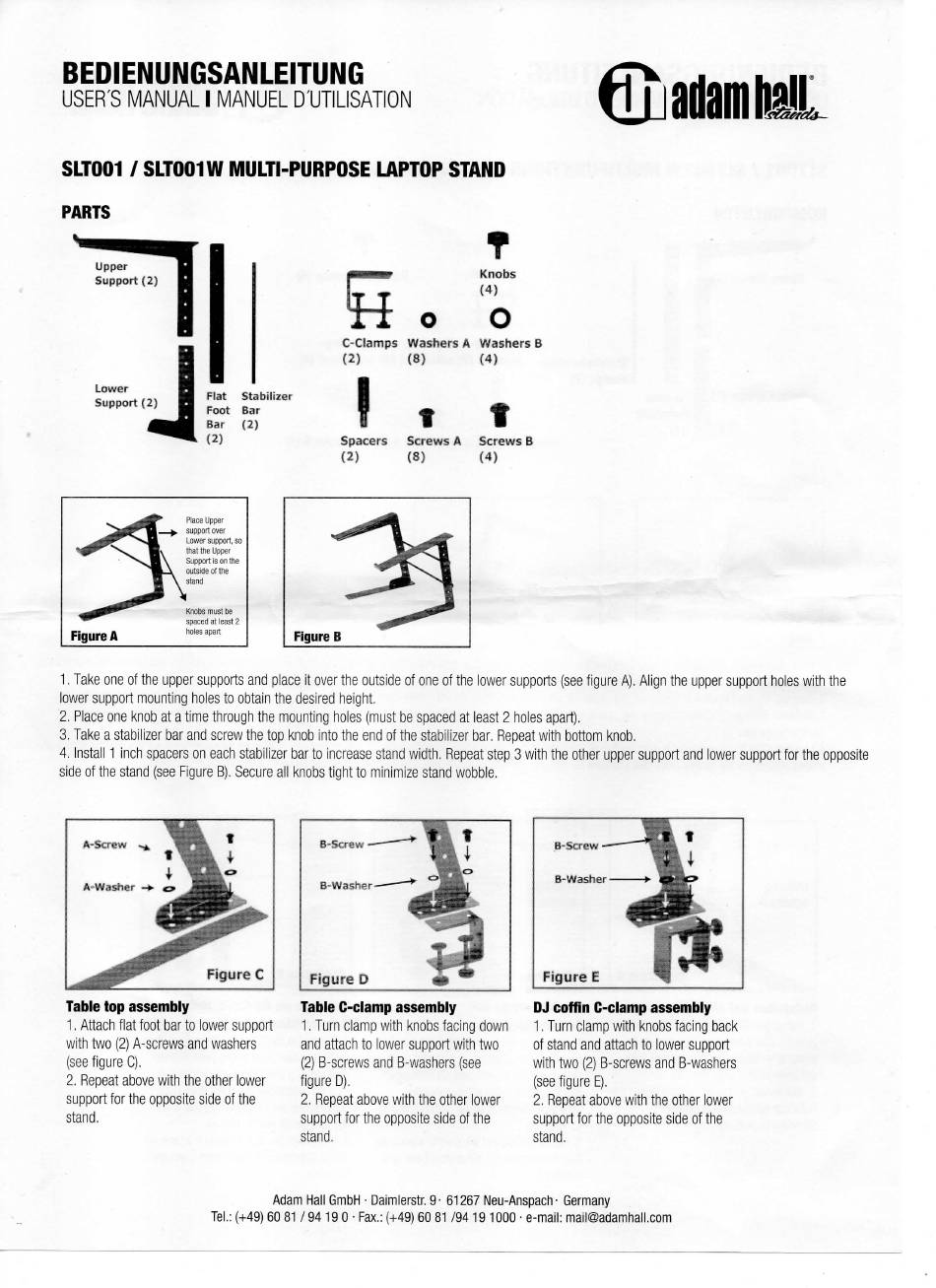

Adam Hall SLT001 User Manual

BEDIENUNGSANLEITUNG
USER'S MANUALI MANUEL D' U TILISATION

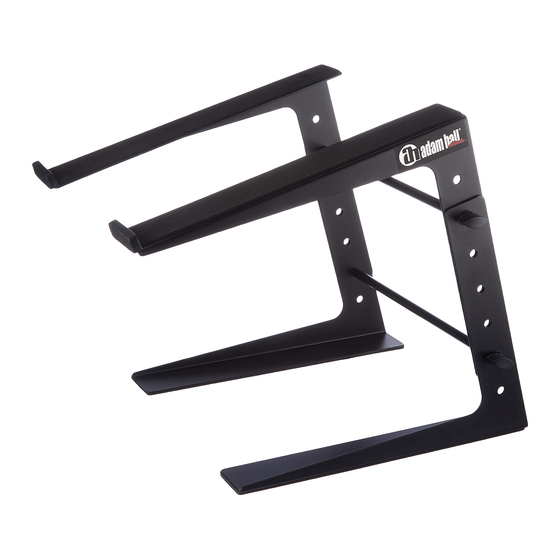

SLT001 / SLT001W MULTI-PURPOSE LAPTOP STAND
PARTS
Lower
Support (
Fiat Stabilizer
Foot Bar
Bar (2)
(2)
Knobs
(4)
C-Clamps Washers A Washers B
(2)
( 8 )
(4)
!
Spacers Screws A Screws B
(2) (8) (4)
É É ^ "
Place Upper
^ support over
S &
Lower support, so
WÊ\, the Upper
• S ^ M \t is on the
^fcA
outside of the
Knobs must be
spaced at least 2
Figure A
hoies apart
1. Take one of the upper supports and place it over the outside of one of the lower supports (see figure A). Align the upper support hoies with the
lower support mounting hoies to obtain the desired height.
2. Place one knob at a time through the mounting hoies (must be spaced at least 2 hoies apart).
3. Take a stabilizer bar and screw the top knob into the end of the stabilizer bar. Repeat with bottom knob.
4. Install 1 inch spacers on each stabilizer bar to increase stand width. Repeat step 3 with the other upper support and lower support for the opposite
side of the stand (see Figure B). Secure ail knobs tight to minimize stand wobble.
Table top assembly
1. Attach flat foot bar to lower support
with two (2) A-screws and washers
(see figure C).
2. Repeat above with the other lower
support for the opposite side of the
stand.
B - S c r e w -
B-Washer
Figure D
Table C-clamp assembly
1. Tu m clamp with knobs facing down
and attach to lower support with two
(2) B-screws and B-washers (see
figure D).
2. Repeat above with the other lower
support for the opposite side of the
stand.
DJ coffin C-clamp assembly
1. Turn clamp with knobs facing back
of stand and attach to lower support
with two (2) B-screws and B-washers
(see figure E).
2. Repeat above with the other lower
support for the opposite side of the
stand.
Adam Hall GmbH • Dalmlerstr. 9 • 61267 Neu-Anspach- Germany
Tel.: (+49) 60 81 / 94 19 0 • Fax.: (+49) 60 81 /94 19 1000 • e-mail: mail@adamhall.com
