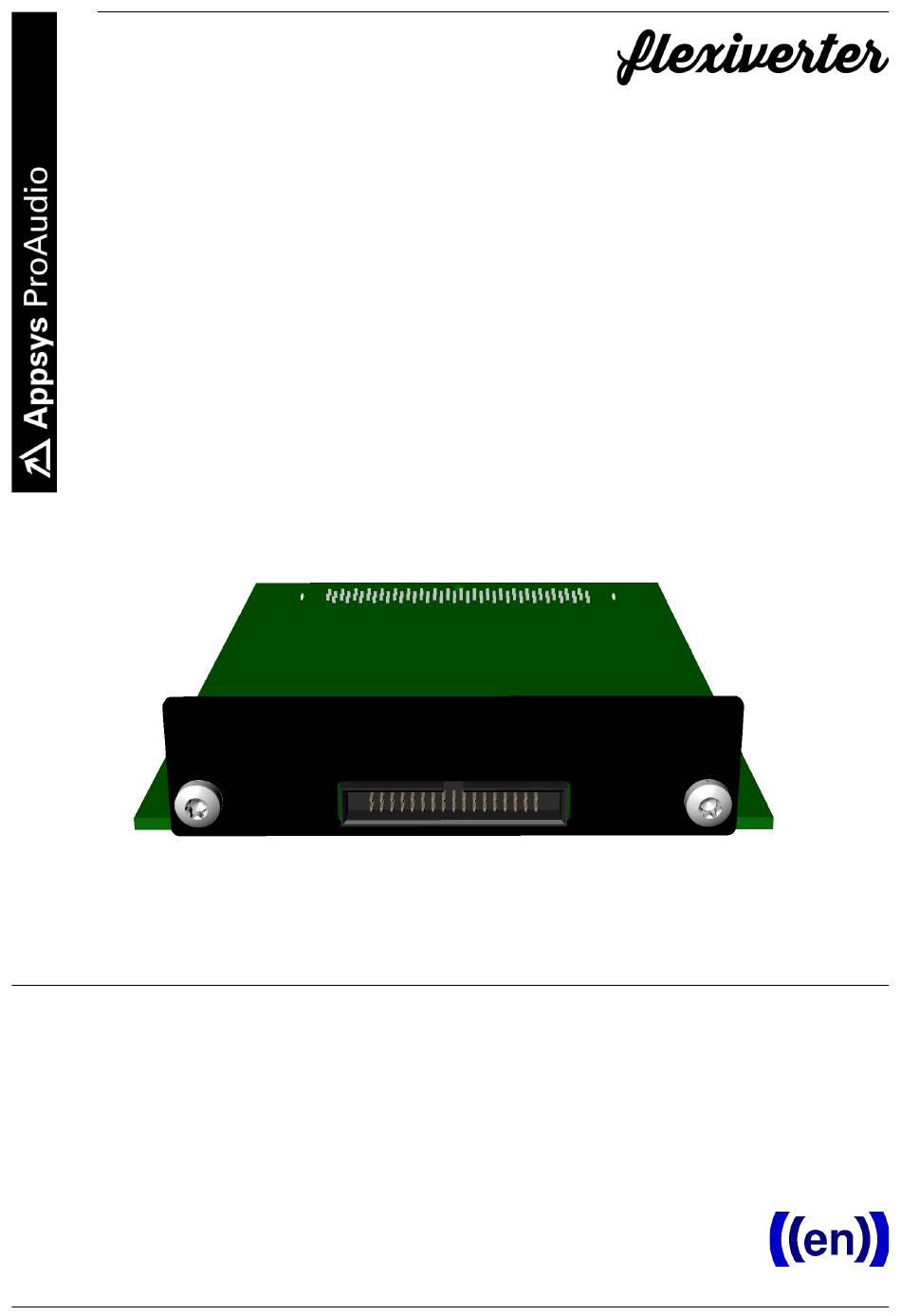

- Page 1 AUX-TDM 64x64 channel Time Division Multiplexing/ I2S Card for FLX devices User's Manual...
-
Page 2: Table Of Contents
User's Manual Table of Contents DESCRIPTION....................3 1.1. Box Contents.................... 3 INSTALLATION....................3 2.1. Opening the flexiverter................3 2.2. Flexiverter Inside View................4 2.3. Installing the card..................4 TDM INTERFACE PINS..................5 3.1. Pinout (when looking on the card connectors mating face)......5 3.2. -
Page 3: Description
AUX-TDM DESCRIPTION The AUX-TDM card provides up to 64x64 channels Time Division Multiplexing (TDM) interface on a 3.3V LVCMOS I/O. It supports four lines of data plus BCLK/LRCLK/MCLK/MUTE outputs, and four lines of data plus BCLK/LRCLK/MUTE inputs. It can be fitted into every flexiverter (FLX) device for the following purposes: to use the FLX as standalone converter between the built-in interface and this ... -
Page 4: Flexiverter Inside View
User's Manual 2.2. Flexiverter Inside View ➊ Screws for AUX cover plate ➋ AUX card connector 2.3. Installing the card ➊ Remove the screws holding the cover plate, and the blank cover plate Insert the AUX card from inside, using the supplied cover plate. ... -
Page 5: Tdm Interface Pins
AUX-TDM TDM INTERFACE PINS 3.1. Pinout (when looking on the card connectors mating face) ... -
Page 6: I/O Waveforms
User's Manual TDM_IN* channels during LRCLK_IN=1 23 TDM_OUT0 Output Audio data output line 0. Ch 1-16 Ch 1-8 Ch 1-4 Ch 1-2 32 bit per channel, left-justified or I2S (512 bit per (256 bit per (128 bit per (64 bit per depending on DIP setting. -
Page 7: Dip Settings
AUX-TDM DIP SETTINGS The behavior of the card can be controlled by DIP switches 4..6 on the FLX device. Changing the DIP settings will come immediately into effect. TDM mode *TDM16. Each I/O line carries 16 channels of 32 bit audio data each ▀ ▀... -
Page 8: Specifications
User's Manual SPECIFICATIONS Parameter Value Dimensions 118x80mm (WxH) Weight 40 g Operating 0..+55°C, non-condensing temperature Storage temperature -40..+85°C, non-condensing Inputs Up to 64 channels TDM16 (4 lines with 16ch each) Up to 32 channels TDM8 (4 lines with 8ch each) Up to 16 channels TDM4 (4 lines with 4ch each) Up to 8 channels stereo (4 lines with 2ch each) LRCLK (left/right clock). -
Page 9: Available Flx Devices
* Not covered by the warranty are any damages resulting out of improper use, willful damage, normal wear-out (especially of the connectors) or connection with incompatible devices. 7.4. Manufacturer contact Appsys ProAudio www.appsys.ch Rolf Eichenseher info@appsys.ch Bullingerstr. 63 / BK241 Phone: +41 43 537 28 51 CH-8004 Zürich... -
Page 10: Document Revision History
About this document All trademarks mentioned in this document are property of the respective owners. All information provided here is subject to change without prior notice. Document Revision: 1 · 2024-05-02 Copyright © 2024 Appsys ProAudio · Printed in Switzerland IDENT 9.00.xxxxx.00...
