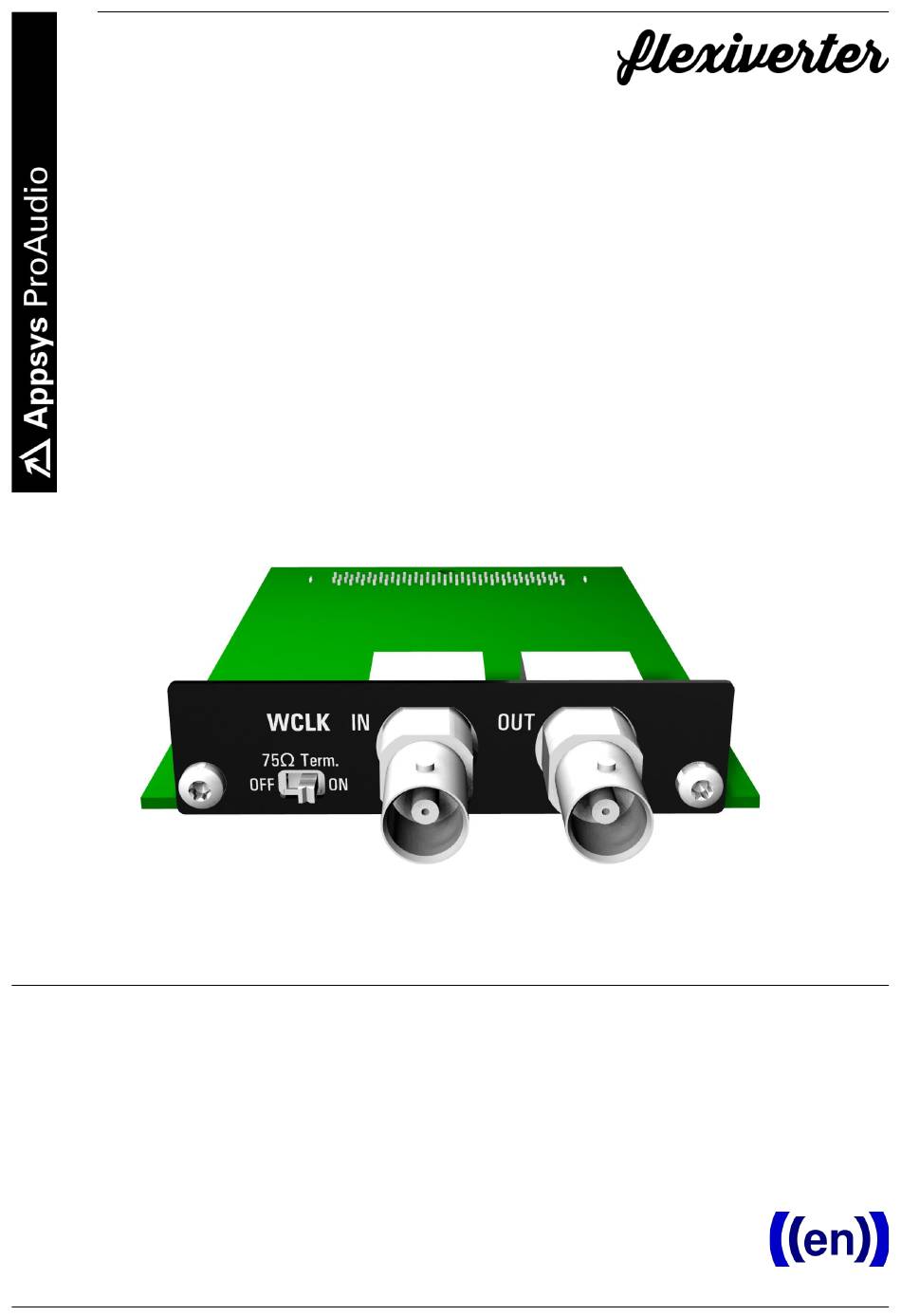

- Page 1 AUX-WORDCLOCK BNC Wordclock I/O Extension Card for FLX devices User's Manual...
-
Page 2: Table Of Contents
User's Manual Table of Contents CONNECTORS....................3 DESCRIPTION....................3 2.1. Box Contents.................... 3 INSTALLATION....................4 3.1. Opening the flexiverter................4 3.2. Flexiverter Inside View................4 3.3. Installing the card..................4 DIP SETTINGS....................5 SELF-TEST......................5 SPECIFICATIONS....................6 APPENDIX......................6 7.1. Available AUX cards..................6 7.2. -
Page 3: Connectors
AUX-WORDCLOCK CONNECTORS ➊ Wordclock Input ➋ Wordclock Output Input termination switch. Set to ON when "IN" cable ends here • ➌ Set to OFF when "IN" cable is connected via BNC T-style adapter • and goes further to another device DESCRIPTION The AUX-WORDCLOCK card provides wordclock I/O via BNC connectors. -
Page 4: Installation
User's Manual INSTALLATION 3.1. Opening the flexiverter Required: Torx T10 screwdriver Power off the device and detach all cables to avoid short-circuit or damage Detach the device from the rack-mount kit Remove the four top screws and the top cover by pulling it upwards: ... -
Page 5: Dip Settings
AUX-WORDCLOCK DIP SETTINGS The behavior of the card can be controlled by DIP switches 4..6 on the FLX device. Changing the DIP settings will come immediately into effect. AUX- True to samplerate* ▀ WORDCLOCK ▃ Always x1 (single speed) * Default setting SELF-TEST The card can be tested for correct operation by the user. -
Page 6: Specifications
User's Manual SPECIFICATIONS Parameter Value Dimensions 118x80mm (WxH) without connectors Weight Operating 0..+55°C, non-condensing temperature Storage temperature -40..+85°C, non-condensing Cable lengths Max. 100m Sample rates 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz APPENDIX 7.1. Available AUX cards At the time of writing (2021-11), the following AUX cards are available. More will come, please check www.appsys.ch for updates. -
Page 7: Available Flx Devices
* Not covered by the warranty are any damages resulting out of improper use, willful damage, normal wear-out (especially of the connectors) or connection with incompatible devices. 7.4. Manufacturer contact Appsys ProAudio www.appsys.ch Rolf Eichenseher info@appsys.ch Bullingerstr. 63 / BK241 Phone: +41 43 537 28 51 CH-8004 Zürich... - Page 8 User's Manual Copyright © 2021 Appsys ProAudio · Printed in Switzerland IDENT 9.00.16142.00...
