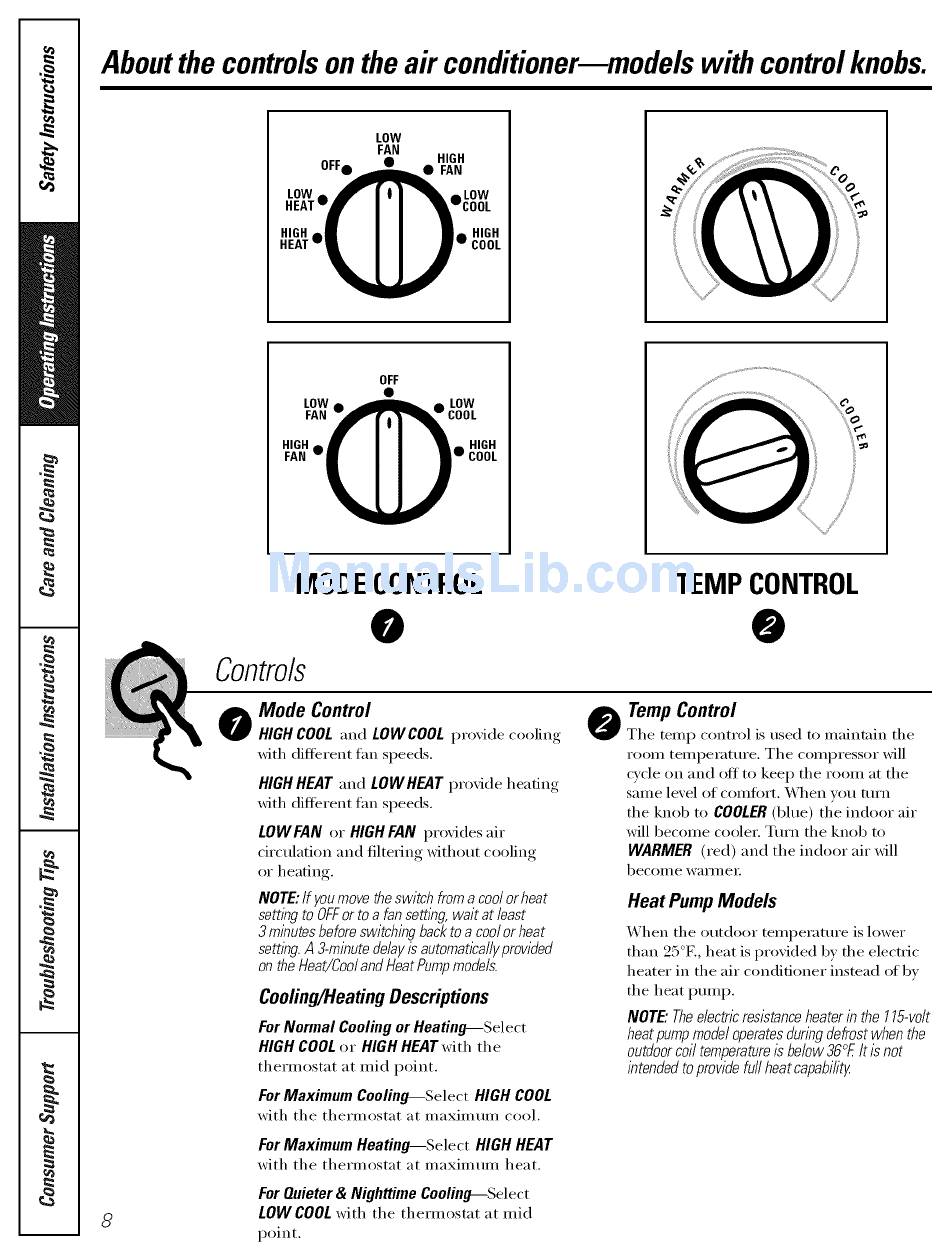

Aboutthe controlsonthe air conditioner--modelswith controlknobs.
LOW
FAN
OFF • HIGH
rOI_j_I_ FAN
LOW_ _ I I I _ ALOW
HEAT'I I I yCOOL
HIGH_BB I I II_ HIGH
HEAT--_"
COOL
OFF
LOWa _ a LOW
FAN_COOL
HIGHm • I I •_ HIGH
FAN w_w
COOL
/
S
8
MODECONTROL TEMP CONTROL
0
o Mode Control
HIGHCOOLand LOWCOOLI)r°_ide cooling
with different tim speeds,
HIGHHEATand LOWHEATprovide
heating
with different Lm speeds.
LOWFAN or HIGHFAN
provides
air
cir(-ulation and filtering without cooling
or heating.
NOTE: If youmovetheswitchfroma coolor heat
settingto OFF or to a fansetting,wait at least
3 minutes beforeswitchingbacktoa coolor heat
setting. A 3-minute delay is automat/cally provided
on the Heat/Cool and Heat
Pump
models.
Cooling/Pleating Descriptions
ForNormal Coolingor Heating--Select
HIGH COOLor HIGHHEATwifl_ th e
thermostat at mid point.
ForMaximum
Cooling--Select
HIGH COOL
with the thermostat at maximum
cool,
o Temp Control
The temp control is used to maintnin the
room temperatm'e. The compressor will
cycle on and off to kee I) the room at the
same level of comfiwt. _\]_en you tm'n
the knob to COOLER (blue) the indoor air
will become cooler, Tm'n the knob to
WARMER (red) and the indoor air will
become waxen eI;
Heat Pump Models
When the outdoor temperature is lower
than 25°F., heat is provided by the electric
heater in the air conditioner instead ot bv
the heat I)ump.
NOTE" Theelectricresistance heaterin the 115-volt
heatpumpmodeloperates duringdefrostwhenthe
outdoor c oil temperature i s below38°£It isnot
intended toprovidefullheatcapabilit_
For Maximum Heating_Select HIGH HEAT
with the thermostat at maximmn heat.
For Quieter & Nighttime Cooling--.Select
LOW COOL with the thermostat at mid
point,
