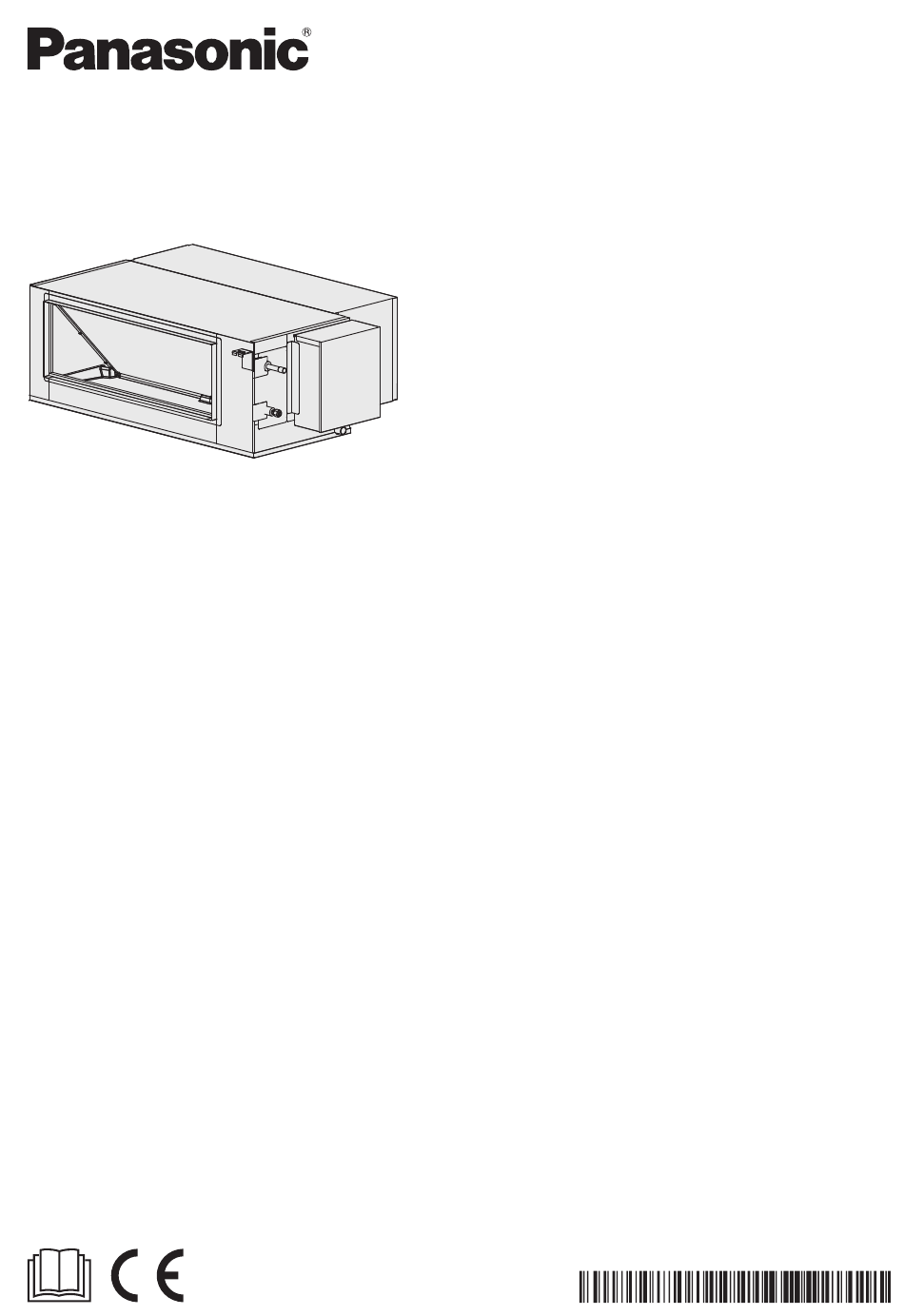

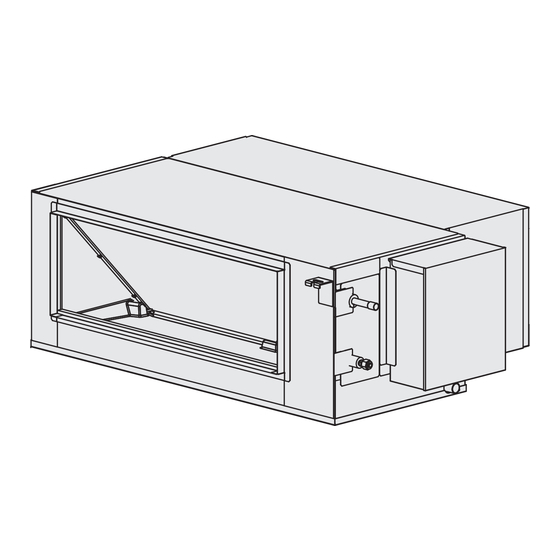

Operating Instructions
Air Conditioner
Model No.
Indoor Unit
S-200PE4E
S-250PE4E
Outdoor Unit
U-200PZH4E8
U-250PZH4E8
ENGLISH
Before operating the unit, please read these operating
instructions thoroughly and keep them for future reference.
Before installation, the installer must:
Read the Installation Instructions, then request the customer
keep them for future reference.
WEB-ACXF55-39460-EN
Advertisement
Table of Contents
Related Manuals for Panasonic S-200PE4E
Summary of Contents for Panasonic S-200PE4E
- Page 1 Operating Instructions Air Conditioner Model No. Indoor Unit Outdoor Unit S-200PE4E U-200PZH4E8 S-250PE4E U-250PZH4E8 ENGLISH Before operating the unit, please read these operating instructions thoroughly and keep them for future reference. Before installation, the installer must: Read the Installation Instructions, then request the customer keep them for future reference.
-
Page 2: Table Of Contents
Optional (For all indoor units) Thank you for purchasing Panasonic Air Conditioner. Table of Contents Safety Precautions ..3-12 To Learn More....13 Cleaning the Infrared The receiver ECONAVI Air Conditioner ....13 Remote Sensor (Part no.: Troubleshooting ....14-15 Controller CZ-RWRC3) (Part no.:... -
Page 3: Safety Precautions
Safety Precautions To prevent personal injury, injury to others or property damage, please comply with the following: Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classifi ed as below: This appliances is not intended for accessibility by the general public. - Page 4 Safety Precautions Power supply WARNING Do not use a modifi ed cord, joint cord, extension cord or unspecifi ed cord to prevent Indoor unit and outdoor unit overheating and fi re. This appliance can be used by children aged To prevent overheating, fi re or electric shock: from 8 years and above and persons with •...
- Page 5 CAUTION WARNING Indoor unit and outdoor unit This appliance is fi lled with R32 (mild fl ammable refrigerant). Do not wash the indoor unit with water, If the refrigerant is leaked and benzine, thinner or scouring powder to avoid exposed to an external ignition damage or corrosion at the unit.
- Page 6 Safety Precautions The mixing of diff erent refrigerants within b) Detailed knowledge of and skills in a system is prohibited. Models that use handling fl ammable refrigerants, personal refrigerant R32 and R410A have a diff erent protective equipment, refrigerant leakage charging port thread diameter to prevent prevention, handling of cylinders, erroneous charging with refrigerant R22 and...
- Page 7 1. Installation (Space) 2-2. Work • Product with fl ammable refrigerants, shall • Prior to beginning work on systems be installed according to the minimum room containing fl ammable refrigerants, safety area, A (m²) mentioned in Installation checks are necessary to ensure that the Instructions.
- Page 8 Safety Precautions 2-7. Checks to the refrigerating equipment 2-4. Presence of fi re extinguisher • Where electrical components are being • If any hot work is to be conducted on the changed, they shall be fi t for the purpose and refrigerating equipment or any associated to the correct specifi...
- Page 9 2-8. Checks to electrical devices 6. The following leak detection methods • Repair and maintenance to electrical are deemed acceptable for all refrigerant components shall include initial safety checks systems and component inspection procedures. • No leaks shall be detected using detection •...
- Page 10 Safety Precautions 7. Refrigerant removal and circuit 8. Charging procedures evacuation • In addition to conventional charging • When breaking into the refrigerant circuit to procedures, the following requirements shall make repairs – or for any other purpose – be followed. conventional procedures shall be used.
- Page 11 • Electrostatic charge may accumulate and 9. Decommissioning create a hazardous condition when charging • Before carrying out this procedure, it is or discharging the refrigerant. To avoid fi re or essential that the technician is completely explosion, dissipate static electricity during familiar with the equipment and all its details.
- Page 12 Safety Precautions • The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of fl ammable refrigerants. Consult manufacturer if in doubt. •...
-
Page 13: To Learn More
To Learn More... To enjoy fresher and cleaner environment • nanoe X automatically starts when the unit is turned on. • This operation can be activated even when the unit is OFF. • If a power failure occurs during this operation, this operation resumes immediately when power resumes. -
Page 14: Troubleshooting
Troubleshooting The following symptoms do not indicate malfunction. Symptom Cause The system is not turn on or respond • For new product fi rst time power on after to remote controller immediately after installation, the system requires approximately 5 power on. minutes for “System Auto confi... - Page 15 When... ■ Conducting a seasonal inspection after extended period of non-use • Check that there is no obstruction around the air inlets and outlet vents. • These units are mounted inside the ceiling. It uses external air intake vent and air outlet vent to operate.
-
Page 16: Information
Information Information for Users on Collection and Disposal of Old Equipment and Used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation. - Page 17 The full text of the declaration of conformity is available at the following internet address: http://www.ptc.panasonic.eu/ Contact in the UK : Panasonic UK, a branch of Panasonic Marketing Europe GmbH, Maxis 2, Western Road, Bracknell, Berkshire, RG12 1RT Manufactured by:...
