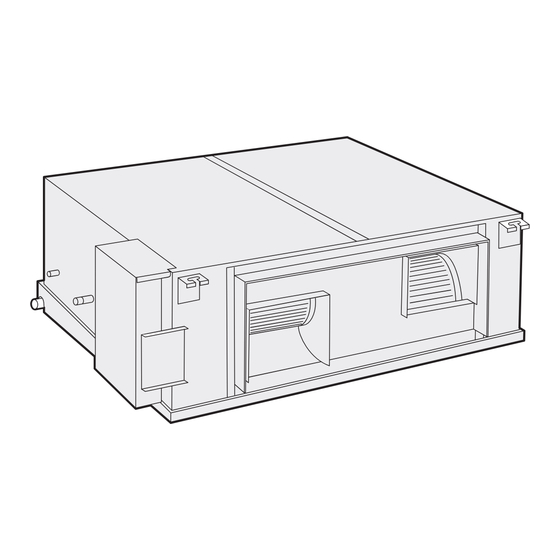

High Static Pressure Ducted
(Type E2)
Model No.
INDOOR UNIT
High Static Pressure Ducted
S-200PE2R5
Before operating the unit, read these operating instructions thoroughly and keep them for future reference.
85464609316020
OUTDOOR UNIT
Heat Pump Unit
(Type E2)
U-200PE1R8
Panasonic Corporation
1006 Kadoma, Kadoma City, Osaka, Japan
Operating Instructions
Air Conditioner
(3-phase)
CV6233318783
Advertisement
Table of Contents
Related Manuals for Panasonic S-200PE2R5
Summary of Contents for Panasonic S-200PE2R5
-
Page 1: Operating Instructions
INDOOR UNIT OUTDOOR UNIT High Static Pressure Ducted Heat Pump Unit (Type E2) (3-phase) U-200PE1R8 S-200PE2R5 Before operating the unit, read these operating instructions thoroughly and keep them for future reference. Panasonic Corporation 85464609316020 CV6233318783 1006 Kadoma, Kadoma City, Osaka, Japan... -
Page 2: Table Of Contents
Thank you for purchasing this Panasonic product. WARNING This product is a commercial air conditioner indoor unit. Installation Instructions attached. Contents Confirm to authorized dealer or specialist on usage of specified refrigerant type. Using of refrigerant other than the Safety Precautions ............2 specified type may cause product Precautions for Use ............ - Page 3 CAUTION This appliance is intended to be used Provide a power outlet to be used by expert or trained users in shops, exclusively for each unit, and a in light industry and on farms, or for power supply disconnect, Earth commercial use by lay persons.
-
Page 4: Precautions For Use
Precautions for Use Installation Operation Condition This air conditioner must be installed properly by qualified Use this air conditioner under the following temperature range. installation technicians in accordance with the Installation „ Indoor temperature range: Instructions provided with the unit. Cooling mode 18°C ~ 32°C (*DBT) Before installation, check that the voltage of the electric Heating mode 16°C ~ 30°C (*DBT) -
Page 5: Names Of Parts
Names of Parts INDOOR UNIT OUTDOOR UNIT Air intake Air outlet side duct flange (rear) Water drain Electrical Air outlet side component box duct flange (2 locations) Air intake Drain port (bottom) Optional Wireless Remote Controller Timer Remote Controller Model No. Model No. -
Page 6: Operation
Operation For details, refer to the Operating Instructions attached to the optional Remote NOTE Controller. „ Fan speed „ Operation mode Select from: HEAT /DRY /COOL /FAN /AUTO . High /Medium /Low /Auto Operation Mechanism „ Heating Performance „ Oil Recovery Since this air conditioner utilizes outside air for heating, The indoor unit fan may run at a slow speed in order to its heating performance deteriorates as outside... -
Page 7: Maintenance
Maintenance Do not attempt to clean inside the unit by yourself. Refer to the section “Care and Cleaning” in the Installation Instructions. WARNING CAUTION For safety, be sure to turn the air conditioner off and Never use solvents or harsh chemicals. Also, do not wipe disconnect the power before cleaning. -
Page 8: Troubleshooting
Troubleshooting Check before consulting or requesting services. Symptom Cause / Action Sound like streaming water is heard • Sound of refrigerant liquid flowing inside unit during operation or after operation. • Sound of drainage water through drain pipe Noise Cracking noise is heard during operation Sound due to temperature changes of parts or when operation stops. -
Page 9: Specifications
Specifications Indoor unit / Outdoor unit Model Name S-200PE2R5 U-200PE1R8 230 / 240 V ～ 50Hz 400 / 415 V 3N ～ 50Hz Power Source 20.0 Cooling capacity BTU/h 68,200 22.4 Heating capacity BTU/h 76,400 High dB(A) 56.5 Sound Pressure... - Page 10 MEMO...
- Page 11 MEMO...
- Page 12 Panasonic Corporation Website: http://www.panasonic.com © Panasonic Corporation 2015 85464609316020 Printed in China DC0315-0...
