OPERATION & SERVICE MANUAL
Models: 7054-020, 7054-022
67 Ton (60.8 Metric Ton)
Universal Jack Tester
08/2022 Rev. 02
For Spare Parts, Operations & Service Manuals or Service Needs
Scan the QR code or visit Tronair.com/aftermarket
ColumbusJACK/Regent
Phone: 614.443.7492
1 Air Cargo Pkwy East
Web: www. columbusjack.com
Swanton, OH 43558
Email: sales@ columbusjack.com
Advertisement
Table of Contents
Related Manuals for Tronair Columbus Jack 7054-020
Summary of Contents for Tronair Columbus Jack 7054-020

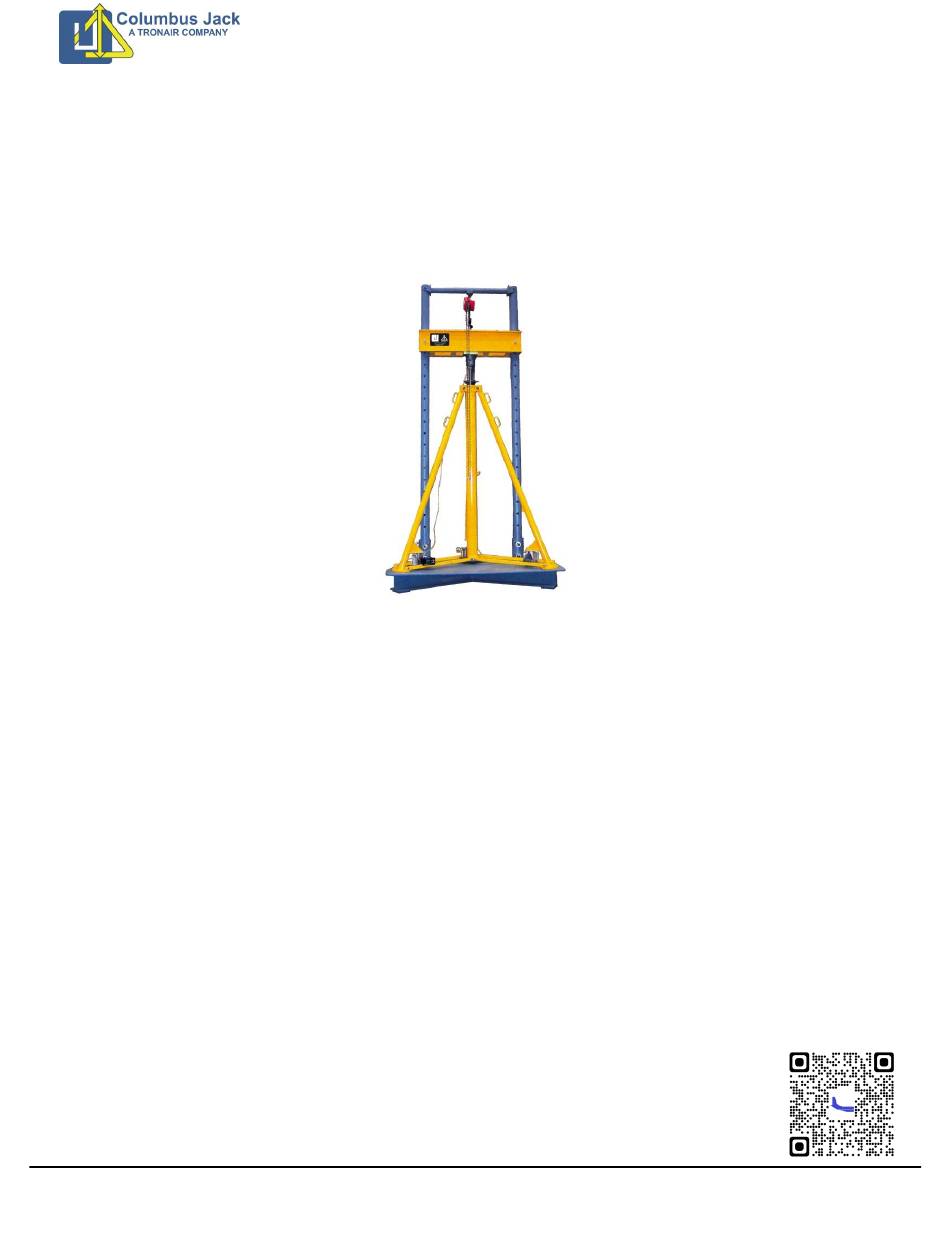

- Page 1 67 Ton (60.8 Metric Ton) Universal Jack Tester 08/2022 Rev. 02 For Spare Parts, Operations & Service Manuals or Service Needs Scan the QR code or visit Tronair.com/aftermarket ColumbusJACK/Regent Phone: 614.443.7492 1 Air Cargo Pkwy East Web: www. columbusjack.com Swanton, OH 43558 Email: sales@ columbusjack.com...
- Page 2 REVISION DATE TEXT AFFECTED 03/2018 Original release 08/2022 Modified 1.4 Specifications and Parts List...
-
Page 3: Table Of Contents
Models: 7054-020 and 7054-022 67 Ton (60.8 Metric Ton) Universal Jack Tester TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 SAFETY INFORMATION ..............................1 USAGE AND SAFETY INFORMATION ......................1 ASSEMBLY .................................. -
Page 4: Product Information
67 Ton (60.8 Metric Ton) Universal Jack Tester This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 5: Assembly
Models: 7054-020 and 7054-022 67 Ton (60.8 Metric Ton) Universal Jack Tester ASSEMBLY Place the base in position. CAUTION! Make sure there is at least 24 ft (7.3 m) vertical clearance for tester assembly. WARNING! Use caution when working around the supported load beam. Place the load beam on the base as shown. -
Page 6: Operation
Models: 7054-020 and 7054-022 67 Ton (60.8 Metric Ton) Universal Jack Tester OPERATION Turn power source “on”. Permit the control box to do a self-check for approximately one (1) minute. Position the beam assembly as required (Reference Section 3.4 Beam Assembly Positioning). WARNING! Jack must be centered and leveled under load cell to prevent side loads applied to jack tester. -
Page 7: Load Cell
Models: 7054-020 and 7054-022 67 Ton (60.8 Metric Ton) Universal Jack Tester LOAD CELL MAINTENANCE Refer to Vishay Maintenance Manual for complete instructions on load cell maintenance and calibration. (See Appendix) TO CHANGE DISPLAY TO INDICATE TONS MENU EDIT ENTER Depress “MENU”... -
Page 8: To Change Display To Indicate Pounds
Website: www. columbusjack.com For Spare Parts, Operations & Service Manuals or Service Needs: Scan the QR code or visit Tronair.com/aftermarket RECOMMENDED SPARE PARTS LISTS Reference the following page(s) for Replacement Parts and Kits available. IN SERVICE SUPPORT Contact Columbus Jack. for technical services and information. See Section 1.3 Manufacturer. -
Page 9: Guarantees/Limitation Of Liability
Models: 7054-020 and 7054-022 67 Ton (60.8 Metric Ton) Universal Jack Tester GUARANTEES/LIMITATION OF LIABILITY ColumbusJACK Corporation, (Seller) warrants each new product of its manufacture to be free from defects in material or workmanship, under proper, reasonable and normal use and service, and for a period of twelve (12) months after date of shipment from Seller’s Swanton, OH. - Page 10 Models: 7054-020 and 7054-022 67 Ton (60.8 Metric Ton) Universal Jack Tester Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. JACK 08/2022 | Rev. 02 Page | 7...
- Page 11 Models: 7054-020 and 7054-022 67 Ton (60.8 Metric Ton) Universal Jack Tester Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. VIEW A - SCALE: 2/1 BACK OF LOAD BEAM TYPICAL BOTH SIDES Item Part Number Description...
- Page 13 APPENDIX I Vishay Readout...
