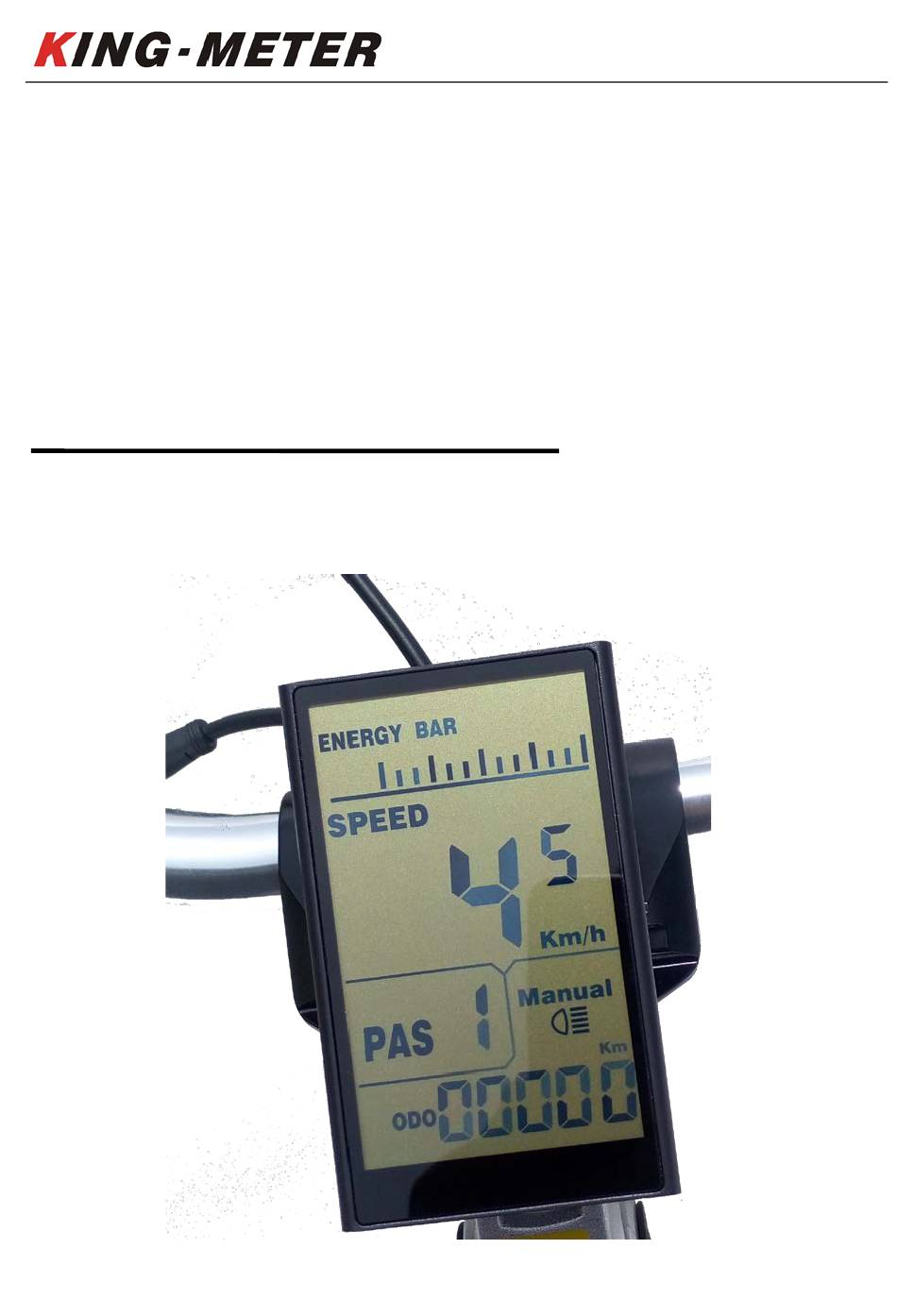

  • Page 1 KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 0378 USERS GUIDE NOKEE LCD...
  • Page 2: Table Of Contents

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 0378 Content Preface ................................. 1 1. Appearance and dimension ........................2 1.1 Main Materials and colors ......................2 2. Functions and N3 Button ........................3 2.1 Functions Summary ........................
  • Page 3: Preface

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 0378 Preface Dear users, Please read through the instructions of NOKEE meter carefully before using it to ensure a better performance of your e-bike. We will use the most concise words to show you all detailed steps for using it, including the steps from installation and setting of hardware through normal use of the instrument.
  • Page 4: Appearance And Dimension

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 0378 1. Appearance and dimension 1.1 Main Materials and colors The main materials are aluminum alloy and tempered glass. The color is black frosted, and the material of the shell allows normal use at a temperature of -40°C to 80°C, and can ensure...
  • Page 5: Functions And N3 Button

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 0378 2. Functions and N3 Button 2.1 Functions Summary NOKEE provides you with a variety of function displays that can meet your riding needs. The contents displayed by NOKEE list as follows: ◆...
  • Page 6: N3 Button

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 0378 2.3 N3 Button The button body is made of PC material, and the button part is made of soft silicone material, and the whole body is black. There are three buttons on the NOKEE button.
  • Page 7: Installation Instruction

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 0378 4. Installation Instruction Step 1: Opening of the holder and snap it to the handlebar. Step 2: Adjust the angle and tighten the holder with screws.
  • Page 8: User Interface

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 0378 5.2 User Interface NOKEE user interface 5.3 Speed/Trip/ODO Long press [MODE] button and [UP] button to enter the speed switching interface, SPEED...
  • Page 9: Trip/Odo

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 0378 5.4 Trip/ODO Short press the [MODE] key to switch the mileage information, the display sequence is: TRIP A → TRIP B → ODO → REMAIN DISTANCE → TRIP A. As shown in the figure: 5.5 Walk Assist Mode...
  • Page 10: Headlight On/Off

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 0378 Walk Interface 5.6 Headlight On/Off Long press the [UP] button to display the interface as shown on the right, and the icon appears, indicating that the lights have been turned on.
  • Page 11: Battery Indicator

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 0378 5.7 Battery Indicator When the battery level is displayed as shown on the right, it means that the battery is under voltage, please charge it in time! 6.
  • Page 12: Maximum Speed Limit Setting

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 0378 6.2 Maximum speed limit setting Short press 【UP】 / 【 DOWN】 button to set the maximum speed limit, the setting range is 20-40 Km/h.
  • Page 13: Exit Settings

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 0378 6.4 Exit settings In the setting state, long press 【MODE】button(more than 2 seconds) to confirm to save the current setting and exit the current setting state. Long press [DOWN] button(more than 2 seconds) to cancel the current operation and exit the setting without saving the current setting data.
  • Page 14: Faq

    9. Quality Assurance and Warranty Scope I, Warranty Information: 1, King-Meter will be responsible for all faults arising during normal operation that are caused by a quality defect. 2, The warranty time is 24 months from the day the display leaves the factory.
  • Page 15: Version Changes

    The instruction manual of this display is the operation manual of the general software version (version 1.0) of Tianjin King-Meter Technology Co., Ltd. The version of the display software used on some vehicles may be slightly different from this manual, and the actual version used...
  • Page 16 KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 0378 KING-METER...
