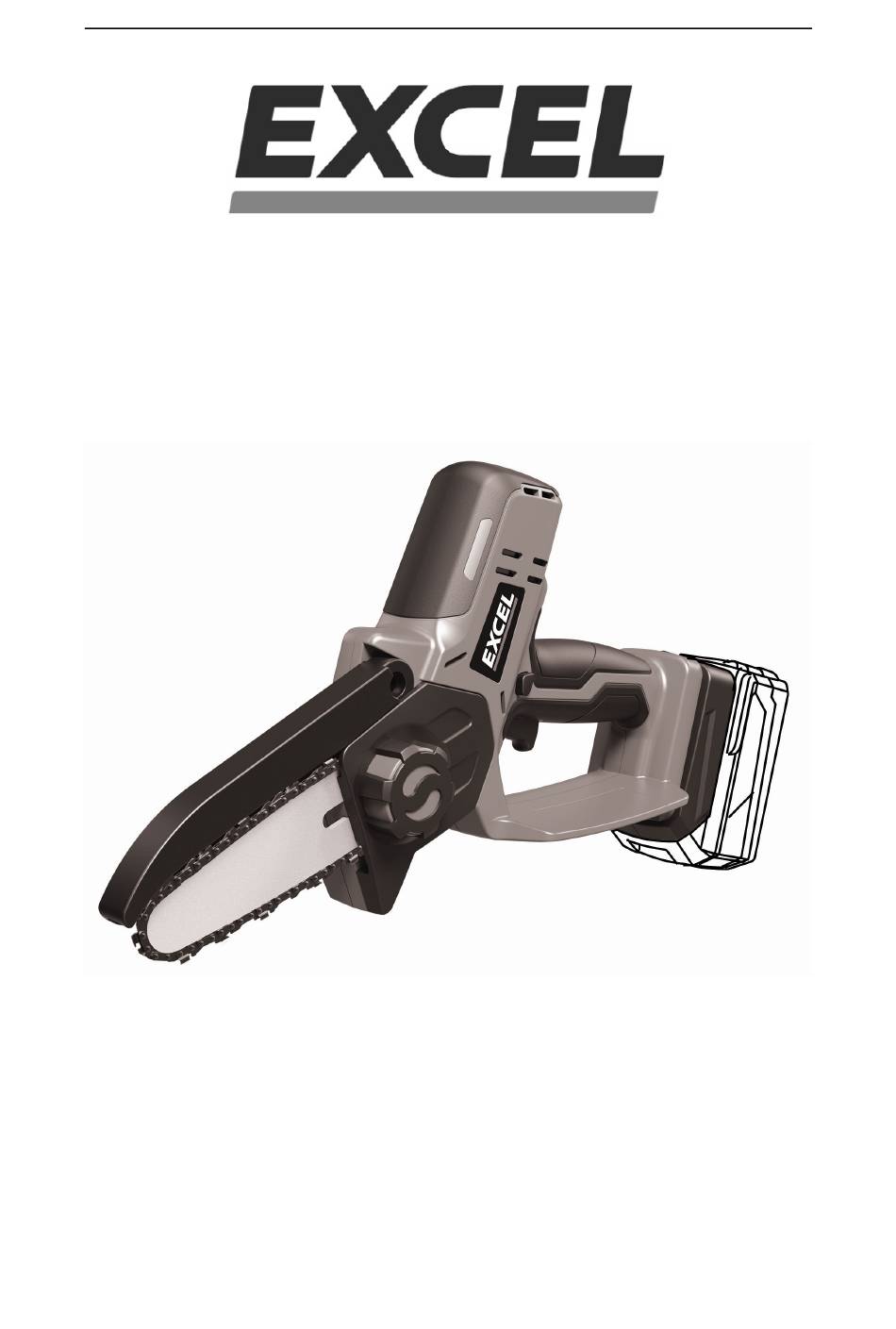

- Page 1 Original Instructions Cordless mini chain saw 18V 30369 INSTRUCTION MANUAL...
-
Page 2: Description Of The Symbols
Original Instructions DESCRIPTION OF THE SYMBOLS WARNING – To reduce the risk of injury, user must read instruction manual. Before any use, refer to the corresponding section in this user manual. Complies with relevant European regulations The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. - Page 3 Original Instructions On adapter Read instruction manual before any use. Class II transformer. For indoor use only. GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
- Page 4 Original Instructions d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
- Page 5 Original Instructions a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Page 6 Original Instructions liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
-
Page 7: Causes And Operator Prevention Of Kickback
Original Instructions Always keep proper footing and operate the chainsaw only when standing on fixed,secure and level surface. Slippery or unstable surfaces such as ladders, may cause a loss of balance or control of the chainsaw. When cutting a limb that is under tension, be alert for spring-back. When the tension in the wood fibers is released the limb under tension may strike the operator and/or throw the chainsaw out of control. -
Page 8: Vibration And Noise Reduction
Original Instructions guide bar up and back toward the operator. If the saw chain is pinched along the top of the guide bar, the guide bar can be driven rapidly back toward the operator. Either of these reactions can cause loss of saw control which can result in serious injury. - Page 9 Original Instructions into contact with your skin: Wash the affected area quickly with soap and water. Flush your eyes with clean water for a minimum of 10 minutes and seek immediate medical attention. Never attempt to open the battery pack for any reason. If the plastic •...
- Page 10 Original Instructions Warning do not recharge non-rechargeable batteries. • The external flexible cable of this transformer cannot be replaced; if the • cord is damaged, discard the transformer Before using the charger, read all the instructions and cautionary markings • on the charger and battery pack as well as the instructions on the battery pack.
-
Page 11: Intended Use
Original Instructions cause electric shock or damage the charger. Unplug the charger from the outlet before cleaning. This reduces the risk of • electric shock. Remove the battery will not reduce this risk. Never charge a battery already fully charged. •... -
Page 12: Noise/Vibration Information
Original Instructions Chain speed 4.8m/s Guide bar length 100mm (4”) Max cutting length 95mm Sound pressure level L =3dB(A)) 78 dB Sound power level L =3dB(A)) 89 dB Level of vibration a (K=1.5m/s 3,425m/s Battery and Charger a)BA-1820B,Li-ion 18V d.c. 2.0Ah Recommended battery b)BA-1850B, Li-ion 18V d.c. - Page 13 Original Instructions patterns avoid vibration risk. Vibration risk limitation suggestions: 1) wear glove during operation 2) limit operating time and shorten trigger time. Before using the equipment Battery charger (Fig.1) The lithium-ion battery can be charged at any time and will not develop a “memory”...
- Page 14 Original Instructions NOTE: Batteries may become warm while charging. This is normal. If the battery is hot after continuous use in the tool, allow it to cool down to room temperature before charging. This will extend the life of your batteries.
- Page 15 Original Instructions Checking the chain brake Run the chain saw then release the switch trigger completely.The saw chain must come to a standstill within one second. WARNING:Hold the chain saw firmly when running the tool to check the brake.The bar and the chain must not be in contact with any object. WARNING:If the saw chain does not stop within one second during this test, stop using the chain saw and consult Customer Service.
-
Page 16: Adjusting Saw Chain Tension
Original Instructions 5.Insert the protrusion on the sprocket cover to the chain saw body,and then close the cover so that the bolt and pins on the chain saw body meet their counterparts on the cover. (1)Tighten the knob to secure the sprocket cover, and then loosen it slightly for tension adjustment.Do not fully tighten the bar retaining knob until the chain tension has been adjusted. -
Page 17: Lubricating The Chain
Original Instructions (3)Lift-up the guide bar tip slightly and adjust the chain tension.Turn the adjusting screw clockwise to tighten,turn it counterclockwise to loosen.Tighten the saw chain until the lower side of the saw chain fits in the guide bar rail as illustrated,or until the chain can be lifted off the guide bar and the drivelink is within the rail of the guide bar. - Page 18 Original Instructions NOTE:Do not cover the vents of the tool. PRUNING TREES Bring the pruning saw body into contact with the branch to be cut before switching on.Otherwise, it may cause the guide bar to wobble, resulting in injury to operator.Saw the wood to be cut by just moving it down by using the weight of the pruning saw.
- Page 19 Original Instructions (1) With the saw chain running, saw into the wood. (2) Apply light pressure to the top of the machine, continue cutting, and loosen the saw slightly. NOTE:When making several cuts, switch the chain saw off between cuts. WARNING:If the upper edge of the bar is used for cutting, the pruning saw may be deflected in your direction if the chain becomes trapped.
- Page 20 Original Instructions susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean clothes to remove dirt, carbon dust, etc. Storing Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.
